120/100/80W Adjustable LED Wall Pack, 3CCT, Photocell, 0-10V Dimmable
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
- Lumens:
- 16,800 lm max
- Wattage:
- 120W / 100W / 80W
- Voltage:
- AC120-277V
- Dimming:
- 0-10V
- Location:
- Wet Location
- Warranty:
- 5-Year
Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
Specifications
Downloads

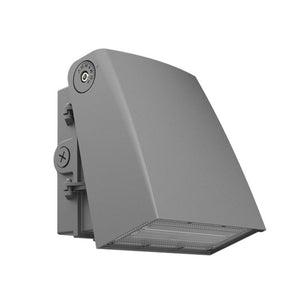

Adjustable LED Wall Pack with Selectable Output

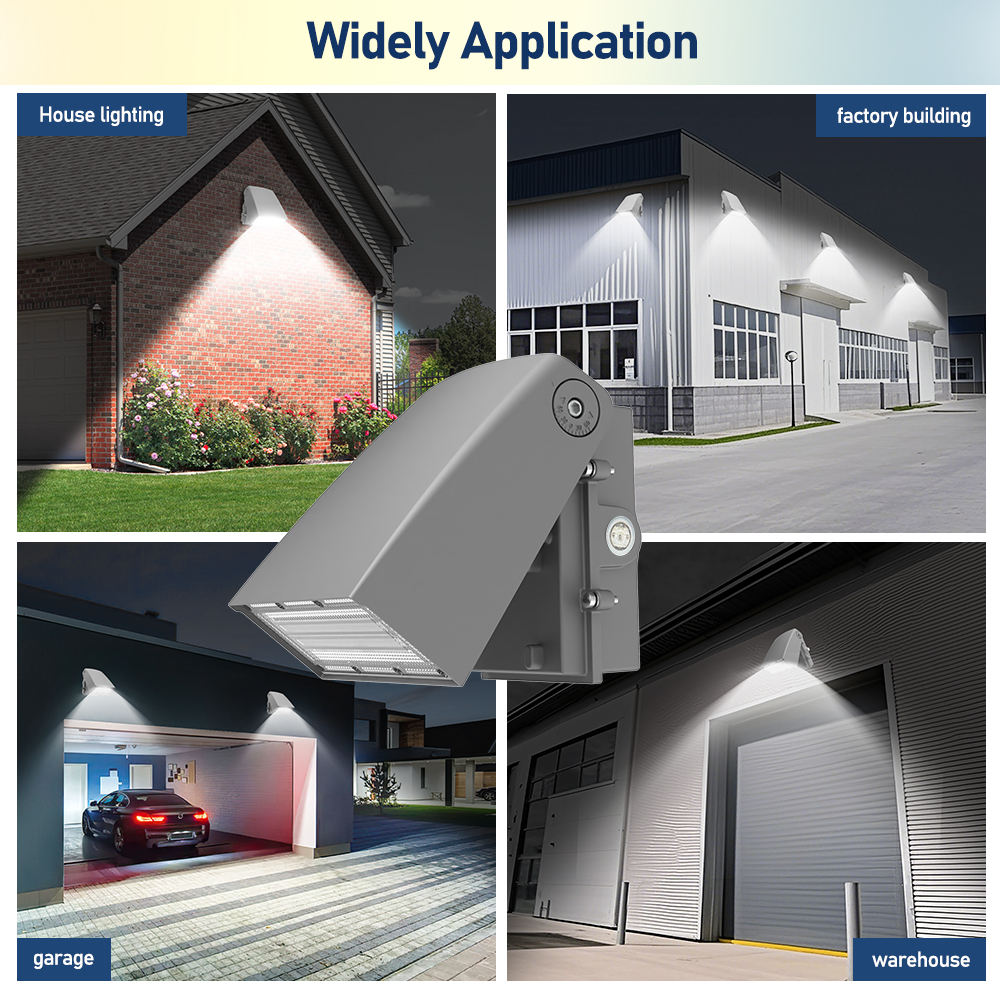

This adjustable commercial LED wall pack provides selectable 120W, 100W and 80W operation with up to 16,800 lumens. A 0-90° adjustable light head helps direct illumination toward entrances, walkways, façades and perimeter areas where a fixed wall pack may not provide the preferred aiming.

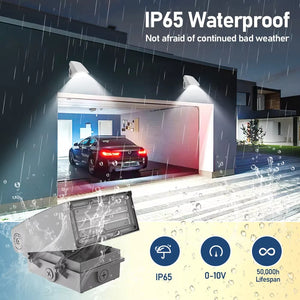

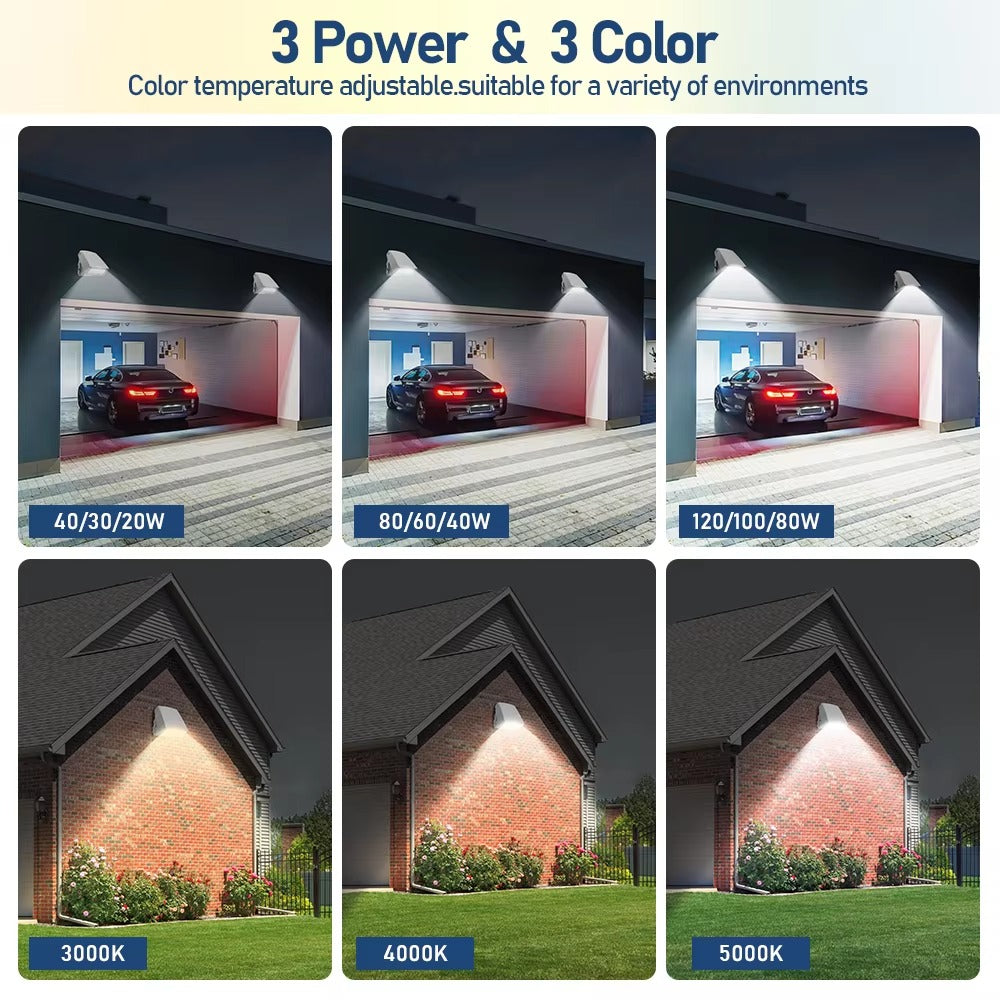

Three selectable color temperatures, a built-in photocell and 0-10V dimming support flexible project control. The IP65 die-cast construction and UV-resistant polycarbonate lens are designed for wet-location commercial installations.
Adjustable Aiming and Field Selection
Set the head angle, wattage and color temperature for the specific façade, walkway or perimeter zone. The field-selectable platform helps a single fixture family cover multiple project conditions.
Installation and Control
Wall and Junction-Box Mounting

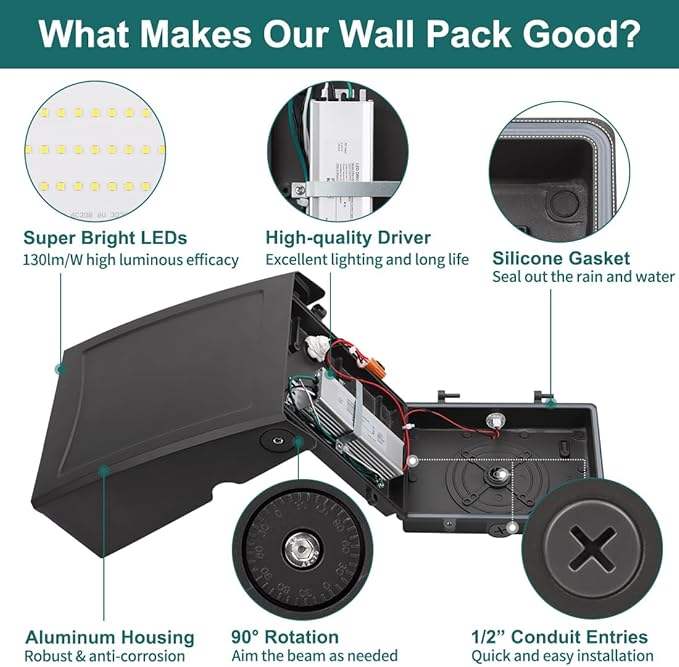

The mounting base attaches over a compatible embedded junction box. A foam gasket and exterior sealing help protect the wall interface.
Automatic and Dimmable Operation

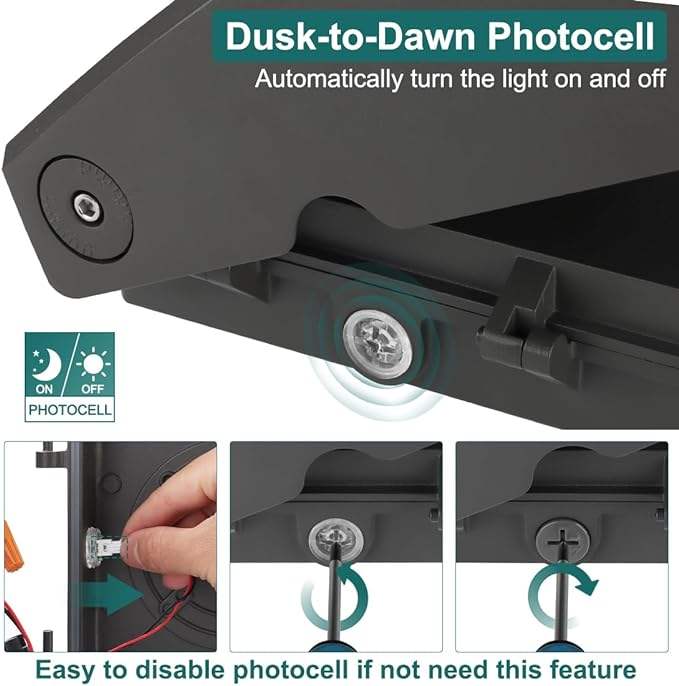

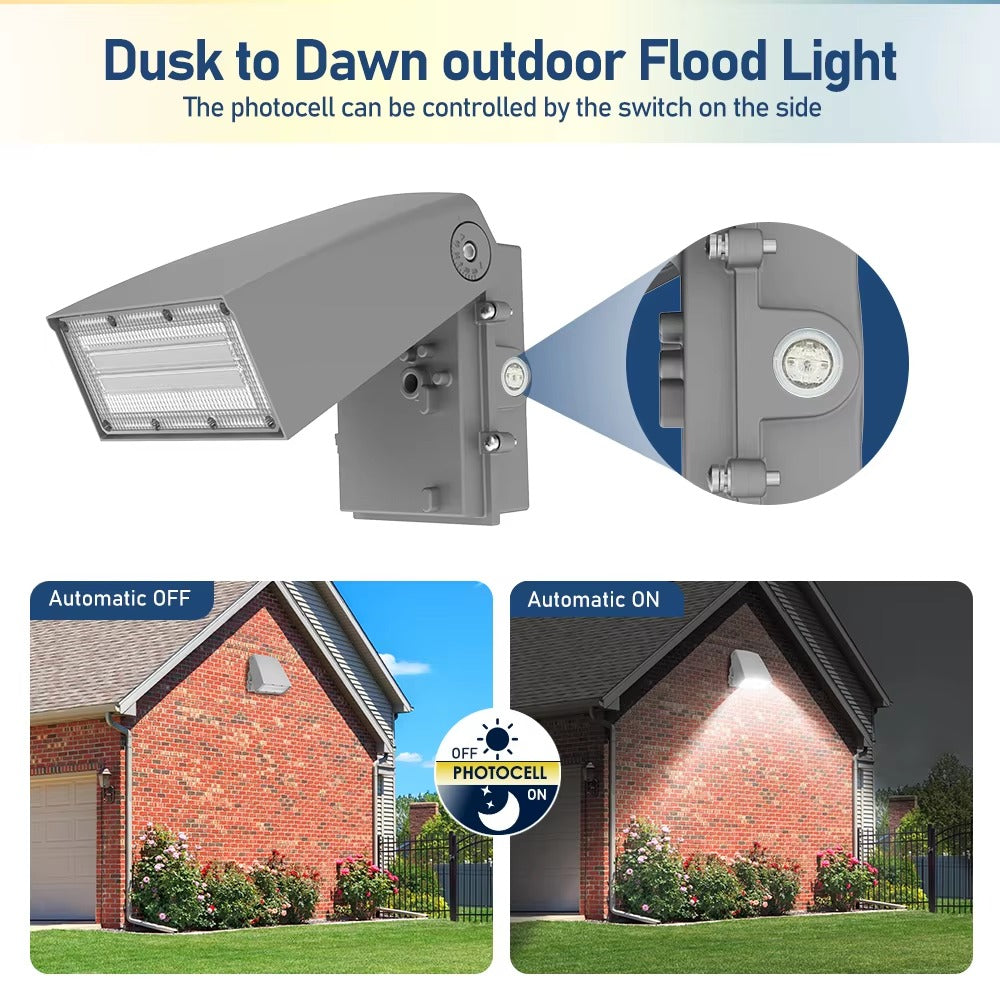

The built-in photocell supports dusk-to-dawn operation, and the fixture accepts compatible 0-10V dimming control.
Project-Ready Features

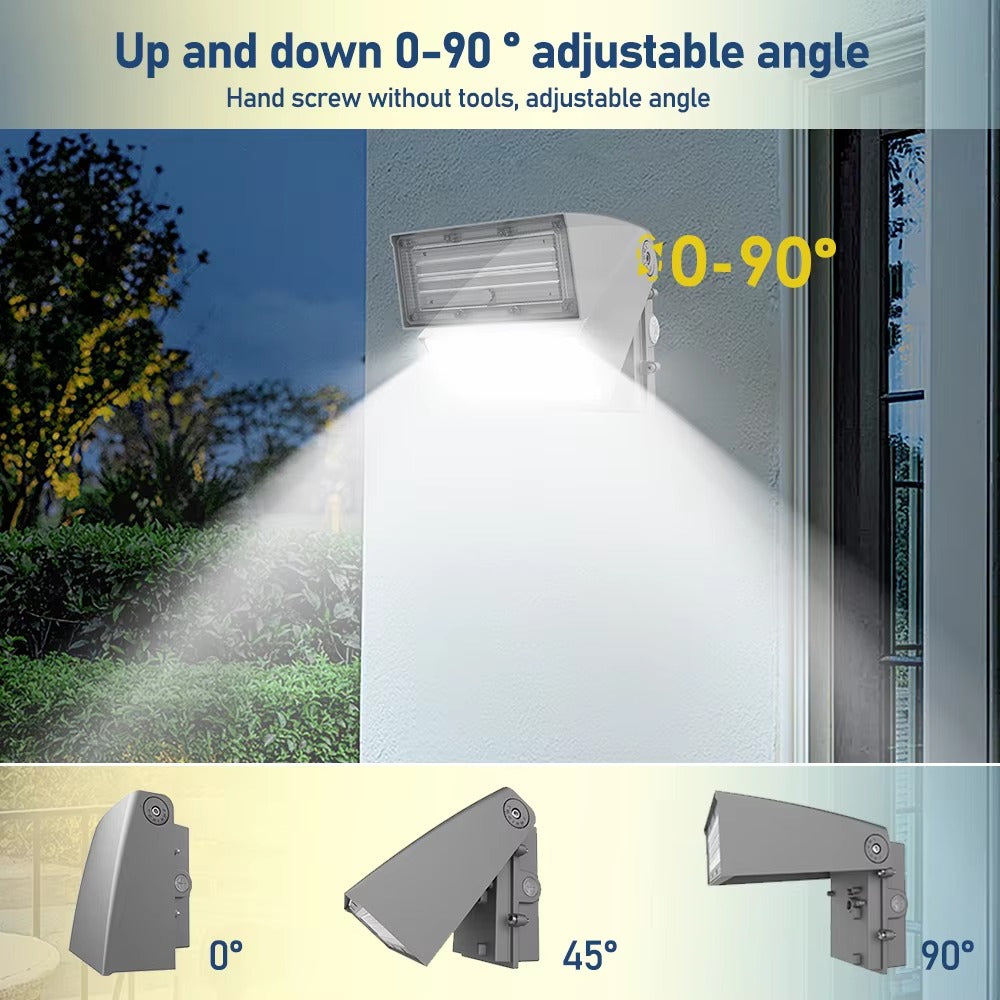

- Directional flexibility: Adjustable from 0° to 90°.
- Selectable output: 120W, 100W and 80W settings.
- Wet-location use: IP65 construction for exposed commercial sites.
- Service planning: More than 50,000 hours rated life and 5-year limited warranty.
Fit and Compatibility
Fixture Size
Approximate dimensions are 10.73 × 10.51 × 6.46 inches.
Electrical Requirements
Designed for 120-277V AC and compatible 0-10V controls.
