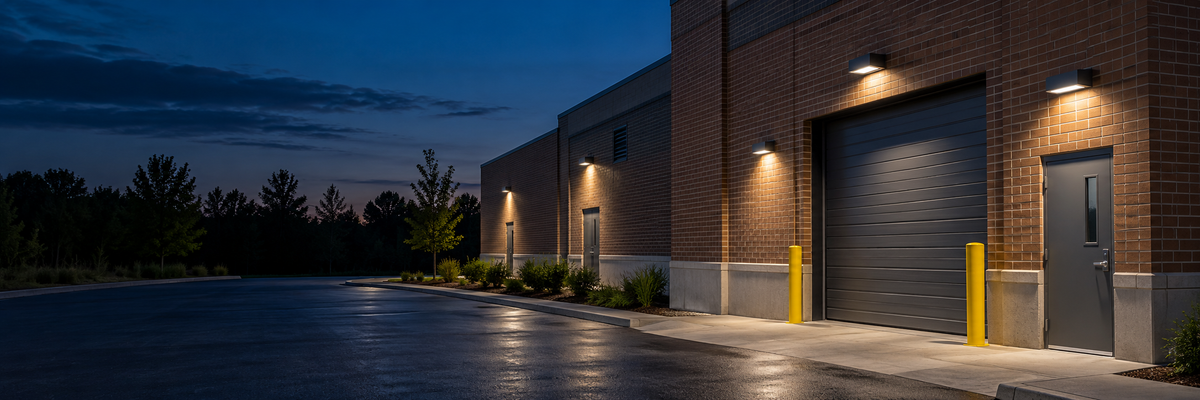

Application illustration
SELECTION & PROJECT PLANNING
Compare the illustrated differences below, then confirm the selected model and site requirements before ordering.

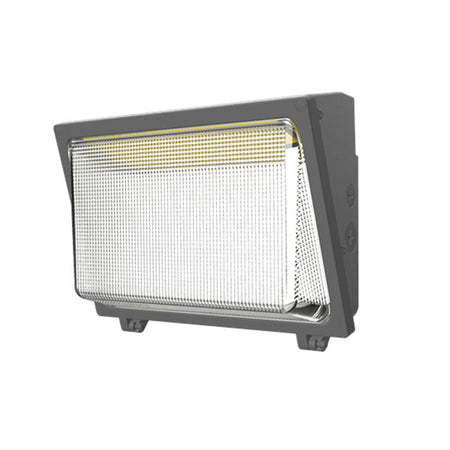

Traditional

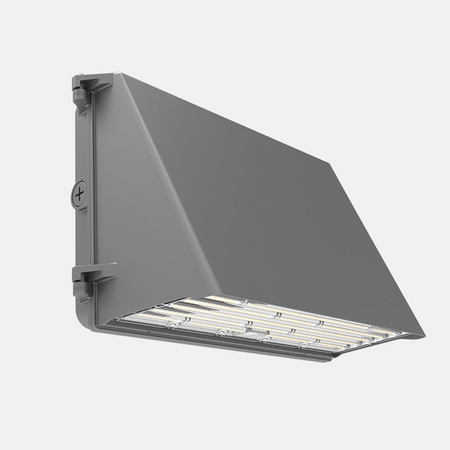

Full Cutoff

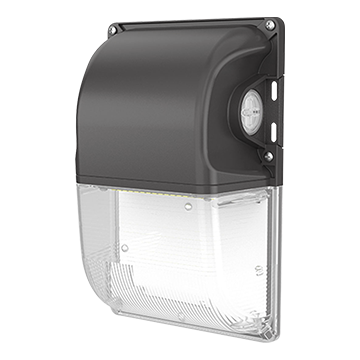

Mini01
02
BEFORE YOU ORDER
Confirm model-specific requirements before ordering.
Compare traditional, adjustable, mini and full-cutoff designs against the wall location and the area that needs illumination. Verify the actual optical distribution and dimensions on the model specification.
It directs the fixture output downward to help manage upward light. A suitable layout still needs to consider glare, mounting height, property boundaries and local requirements.

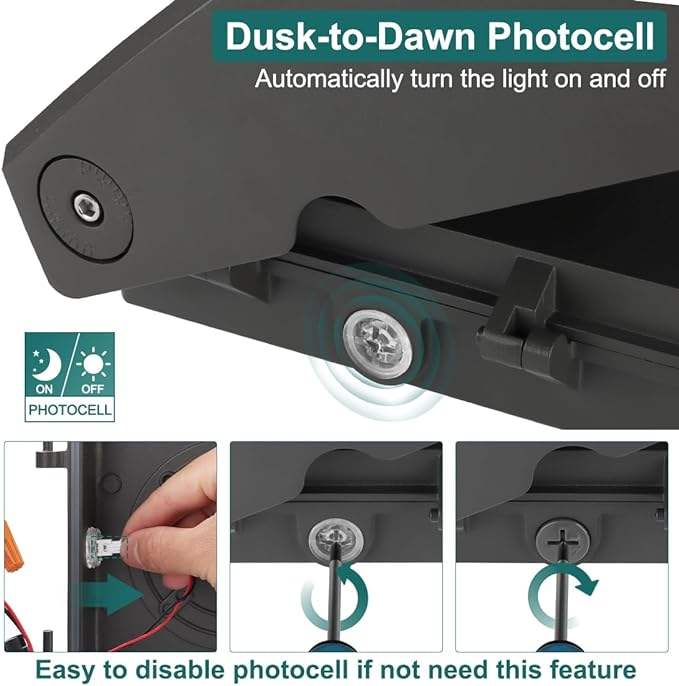

Check the exact product configuration and included components. Do not assume a separate sensor is needed, or that every wall pack has the same control arrangement.
No. An emergency-ready fixture should not be treated as a complete battery-backup system unless its listing explicitly includes the emergency driver or battery. Confirm the required compatible components.
Record mounting heights, entrances, walkways and the intended coverage area. Use the selected model and output setting in a lighting layout rather than applying one spacing rule to every wall.
SELECTION & PLANNING
Wall packs need to illuminate the required ground area while fitting the building and controlling glare. A compact housing, an adjustable design and a...
Read guide
APPLICATION & DESIGN
Exterior lighting should help people see entrances and routes while managing light outside the intended area. Identify the task and viewing directions before choosing...
Read guide
PROJECT DETAILS

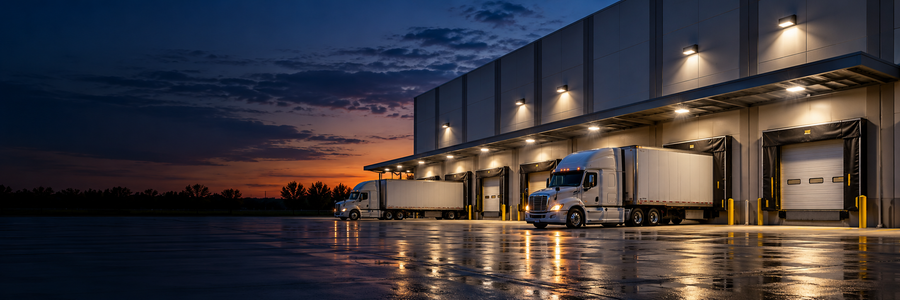

Loading areas combine vehicle movement, dock work and pedestrian circulation. The building-mounted fixtures and the open yard may require different arrangements.
Read guide
FURTHER READING
A control plan needs the fixture driver protocol, the physical wiring arrangement and the desired behavior of each zone. Specify all three before choosing...
