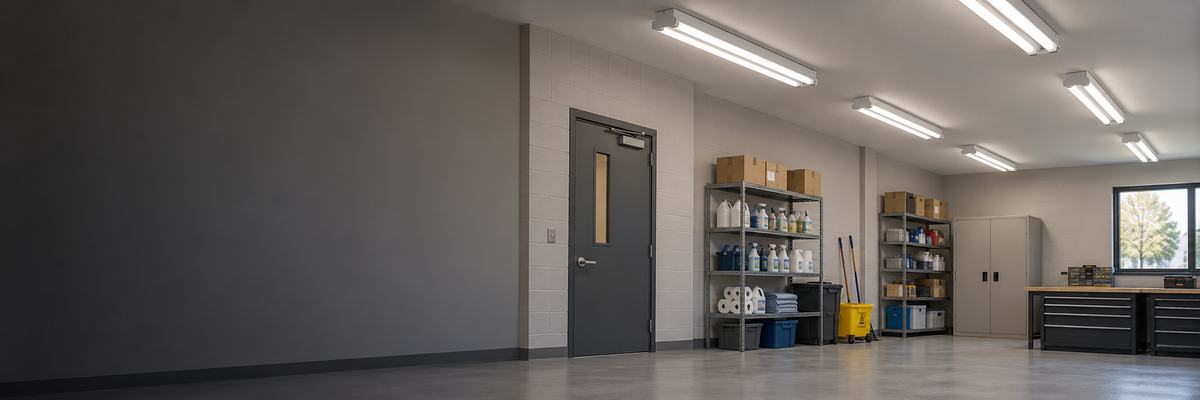

Conceptual commercial LED T8 tube application illustrationApplication illustration

LUMVOLED / LIGHTING COLLECTIONS

Commercial LED Tube Lights

Compare Type A+B LED T8 tubes in 2FT, 3FT, 4FT and 8FT lengths for commercial fluorescent retrofit projects. Verify fixture dimensions, ballast compatibility and the approved installation method before selecting a model.

Heading

Sed egestas, ante et vulputate volutpat, eros pede semper est, vitae luctus metus libero eu augue

Men Women

LED Tube Lights for Commercial Retrofits | LumvoLED

Filter

Sort by

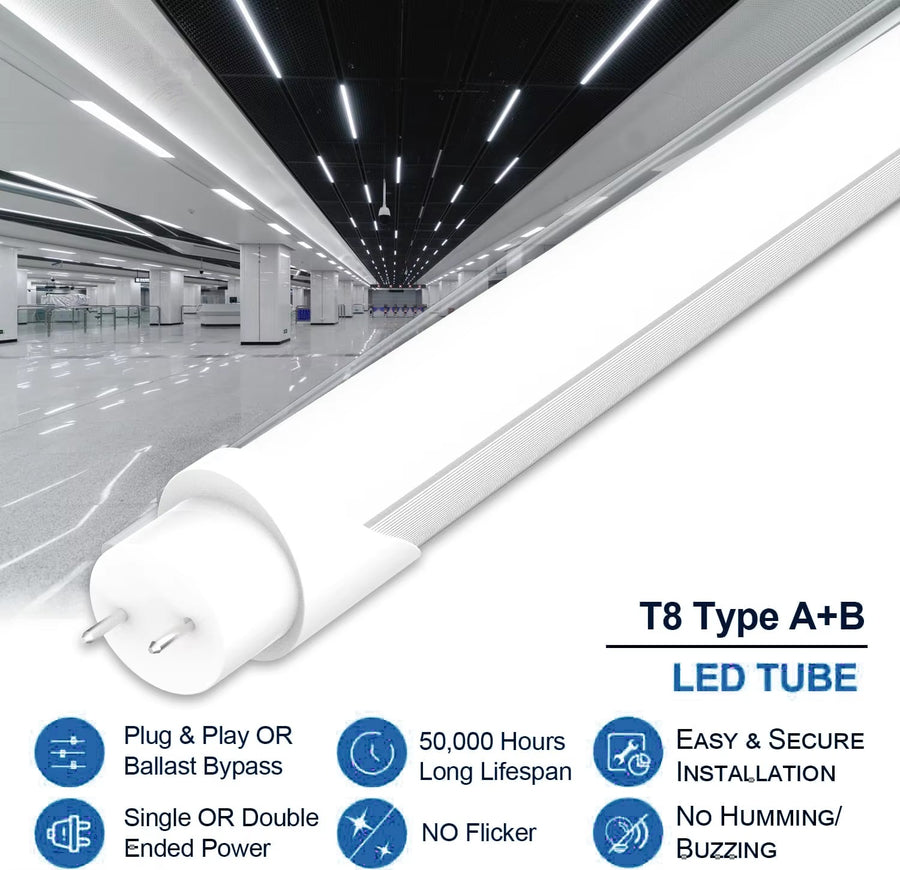

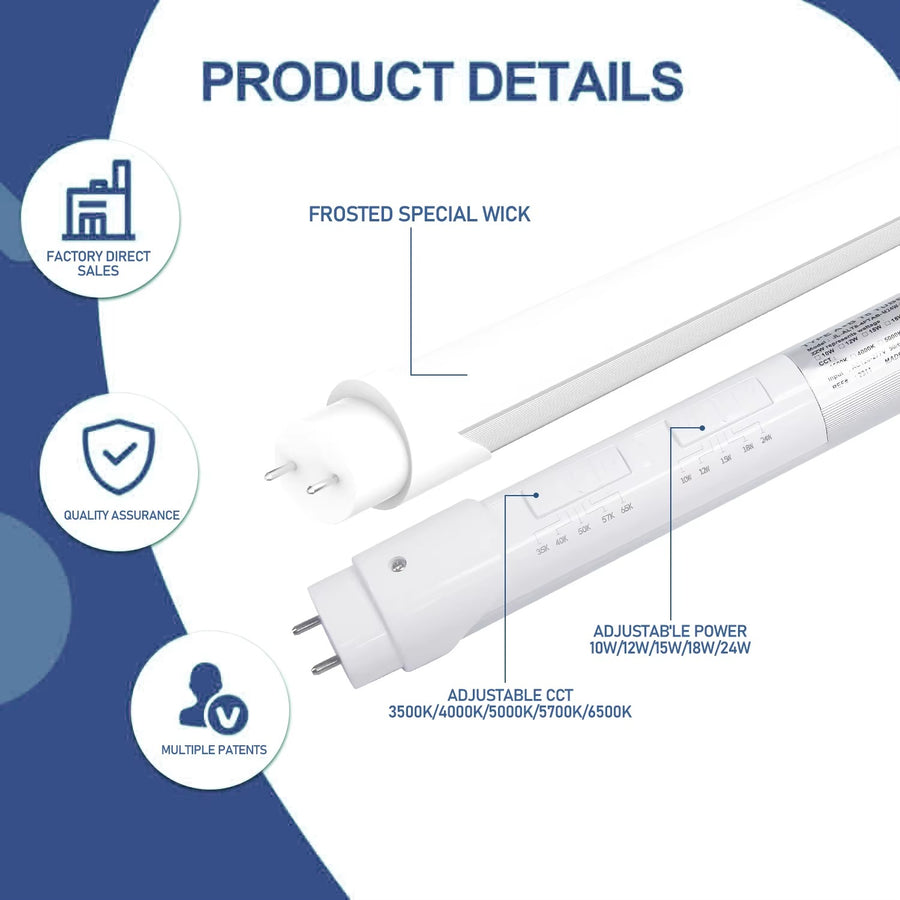

4FT Type A+B LED T8 tube light with 5CCT and selectable wattage4FT Type A+B LED T8 tube light product overview
30 Pack ETL Listed DLC Premium FCC Compliant 5-Year
Add to Compare

4FT LED T8 Tube Light, 24W Max, Type A+B, 5CCT Selectable

SKU: SS-T8-TAB-24W-4FT-30PACK-FR
Wattage:
10W, 12W, 15W, 18W, 24W
Lumens:
3619 lm Max
Voltage:
120–277V
CCT:
3500K, 4000K, 5000K, 5700K, 6500K
Warranty:
5-Year
Efficacy:
130 lm/W
Cover:
Pack Size:
Regular price $253.00 Sale price$195.60
Save 23%
8FT Type A+B LED T8 tube light with 5CCT and selectable wattage8FT Type A+B LED T8 tube light product overview
20 Pack ETL Listed DLC Premium FCC Compliant 5-Year
Add to Compare

8FT LED T8 Tube Light, 48W Max, Type A+B, 5CCT Selectable

SKU: SS-T8-TAB-48W-8FT-20PACK-FR
Wattage:
24W, 30W, 36W, 42W, 48W
Lumens:
7219 lm Max
Voltage:
120–277V
CCT:
3500K, 4000K, 5000K, 5700K, 6500K
Warranty:
5-Year
Efficacy:
130 lm/W
Cover:
Pack Size:
Regular price $450.00 Sale price$399.80
Save 11%
2FT Type A+B LED T8 tube light with 5CCT and selectable wattage2FT Type A+B LED T8 tube light product overview
30 Pack ETL Listed DLC Premium FCC Compliant 5-Year
Add to Compare

2FT LED T8 Tube Light, 10W Max, Type A+B, 5CCT Selectable

SKU: SS-T8-TAB-10W-2FT-30PACK-FR
Wattage:
5W, 6W, 8W, 9W, 10W
Lumens:
1516 lm Max
Voltage:
120–277V
CCT:
3500K, 4000K, 5000K, 5700K, 6500K
Warranty:
5-Year
Efficacy:
130 lm/W
Cover:
Pack Size:
Regular price $230.00 Sale price$189.60
Save 18%
3FT Type A+B LED T8 tube light with 5CCT and selectable wattage3FT Type A+B LED T8 tube light product overview
30 Pack ETL Listed DLC Premium FCC Compliant 5-Year
Add to Compare

3FT LED T8 Tube Light, 16W Max, Type A+B, 5CCT Selectable

SKU: SS-T8-TAB-16W-3FT-30PACK-FR
Wattage:
6W, 8W, 10W, 12W, 16W
Lumens:
2429 lm Max
Voltage:
120–277V
CCT:
3500K, 4000K, 5000K, 5700K, 6500K
Warranty:
5-Year
Efficacy:
130 lm/W
Cover:
Pack Size:
Regular price $253.00 Sale price$192.60
Save 24%

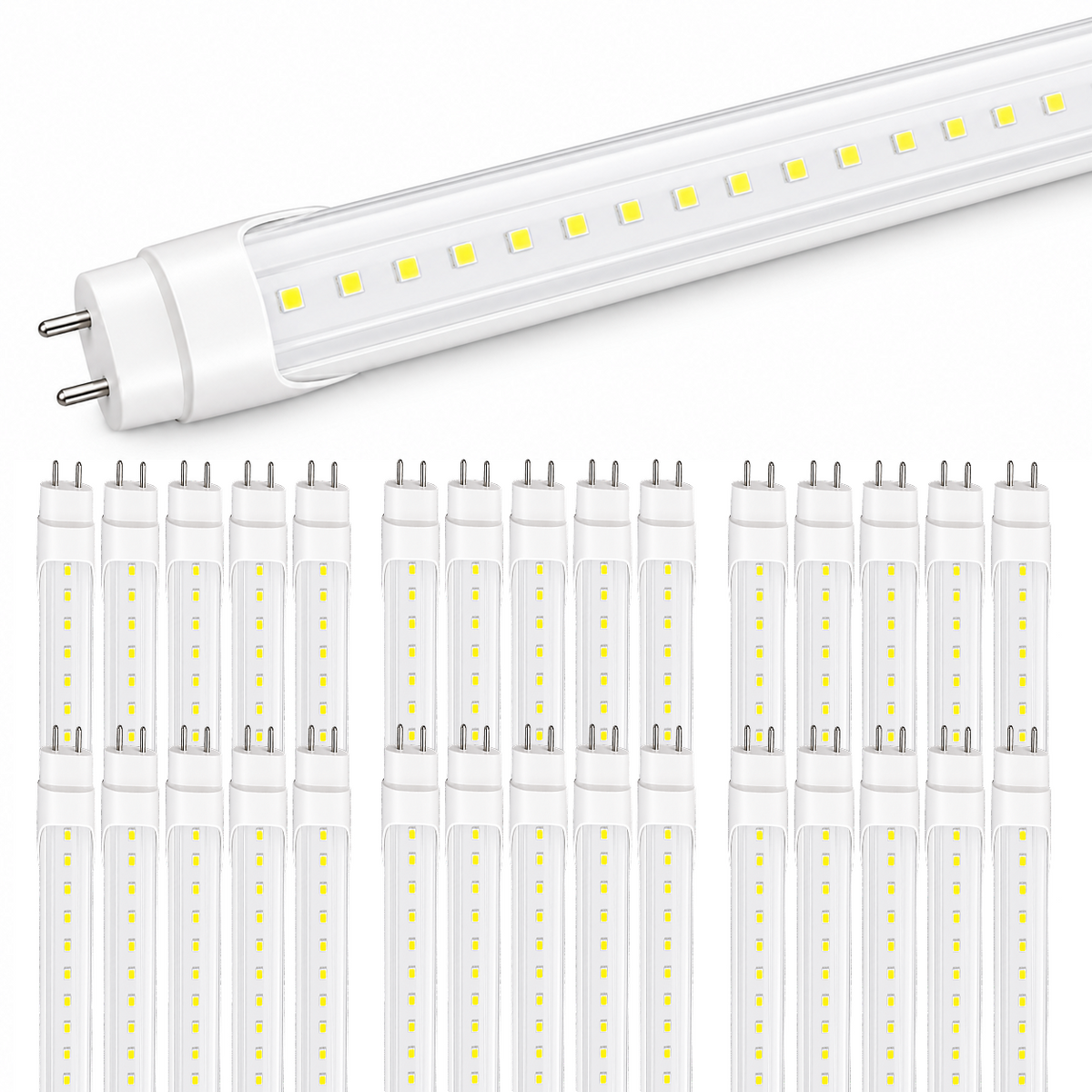

30 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends4 foot LED T8 tube feature graphic showing construction and certifications
30 Pack ETL Listed DLC Premium 5‑Year Warranty CE Compliant
Add to Compare

4FT Type A+B LED T8 Tube, 22W Max, 5CCT Selectable

SKU: SS-T8-FAB-22W-TCP-4FT-30PK
Wattage:
22W, 18W, 15W, 12W, 10W
Voltage:
120-277V AC
CCT:
3500K, 4000K, 5000K, 5700K, 6500K
Warranty:
5-Year
Size:
4 ft
Mounting:
G13 bi-pin
Pack Size:
Sale price$214.99

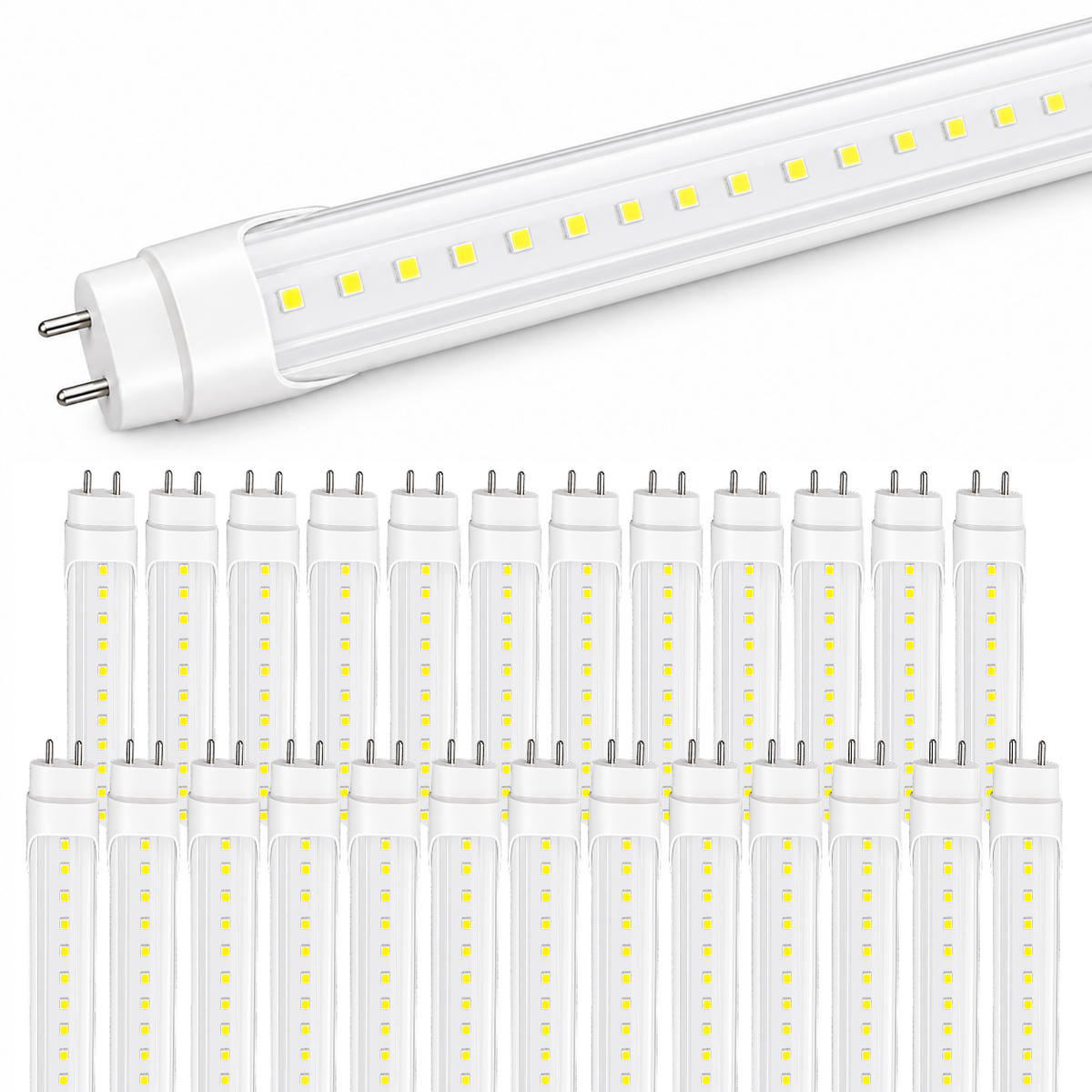

25 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends4 foot LED T8 tube feature graphic showing construction and certifications
25 Pack ETL Listed DLC Premium 5‑Year Warranty CE Compliant
Add to Compare

4FT Type A+B LED T8 Tube, 24W Max, 6CCT Selectable

SKU: EDI-T84F24-AB-XXKG1-25PK
Wattage:
24W, 18W, 15W, 12W, 10W
Lumens:
3,120 lm max
Voltage:
120-277V AC
CCT:
3000K, 3500K, 4000K, 5000K, 5700K, 6500K
Warranty:
5-Year
Efficacy:
130 lm/W
Pack Size:
Sale price$184.99

RETROFIT SELECTION

Choose the right LED T8 tube for your existing fixture

Compare length first, then decide which approved retrofit path matches the existing equipment.

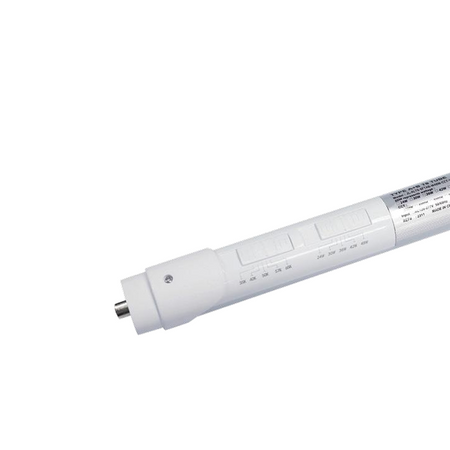

2FT LED T8 Tube Light, 10W Max, Type A+B, 5CCT Selectable2FT
3FT LED T8 Tube Light, 16W Max, Type A+B, 5CCT Selectable3FT

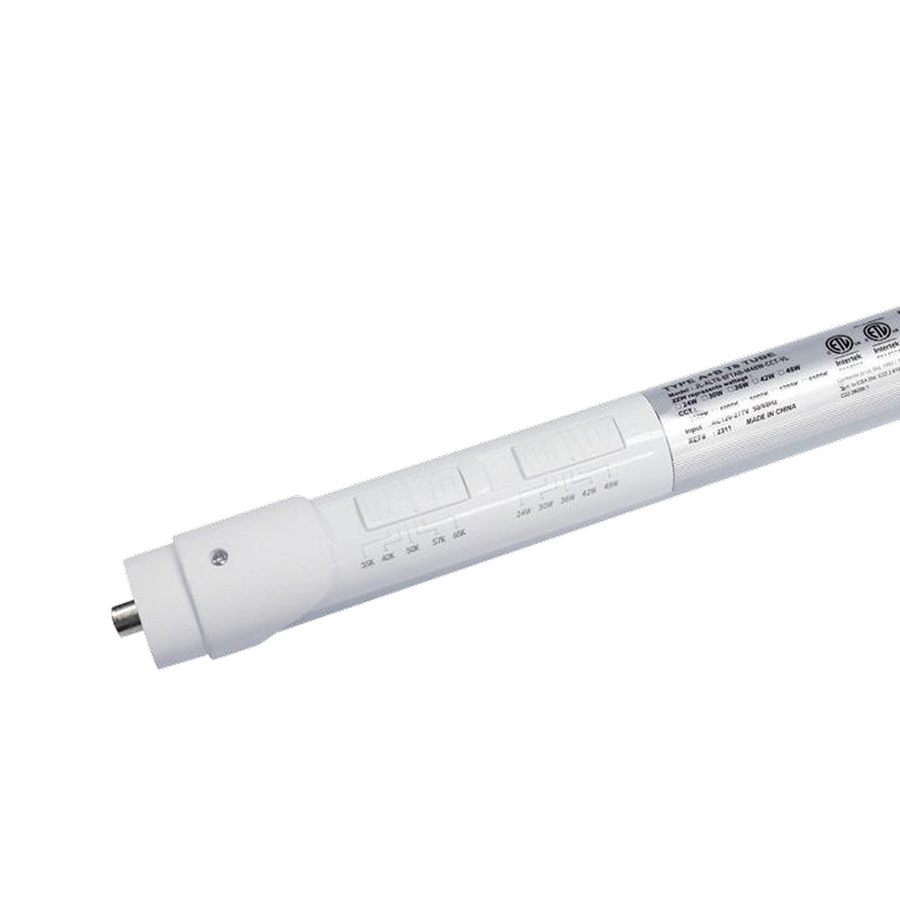

4FT LED T8 Tube Light, 24W Max, Type A+B, 5CCT Selectable4FT

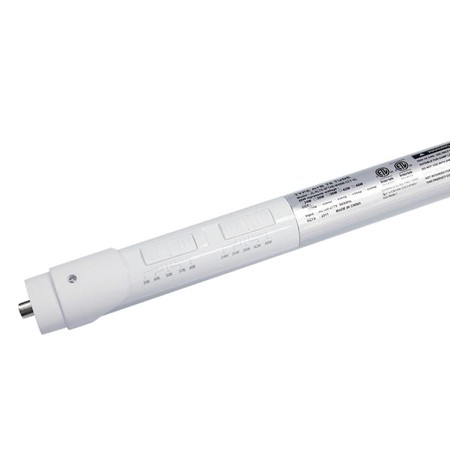

8FT LED T8 Tube Light, 48W Max, Type A+B, 5CCT Selectable8FT
Actual 2FT, 3FT, 4FT and 8FT product examples. Compare exact dimensions and lampholders.

01

Start with the existing tube length

  • The current range has six Type A+B T8 models across four nominal lengths.
  • Several 4FT models differ in wattage, CCT range and pack quantity; length alone does not identify the correct SKU.
  • Check the lamp base, fixture length and selected product dimensions.
Type A: compatible ballastType B: ballast bypass
Conceptual comparison only. This is not a wiring diagram or a compatibility approval.

02

One tube family, two retrofit paths

  • Type A: retain only a ballast listed as compatible with the selected tube. Record its exact manufacturer and model.
  • Type B: the ballast is bypassed according to the selected tube’s approved installation instructions. Confirm lampholders, input voltage and permitted power arrangement.
  • Have the installer confirm the method before ordering; Type A+B does not mean every existing fluorescent fixture is compatible.

BEFORE YOU ORDER

LED tube retrofit questions

Confirm the exact tube model and installation instructions before ordering.

Which lengths are available?

The current collection includes nominal 2FT, 3FT, 4FT and 8FT LED T8 tubes. Compare exact tube dimensions and the existing lampholders, not only the length label.

What does Type A+B mean?

The current models are described as supporting a compatible-ballast Type A path and a ballast-bypass Type B path. This does not establish compatibility with every ballast or fluorescent fixture.

Can I keep my existing ballast?

For Type A operation, verify the exact ballast manufacturer and model against the selected tube’s compatibility documentation. If it is not confirmed compatible, do not assume plug-and-play operation.

Is Type B installation a simple lamp swap?

No. Ballast-bypass installation changes the fixture’s electrical arrangement. A qualified installer should follow the selected tube’s instructions and verify voltage, lampholders and the permitted power arrangement.

How do the 4FT models differ?

Compare the selected SKU’s maximum and selectable wattages, CCT range, cover options and pack quantity. The current range includes 5CCT and 6CCT 4FT models; features and cartons vary.

How should I calculate the order quantity?

Count lamps per fixture and fixtures per area, then add the required maintenance stock. Convert individual tube quantities to the pack size of the selected variant; pack size is not the same across every model.
