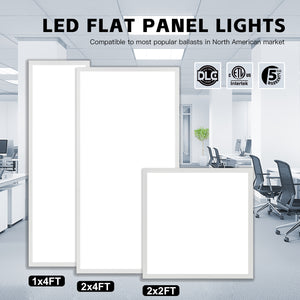

LED flat panel lights in multiple ceiling sizes shown in an office

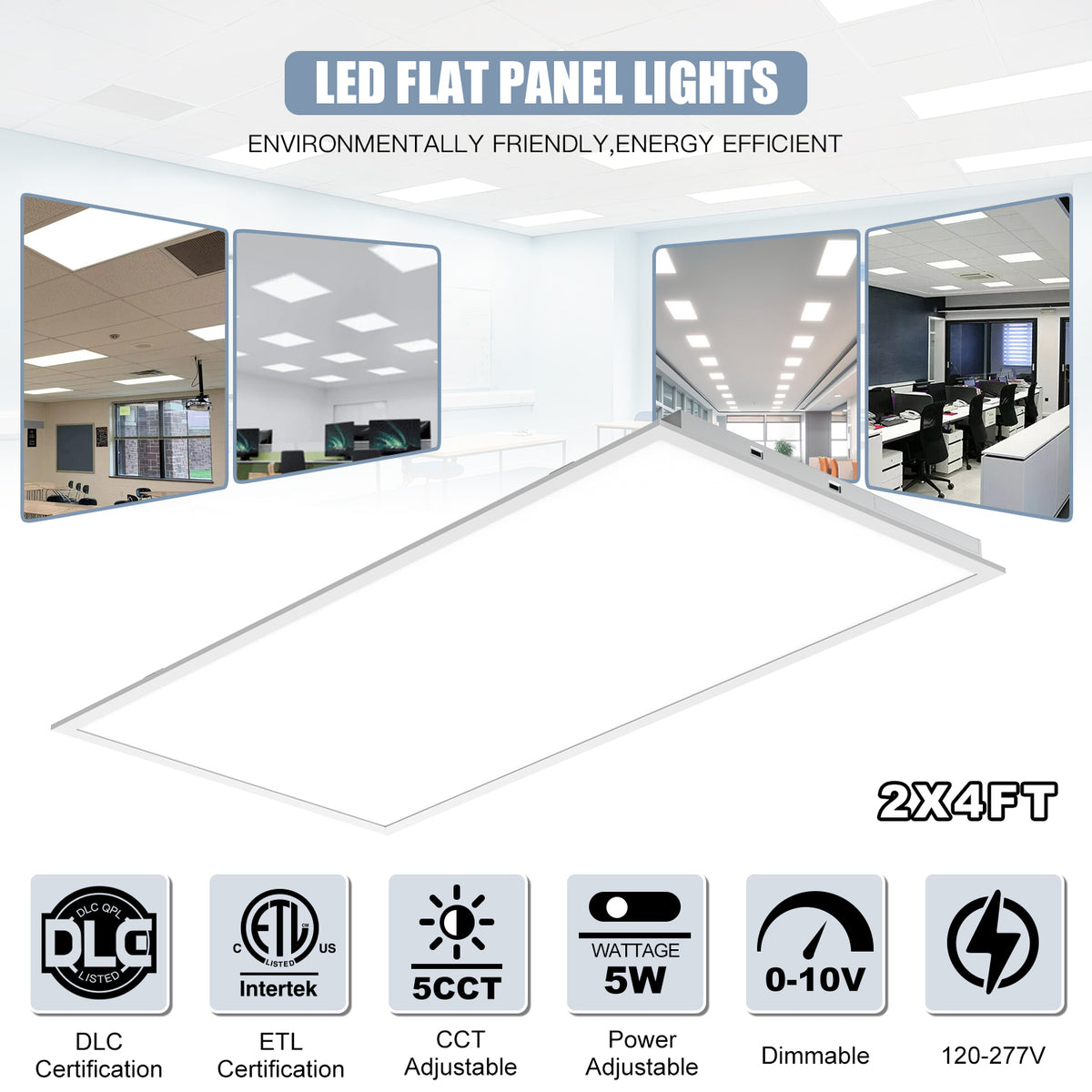

LED flat panel lights installed in commercial ceiling applications

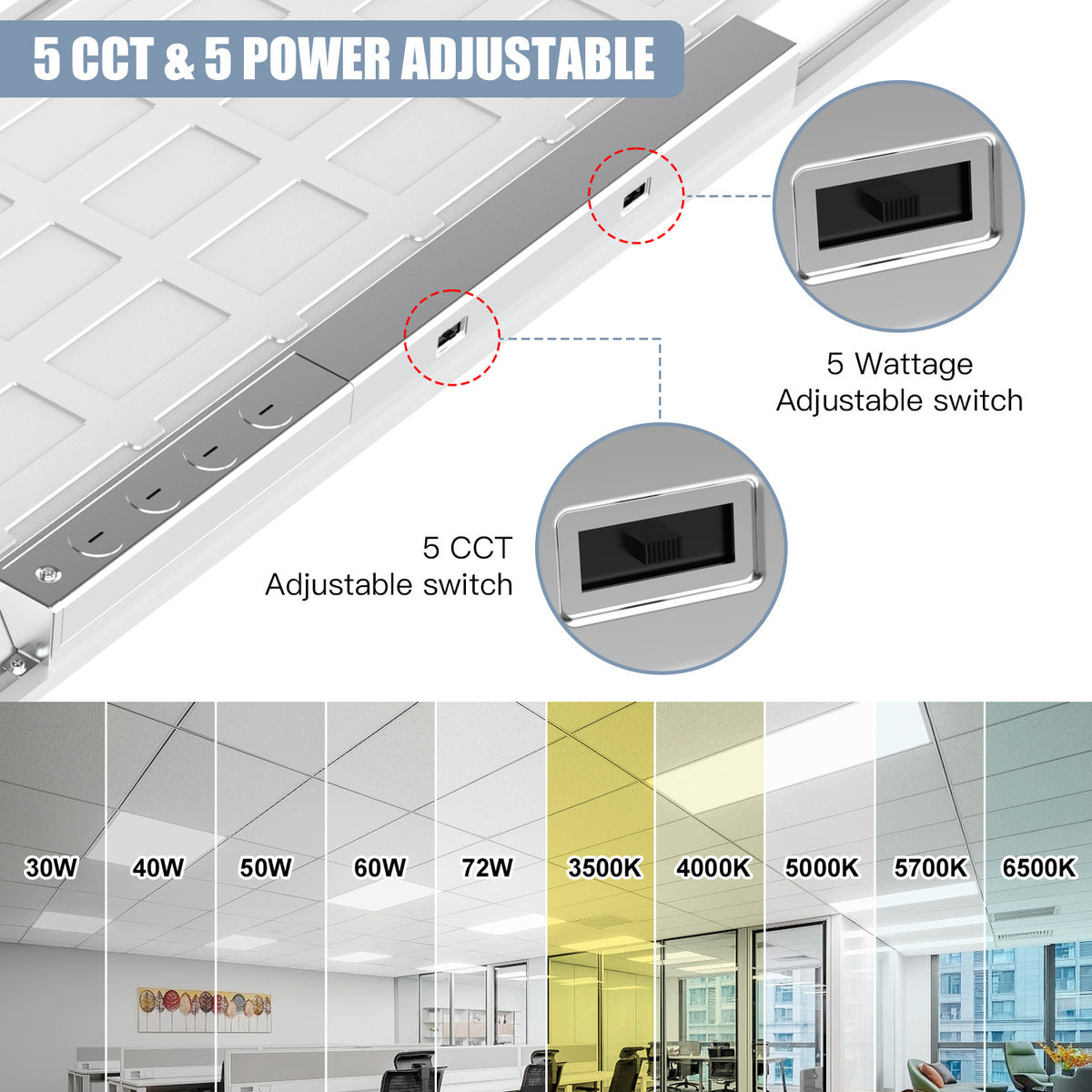

LED flat panel wattage and color temperature selection switches

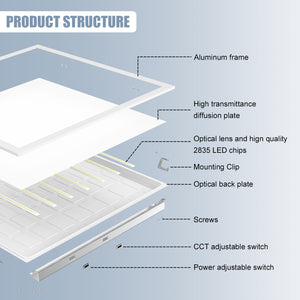

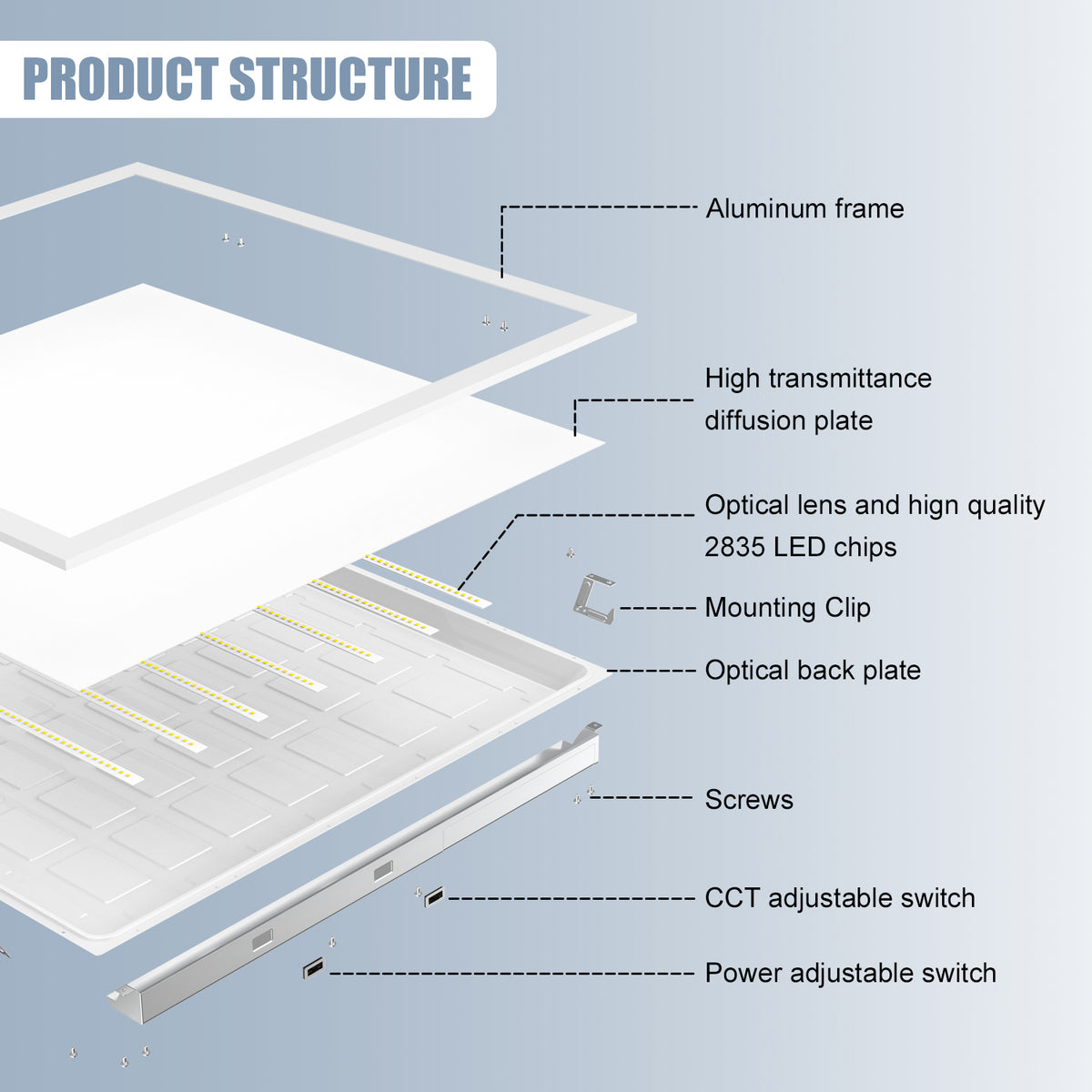

Exploded view of LED flat panel frame, diffuser and internal components

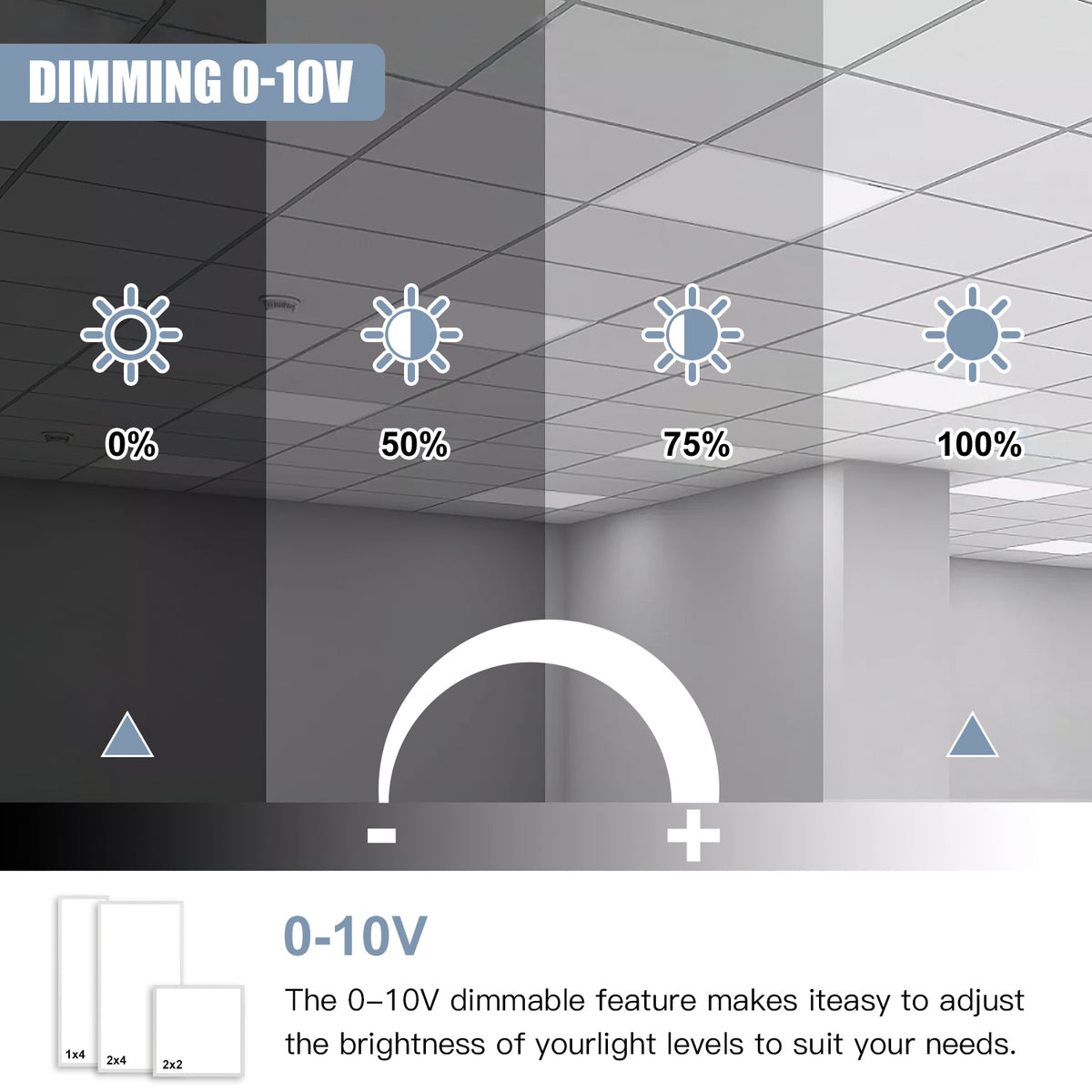

0-10V dimming levels illustrated for LED flat panel ceiling lights
LED flat panel specifications graphic with an office ceiling installation

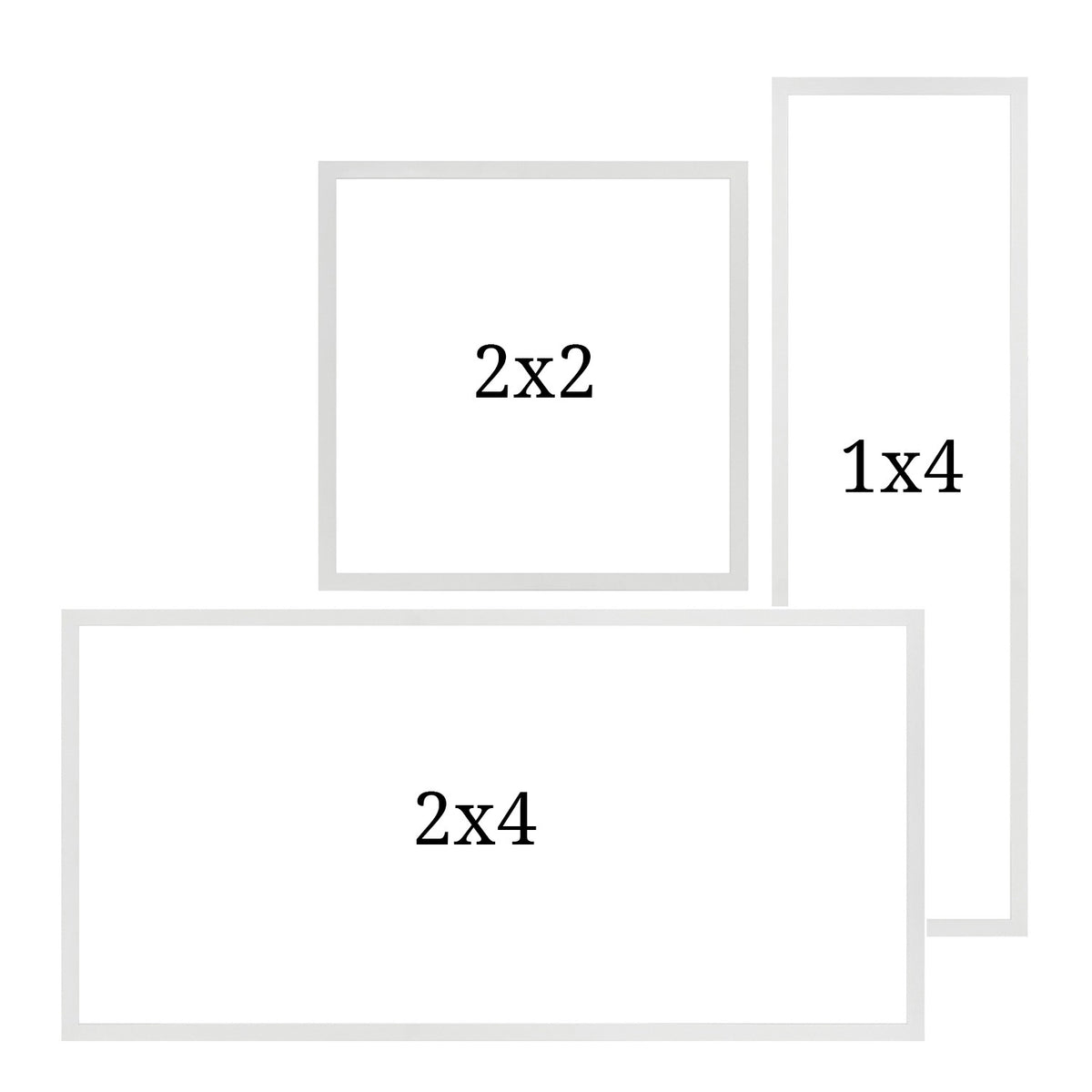

Comparison of 2 by 2, 1 by 4 and 2 by 4 foot panel outlines
 1 of 8

2x2 LED Flat Panel Light, 40W Max, 5CCT, 0-10V Dimmable

SKU: NG-FPN22-40W4-25KCD-Z-4PK
Sale price $189.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
5,200 lm max
Wattage:
40W / 35W / 30W / 25W / 20W
Voltage:
100-277V AC
Dimming:
0-10V
Warranty:
5-Year
LED Flat Panel Light NGT: 2x2 40W
Four 2 by 2 foot LED flat panel lights on a white background LED flat panel lights in multiple ceiling sizes shown in an office
2x2 40W
2x2 40W
Four 2 by 4 foot LED flat panel lights on a white background LED flat panel lights in multiple ceiling sizes shown in an office
2x4 72W 5700K
2x4 72W 5700K
Four 2 by 4 foot LED flat panel lights on a white background LED flat panel lights in multiple ceiling sizes shown in an office
2x4 72W 6500K
2x4 72W 6500K
Pack Size: 4-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
2x2 LED Flat Panel Light, 40W Max, 5CCT, 0-10V Dimmable
2x2 LED Flat Panel Light, 40W Max, 5CCT, 0-10V Dimmable 4-Pack
Total for selected quantity Sale price $189.99
0

Specifications

Lumens 5,200 lm max
Efficacy 130 lm/W
Wattage 40W, 35W, 30W, 25W, 20W
Voltage 100-277V AC
Dimming 0-10V
Color Temperature 2700K, 3500K, 4000K, 5000K, 5700K
Mounting Type Recessed T-grid ceiling
Product Dimensions 603 × 603 × 30 mm
Certifications ETL Listed DLC Premium 5‑Year Warranty CE Compliant
Rated Life 50,000 hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
ballast compatibility Not applicable
wire connection Hardwired driver

Downloads

Download Spec Sheet

Standardize office, school, retail and healthcare ceiling projects with one versatile 2x2 LED flat panel. Five selectable wattages from 20W to 40W let installers tune output without ordering a separate fixture for every room type.

Five color temperature settings from 2700K to 5700K help match warm customer areas, neutral workspaces and bright task environments. Up to 5,200 lumens, 130 lm/W efficacy and 0-10V dimming support efficient commercial lighting plans.

Commercial Lighting Flexibility

Five wattage settings

Select 40W, 35W, 30W, 25W or 20W during installation.

Five CCT settings

Choose 2700K, 3500K, 4000K, 5000K or 5700K.

0-10V dimming

Integrate with a compatible 0-10V control system for adjustable light levels.

High-efficiency output

Delivers up to 5,200 lumens at a published efficacy of 130 lm/W.

Selectable Output and Color

Choose from 40W, 35W, 30W, 25W, 20W and match the space with the required color temperature.

2700K3500K4000K5000K5700K

Installation and Performance

  • Sized for nominal 2x2 commercial ceiling-grid applications.
  • Use compatible 0-10V controls and follow the wiring diagram supplied with the fixture.
  • Confirm ceiling system, plenum requirements and any non-recessed mounting accessories before purchase.

Project-Ready Features

  • 4, 8 and 12-pack options support small upgrades and multi-room rollouts.
  • Selectable settings reduce surplus inventory when room-by-room lighting requirements vary.
  • 50,000-hour rated life and a five-year warranty support lifecycle planning.

Fit and Compatibility

The published fixture dimensions are 603 × 603 × 30 mm. Confirm the actual grid opening, suspension support and local code requirements. Surface-mount or suspension accessories are not assumed to be included.

Professional installation is recommended. Confirm compatibility, dimensions and local electrical requirements before ordering.

Frequently Asked Questions About This Product

What wattage settings are available?

The panel can be set to 40W, 35W, 30W, 25W or 20W.

Choose 2700K, 3500K, 4000K, 5000K or 5700K.

Yes. It supports 0-10V dimming when connected to a compatible control system.

The published maximum output is 5,200 lumens with a published efficacy of 130 lm/W.

Choose a 4-pack, 8-pack or 12-pack. The supplier carton quantity is four panels.
