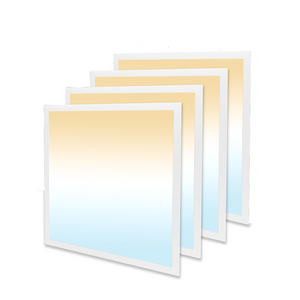

White 2x2 LED panel lights with a warm-to-cool color temperature illustration

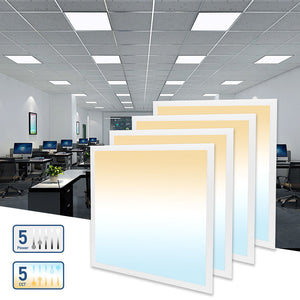

Square LED panel lights with a color temperature illustration against an illuminated office ceiling
LED panel installation in a suspended ceiling with wiring, wattage and color temperature selection steps
Rectangular LED panel lights with a color temperature illustration in an office lighting scene
Office LED panel lighting illustrating 0-10V dimming at different brightness levels

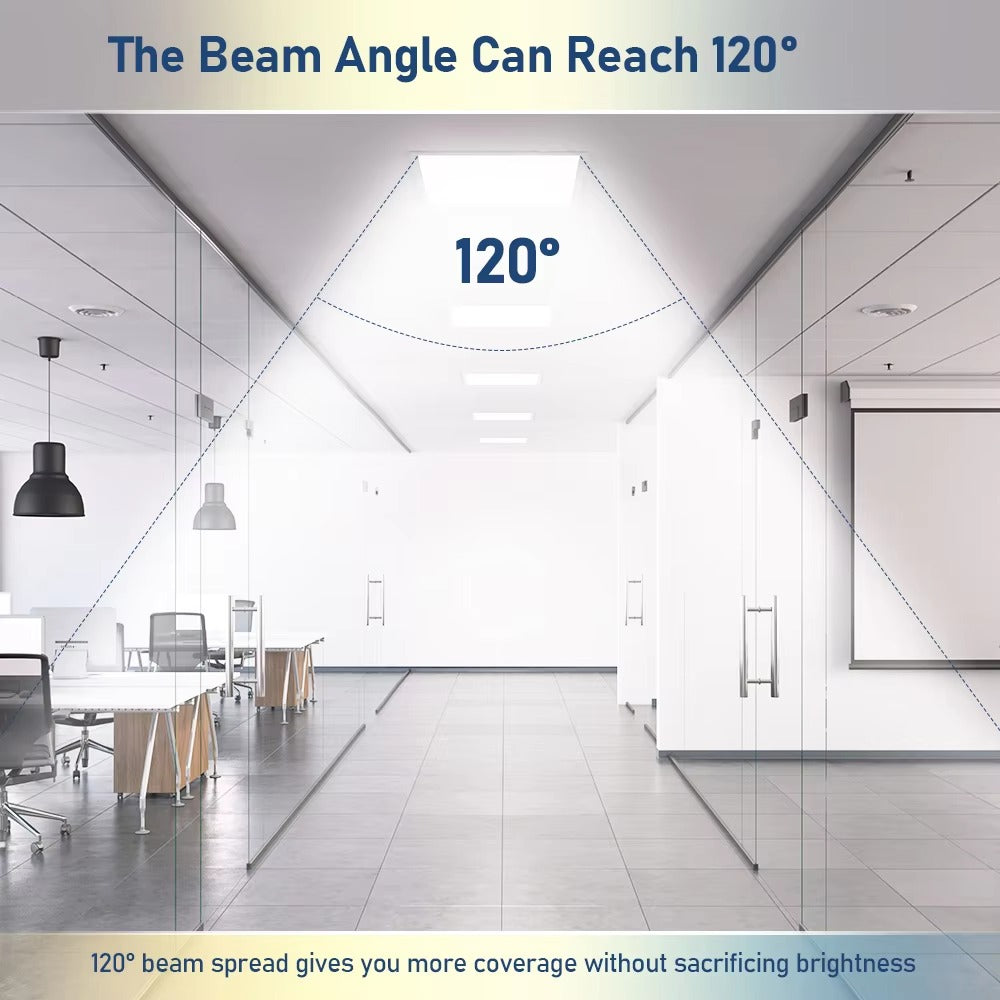

LED panel light graphic illustrating a 120-degree beam spread in a commercial interior

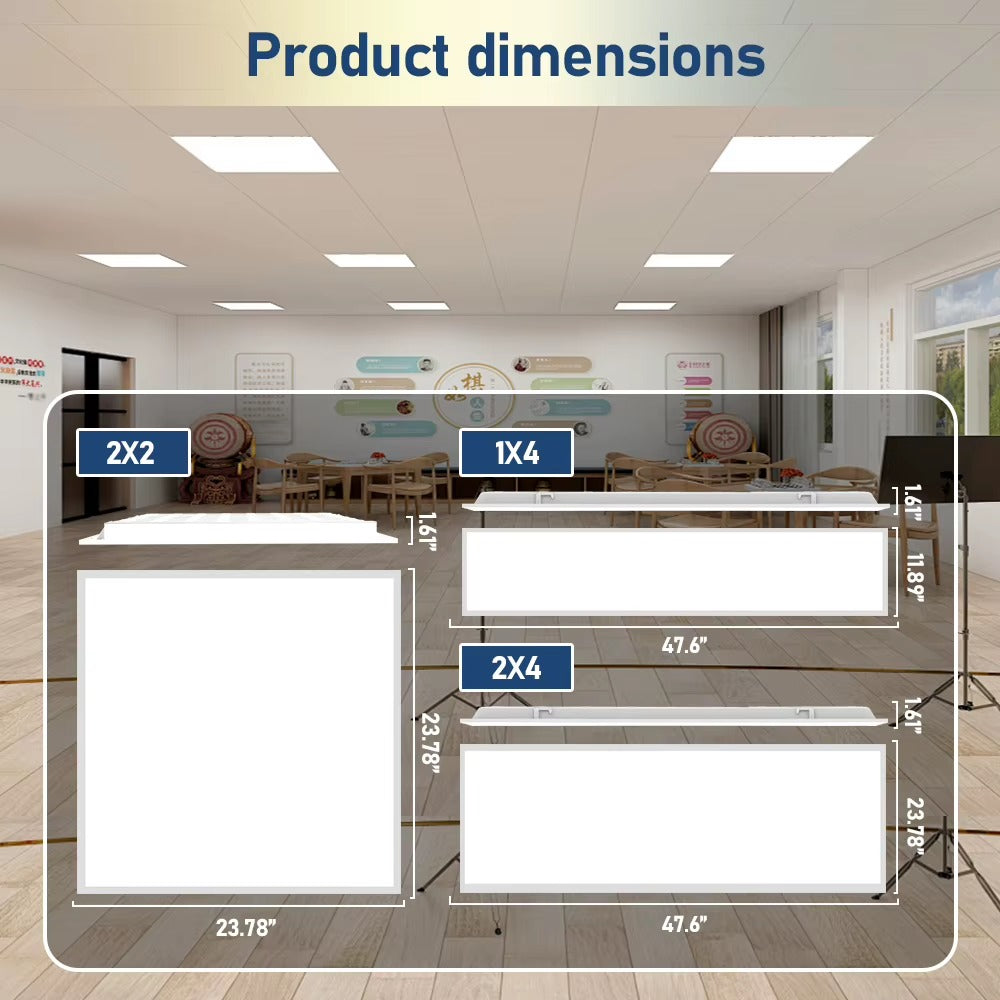

Front dimension diagrams comparing 2x2, 1x4 and 2x4 LED panel lights
LED panel ceiling lighting in a classroom, office, meeting room and hospital hallway

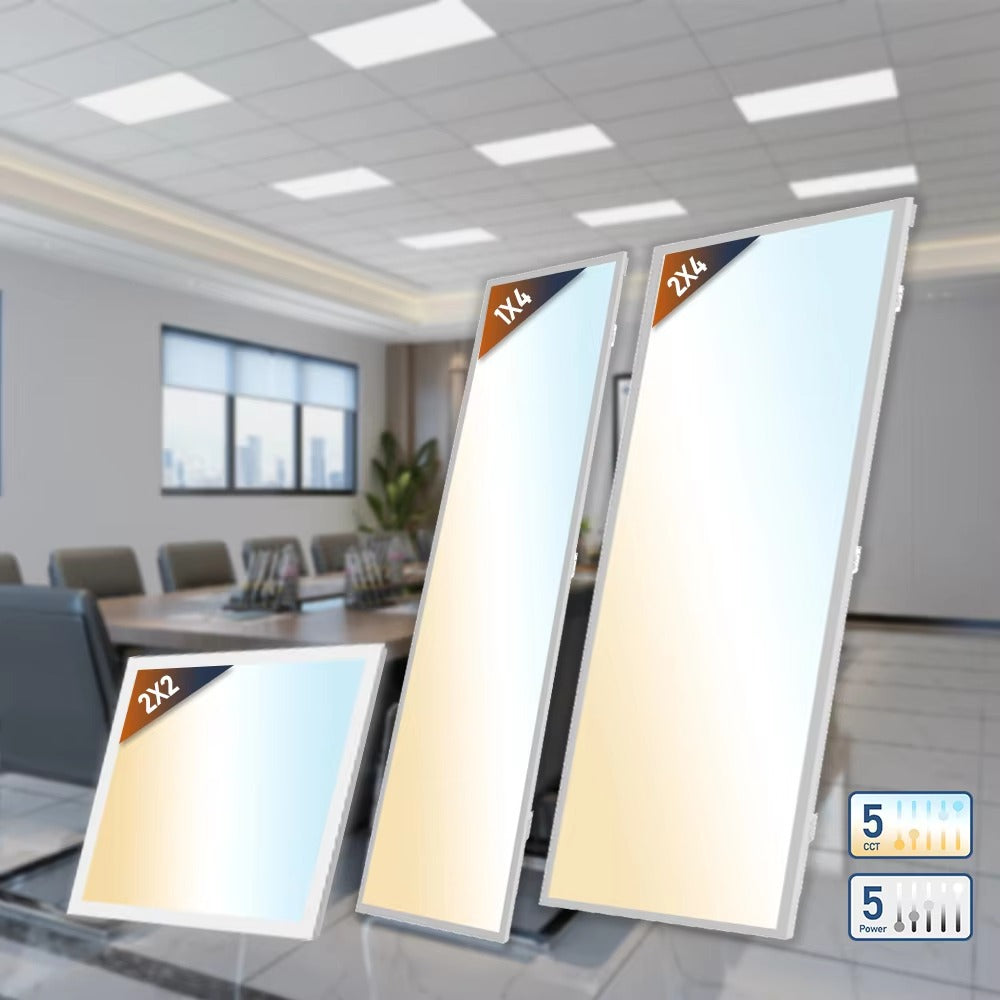

Comparison of 2x2, 1x4 and 2x4 LED panel lights with selectable wattage and color temperature

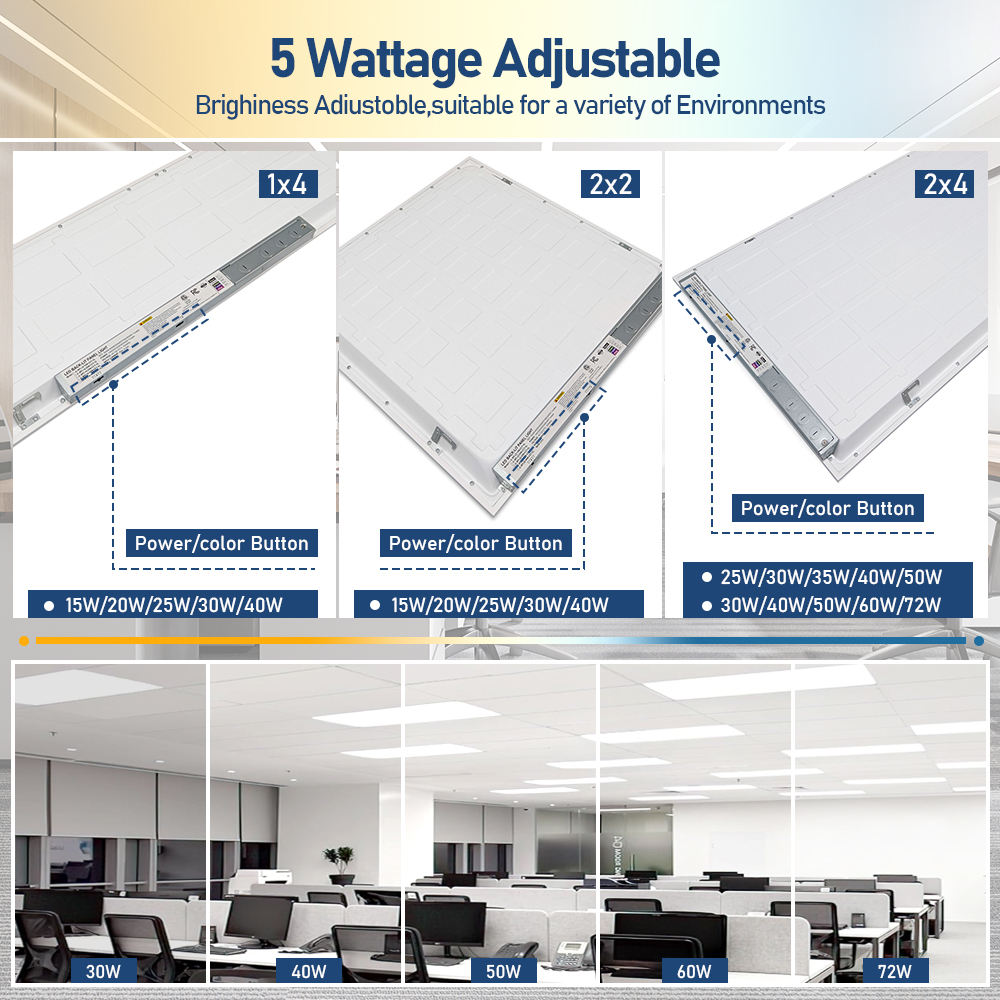

LED panel wattage selector switches and comparison of five power settings
LED panel CCT selector switches and five color temperatures from 3500K to 6500K

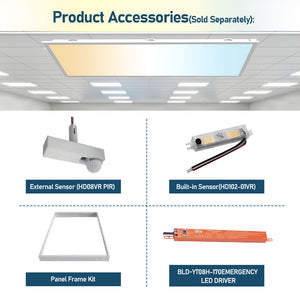

LED panel accessory options showing sensors, a mounting frame and an emergency driver
Rear and side dimension diagrams comparing 1x4, 2x2 and 2x4 LED panel lights

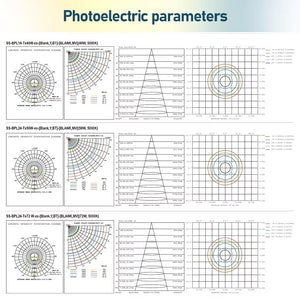

LED panel light photometric charts showing light distribution and illuminance patterns
White 2x2 LED panel lights with a warm-to-cool color temperature illustration
Square LED panel lights with a color temperature illustration against an illuminated office ceiling
LED panel installation in a suspended ceiling with wiring, wattage and color temperature selection steps
Rectangular LED panel lights with a color temperature illustration in an office lighting scene
Office LED panel lighting illustrating 0-10V dimming at different brightness levels
LED panel light graphic illustrating a 120-degree beam spread in a commercial interior
Front dimension diagrams comparing 2x2, 1x4 and 2x4 LED panel lights
LED panel ceiling lighting in a classroom, office, meeting room and hospital hallway
Comparison of 2x2, 1x4 and 2x4 LED panel lights with selectable wattage and color temperature
LED panel wattage selector switches and comparison of five power settings
LED panel CCT selector switches and five color temperatures from 3500K to 6500K
LED panel accessory options showing sensors, a mounting frame and an emergency driver
Rear and side dimension diagrams comparing 1x4, 2x2 and 2x4 LED panel lights
LED panel light photometric charts showing light distribution and illuminance patterns
 1 of 14

2x2 LED Panel Light with Sensor, 40W Max, 5CCT Selectable

SKU: P-0121-4PK
Sale price $371.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
5,200 lm
Wattage:
15W / 20W / 25W / 30W / 40W
Voltage:
120-277V AC
Dimming:
0-10V
Location:
Damp Location
Warranty:
5-Year
2x2 LED Panel Light: With Sensor
White 2x2 LED panel lights with a warm-to-cool color temperature illustration Square LED panel lights with a color temperature illustration against an illuminated office ceiling
Back Lit
Back Lit
White 2x2 LED panel lights with a warm-to-cool color temperature illustration Square LED panel lights with a color temperature illustration against an illuminated office ceiling
With Sensor
With Sensor
White 2x2 LED panel lights arranged in an overlapping group Square LED panel lights with a color temperature illustration against an illuminated office ceiling
Audio Jack Sensor Base
Audio Jack Sensor Base
Pack Size: 4-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
2x2 LED Panel Light with Sensor, 40W Max, 5CCT Selectable
2x2 LED Panel Light with Sensor, 40W Max, 5CCT Selectable 4-Pack
Total for selected quantity Sale price $371.99
0

Specifications

Lumens 5,200 lm
Efficacy 135-145 lm/W
Wattage 15W, 20W, 25W, 30W, 40W
Voltage 120-277V AC
Dimming 0-10V
Operating Temperature -40°F to 113°F (-40°C to 45°C)
Color Temperature 3500K, 4000K, 5000K, 5700K, 6500K
CRI 80
Location Rating Damp Location
Mounting Type Recessed T-Grid

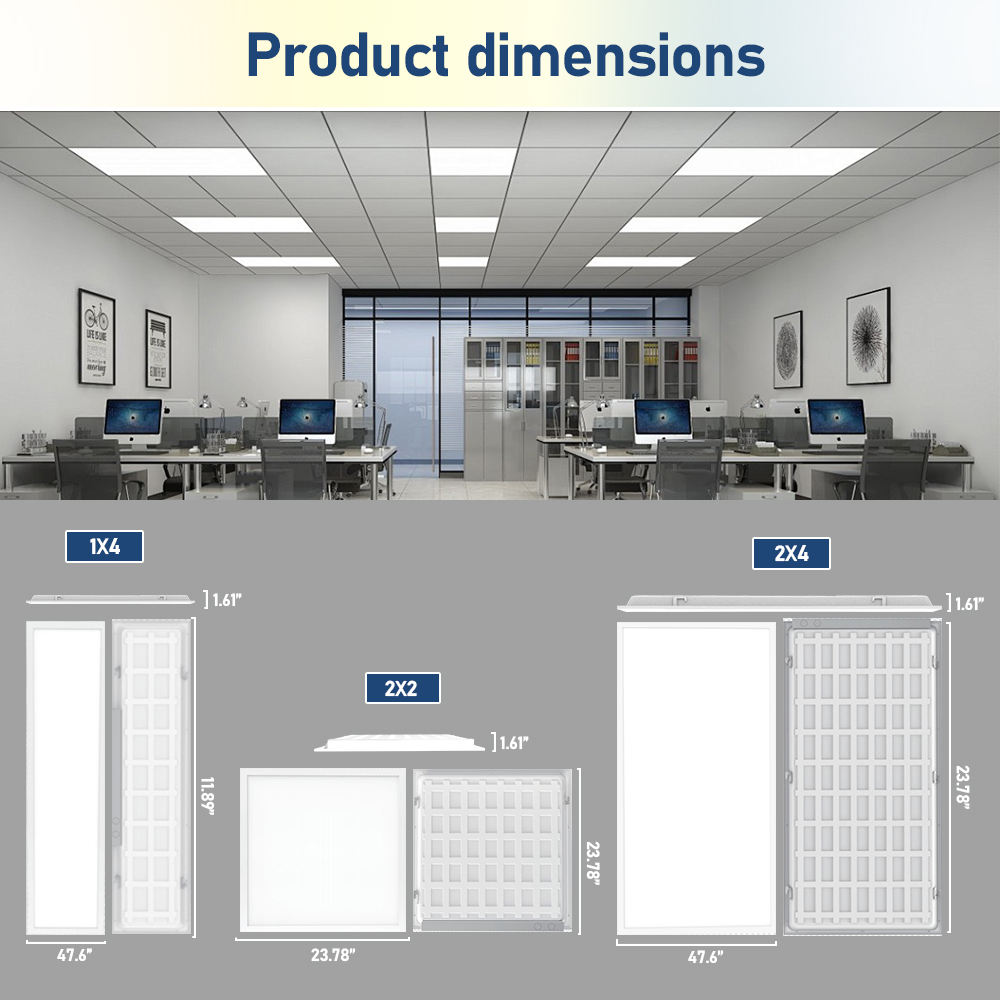

Product Dimensions 23.78 x 23.78 x 1.61 in.
Certifications ETL Listed DLC Premium FCC Compliant RoHS Compliant 5‑Year Warranty
Rated Life 50,000+ Hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
finish Matte White
power factor >0.95
sensor base Sensor Included

Downloads

Download Spec Sheet

2x2 Selectable LED Panel with Included Sensor

A sensor-equipped commercial panel that combines selectable output, five CCT settings and 0-10V dimming in a compact 2x2 format.

Field-Selectable Output

15W, 20W, 25W, 30W and 40W wattage settings let contractors match light output to the project without changing fixtures.

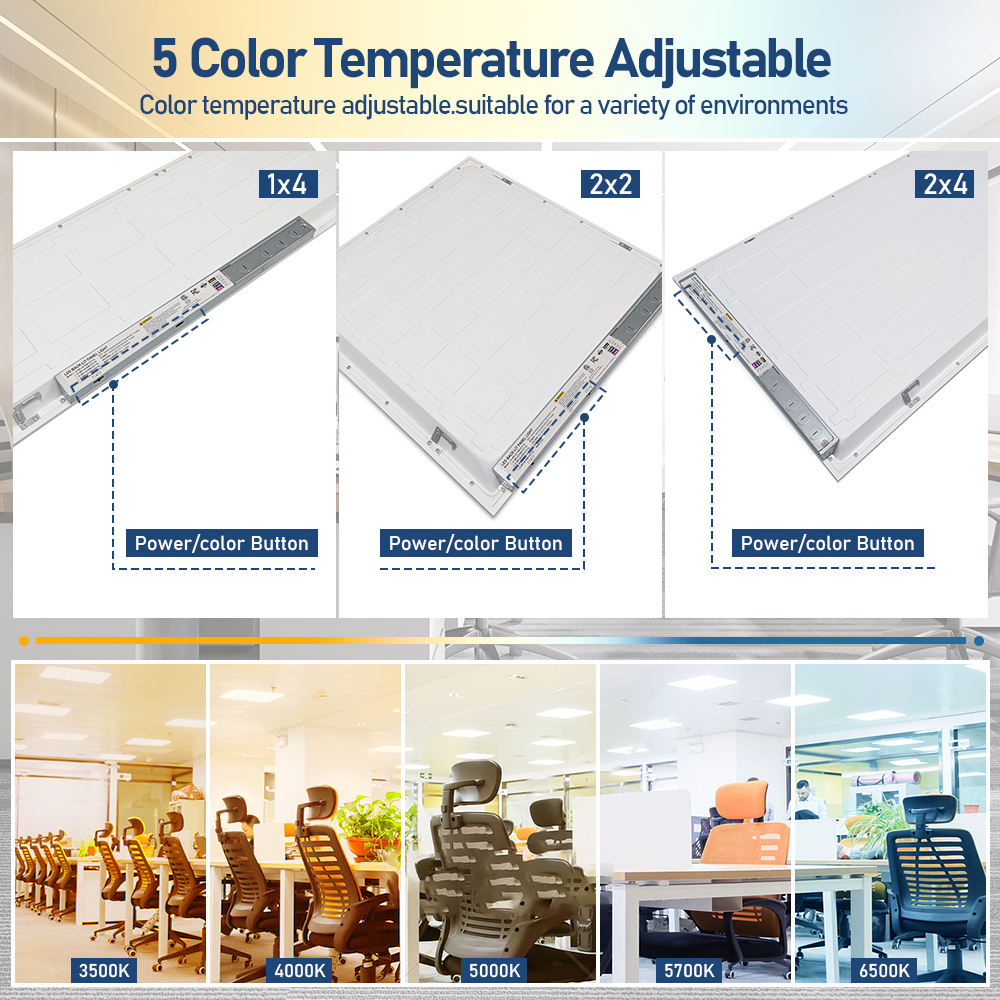

Five Selectable CCTs

Choose 3500K, 4000K, 5000K, 5700K or 6500K during installation.

0-10V Dimming

Smooth commercial dimming supports offices, schools, retail spaces and other controlled-lighting applications.

Project-Ready Construction

Back-lit optics provide uniform illumination while the slim white frame fits standard suspended ceilings.

Sensor Included

The actual sales package includes the compatible sensor for occupancy-based lighting control.

Commercial Performance

  • Maximum output: 5,200 lumens
  • Universal 120-277V input
  • CRI 80
  • Rated life: 50,000+ hours
  • Damp-location rated

Installation & Applications

  • Nominal size: 2 ft. x 2 ft.
  • Integrated T-bar mounting clips

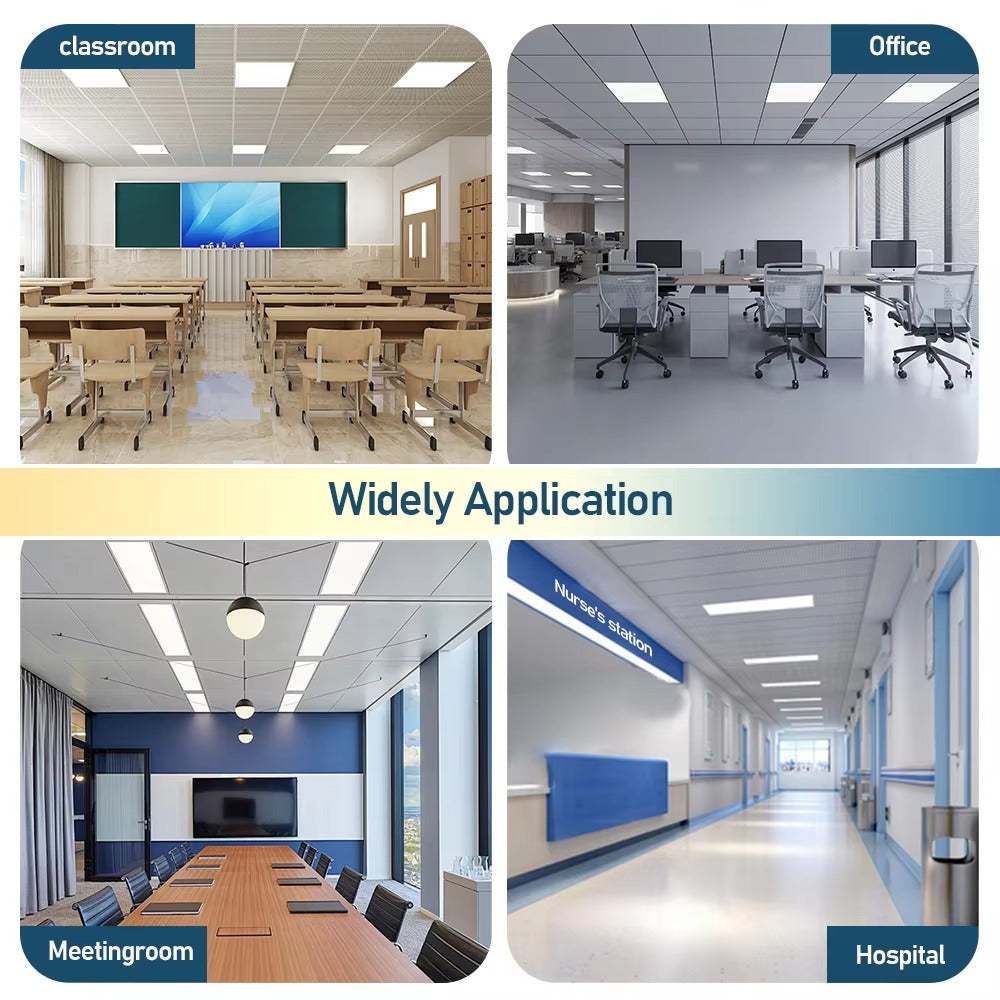

  • Suitable for offices, classrooms, retail stores and commercial interiors
  • ETL and DLC Premium certified; FCC and RoHS compliant
  • 5-year limited warranty

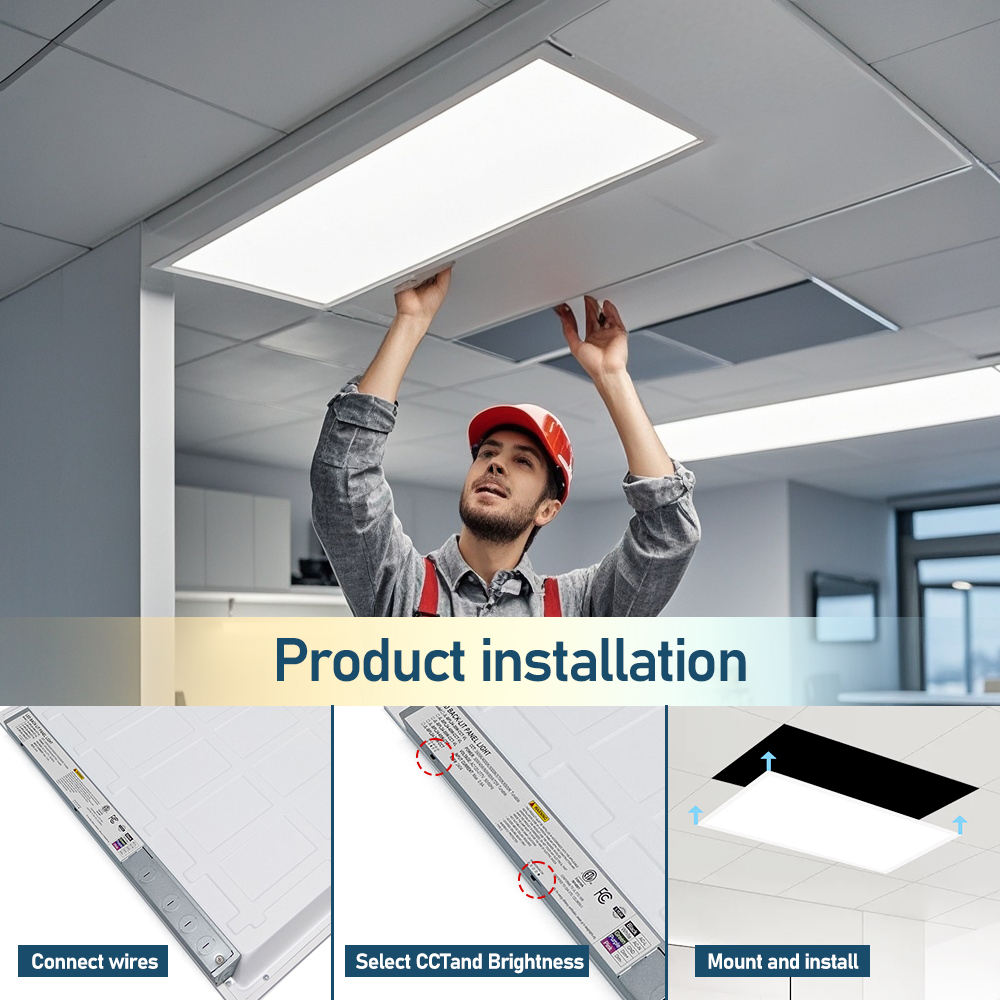

Select wattage and color temperature before installation. Use a compatible 0-10V dimmer and follow applicable electrical codes.

Frequently Asked Questions About This Product

Can the wattage be adjusted?

Yes. Select the required wattage with the onboard switch before installation.

The fixture provides 3500K, 4000K, 5000K, 5700K and 6500K selectable settings.

Yes. It supports 0-10V dimming with a compatible control and correct wiring.

It is intended for commercial indoor damp locations and fits a nominal 2 ft. x 2 ft. ceiling opening.

This configuration includes the compatible sensor.
