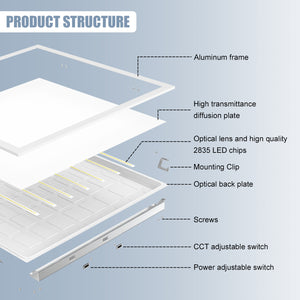

Exploded view of LED flat panel frame, diffuser and internal components
0-10V dimming levels illustrated for LED flat panel ceiling lights
2 by 4 foot LED flat panel specifications and office ceiling installation
Comparison of 2 by 2, 1 by 4 and 2 by 4 foot panel outlines
Outlines comparing square and rectangular LED flat panel sizes
Four 2 by 4 foot LED flat panel lights on a white background
LED flat panel lights in multiple ceiling sizes shown in an office
LED flat panel lights installed in commercial ceiling applications
LED flat panel wattage and color temperature selection switches
Exploded view of LED flat panel frame, diffuser and internal components
0-10V dimming levels illustrated for LED flat panel ceiling lights
2 by 4 foot LED flat panel specifications and office ceiling installation
Comparison of 2 by 2, 1 by 4 and 2 by 4 foot panel outlines
Outlines comparing square and rectangular LED flat panel sizes
 1 of 9

2x4 LED Flat Panel Light, 72W Max, 3500K-6500K Selectable

SKU: NG-FPN-72W-36CD-4PK
Sale price $229.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
9,360 lm max
Wattage:
72W / 60W / 50W / 40W / 30W
Voltage:
100-277V AC
Dimming:
0-10V
Warranty:
5-Year
LED Flat Panel Light NGT: 2x4 72W 6500K
Four 2 by 2 foot LED flat panel lights on a white background LED flat panel lights in multiple ceiling sizes shown in an office
2x2 40W
2x2 40W
Four 2 by 4 foot LED flat panel lights on a white background LED flat panel lights in multiple ceiling sizes shown in an office
2x4 72W 5700K
2x4 72W 5700K
Four 2 by 4 foot LED flat panel lights on a white background LED flat panel lights in multiple ceiling sizes shown in an office
2x4 72W 6500K
2x4 72W 6500K
Pack Size: 4-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
2x4 LED Flat Panel Light, 72W Max, 3500K-6500K Selectable
2x4 LED Flat Panel Light, 72W Max, 3500K-6500K Selectable 4-Pack
Total for selected quantity Sale price $229.99
0

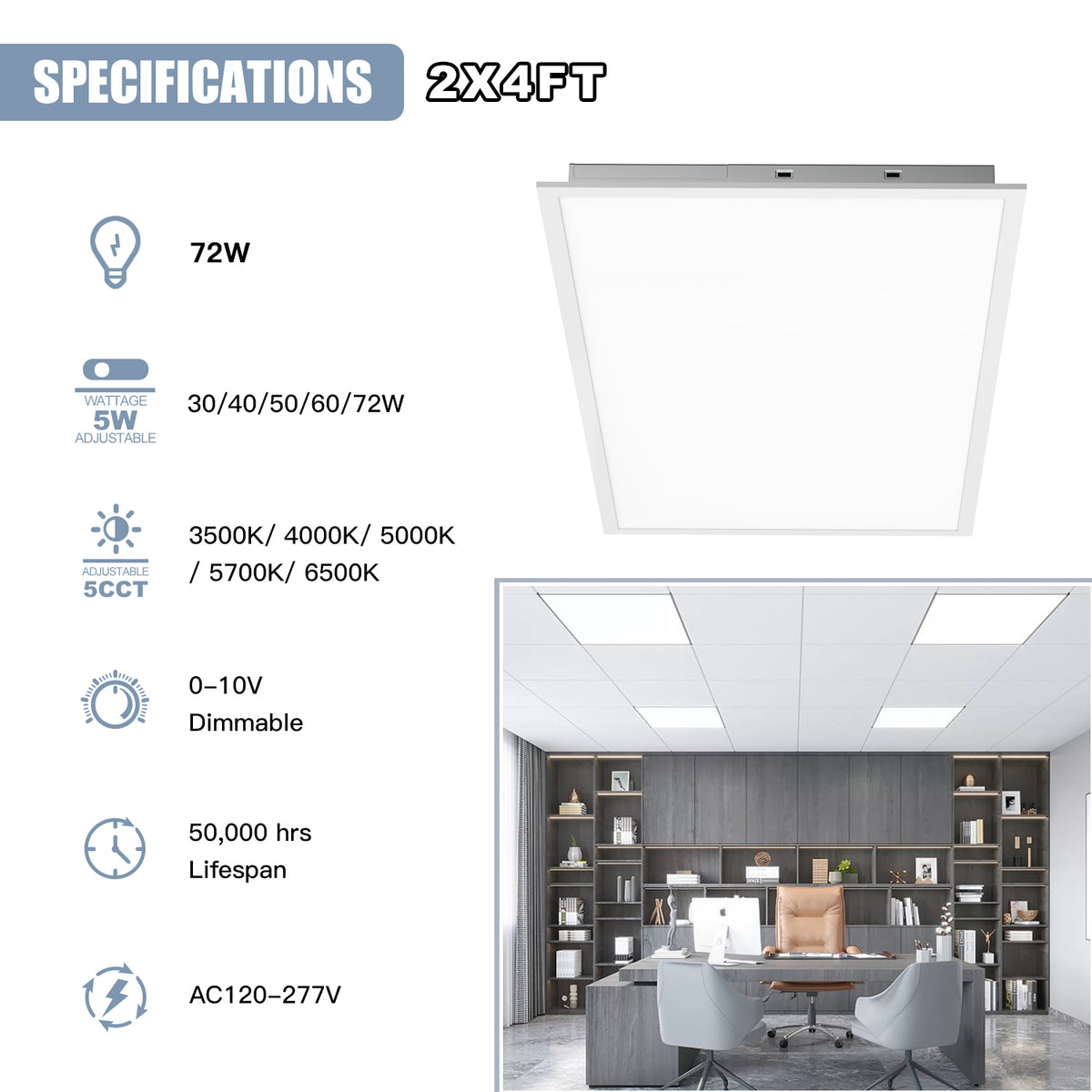

Specifications

Lumens 9,360 lm max
Efficacy 130 lm/W
Wattage 72W, 60W, 50W, 40W, 30W
Voltage 100-277V AC
Dimming 0-10V
Color Temperature 3500K, 4000K, 5000K, 5700K, 6500K
Mounting Type Recessed T-grid ceiling
Product Dimensions 603 × 1213 × 30 mm
Certifications ETL Listed DLC Premium 5‑Year Warranty CE Compliant
Rated Life 50,000 hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
ballast compatibility Not applicable
wire connection Hardwired driver

Downloads

Download Spec Sheet

Specify one 2x4 panel across bright commercial environments that require neutral through daylight-white illumination. Five selectable wattages from 30W to 72W let installers adapt output for open offices, schools, retail, warehouses and back-of-house areas.

This version offers 3500K, 4000K, 5000K, 5700K and 6500K settings. Up to 9,360 lumens, 130 lm/W efficacy and 0-10V dimming make it suitable for projects that prioritize high output and commissioning flexibility.

Commercial Lighting Flexibility

Five wattage settings

Choose 72W, 60W, 50W, 40W or 30W for room-specific output.

Neutral-to-daylight CCT

Settings from 3500K through 6500K support task-focused commercial areas.

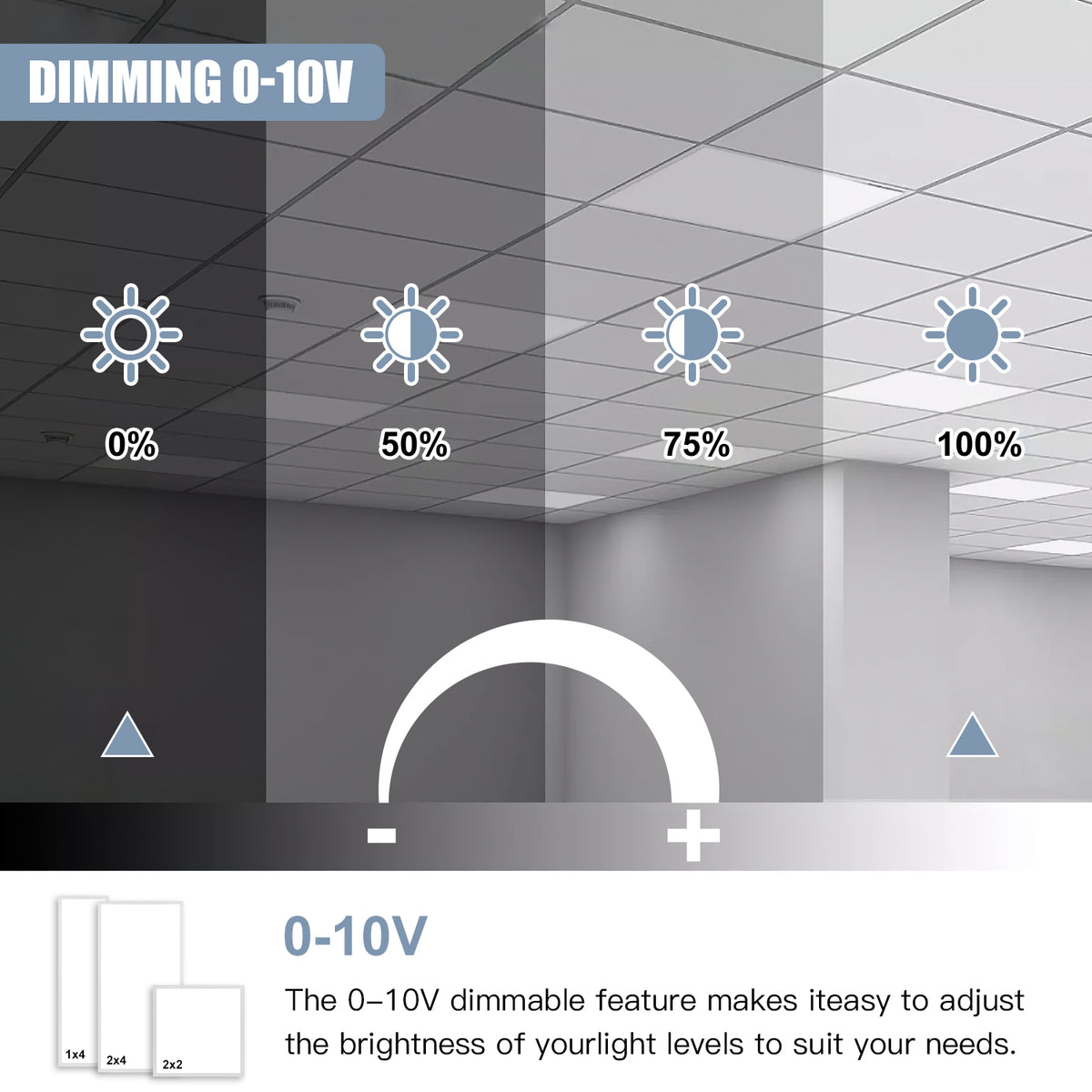

Compatible dimming

0-10V control supports adjustable light levels when paired with a compatible system.

Commercial efficiency

Delivers up to 9,360 lumens with a published efficacy of 130 lm/W.

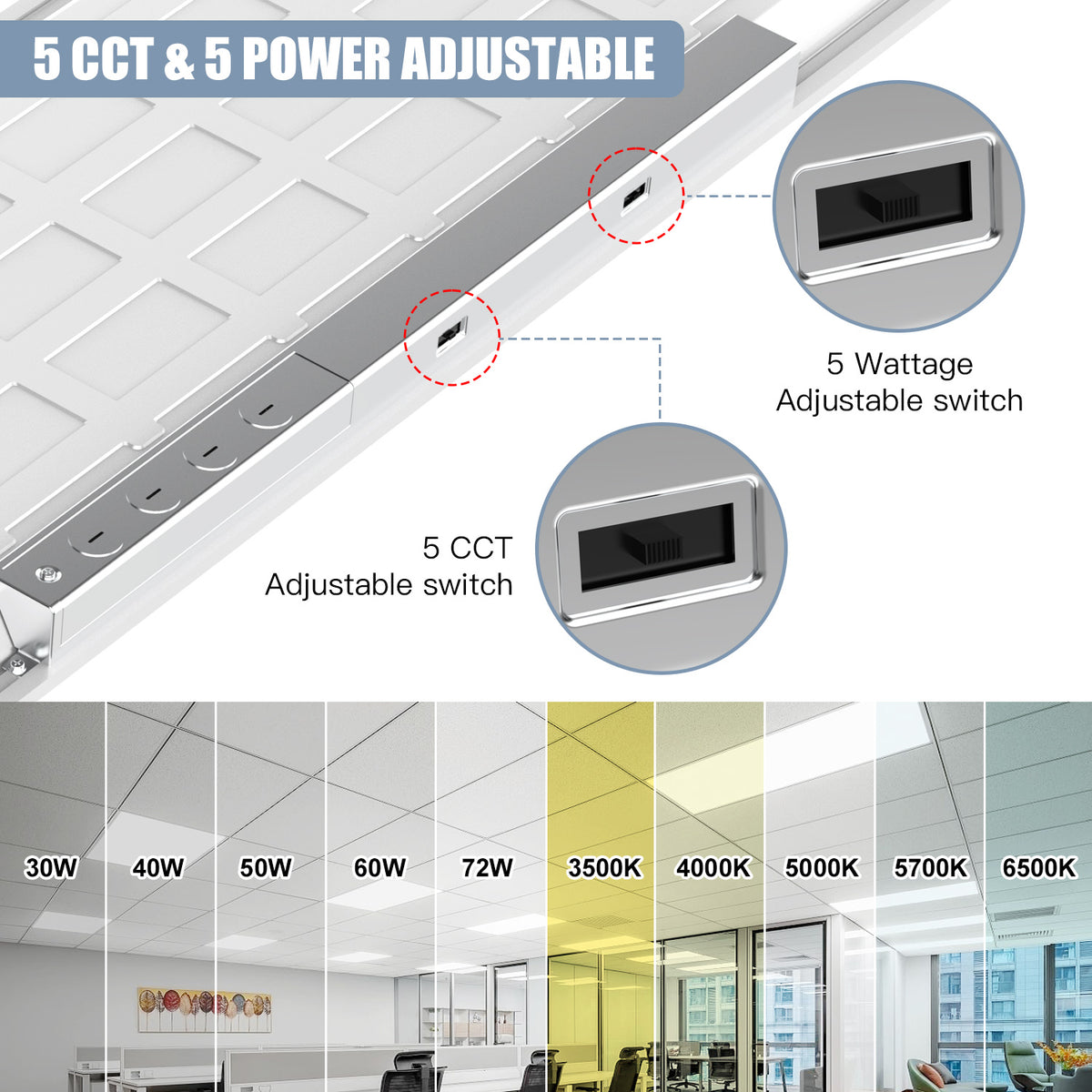

Selectable Output and Color

Choose from 72W, 60W, 50W, 40W, 30W and match the space with the required color temperature.

3500K4000K5000K5700K6500K

Installation and Performance

  • Designed for nominal 2x4 commercial T-grid ceilings.
  • Follow the supplied line-voltage and 0-10V control wiring diagrams.
  • Confirm fixture support, plenum conditions and any accessory needs before installation.

Project-Ready Features

  • A 4, 8 and 12-pack structure fits carton-based procurement and phased rollouts.
  • Selectable output and CCT reduce the number of dedicated project SKUs.
  • 50,000-hour rated life and a five-year warranty help support maintenance forecasting.

Fit and Compatibility

Published dimensions are 603 × 1213 × 30 mm. This model is the cooler CCT-range option; choose the separate 2700K-5700K product when a warm 2700K setting is required.

Professional installation is recommended. Confirm compatibility, dimensions and local electrical requirements before ordering.

Frequently Asked Questions About This Product

How is this panel different from the 2700K-5700K version?

This product offers 3500K, 4000K, 5000K, 5700K and 6500K. It is the better fit when a 6500K daylight setting is required.

Choose 72W, 60W, 50W, 40W or 30W.

Yes. It supports 0-10V dimming with a compatible control system.

The published maximum is 9,360 lumens.

The planned variants are 4-pack, 8-pack and 12-pack. The supplier carton quantity is four.
