5-Pack LED Canopy Light, 40-100W Selectable, 3CCT, 120-277V, Sensor Ready

SKU: GL-CP3-100W-H-5000K-BRONZE-5PK
Sale price $250.00
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Wattage:
40W / 60W / 80W / 100W
Voltage:
120-277V AC
Dimming:
0-10V
Location:
Wet location; under covered ceilings only
Warranty:
5-Year
Color: Bronze
Pack Size: 5-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
5-Pack LED Canopy Light, 40-100W Selectable, 3CCT, 120-277V, Sensor Ready
5-Pack LED Canopy Light, 40-100W Selectable, 3CCT, 120-277V, Sensor Ready Bronze / 5-Pack
Total for selected quantity Sale price $250.00
0

Specifications

Efficacy Up to 140 lm/W
Wattage 40W, 60W, 80W, 100W
Voltage 120-277V AC
Dimming 0-10V
Operating Temperature -22°F to 104°F
Color Temperature 3000K, 4000K, 5000K
CRI ≥80
IP Rating IP65
Location Rating Wet location; under covered ceilings only
Mounting Type Surface, 3/4 in NPT conduit

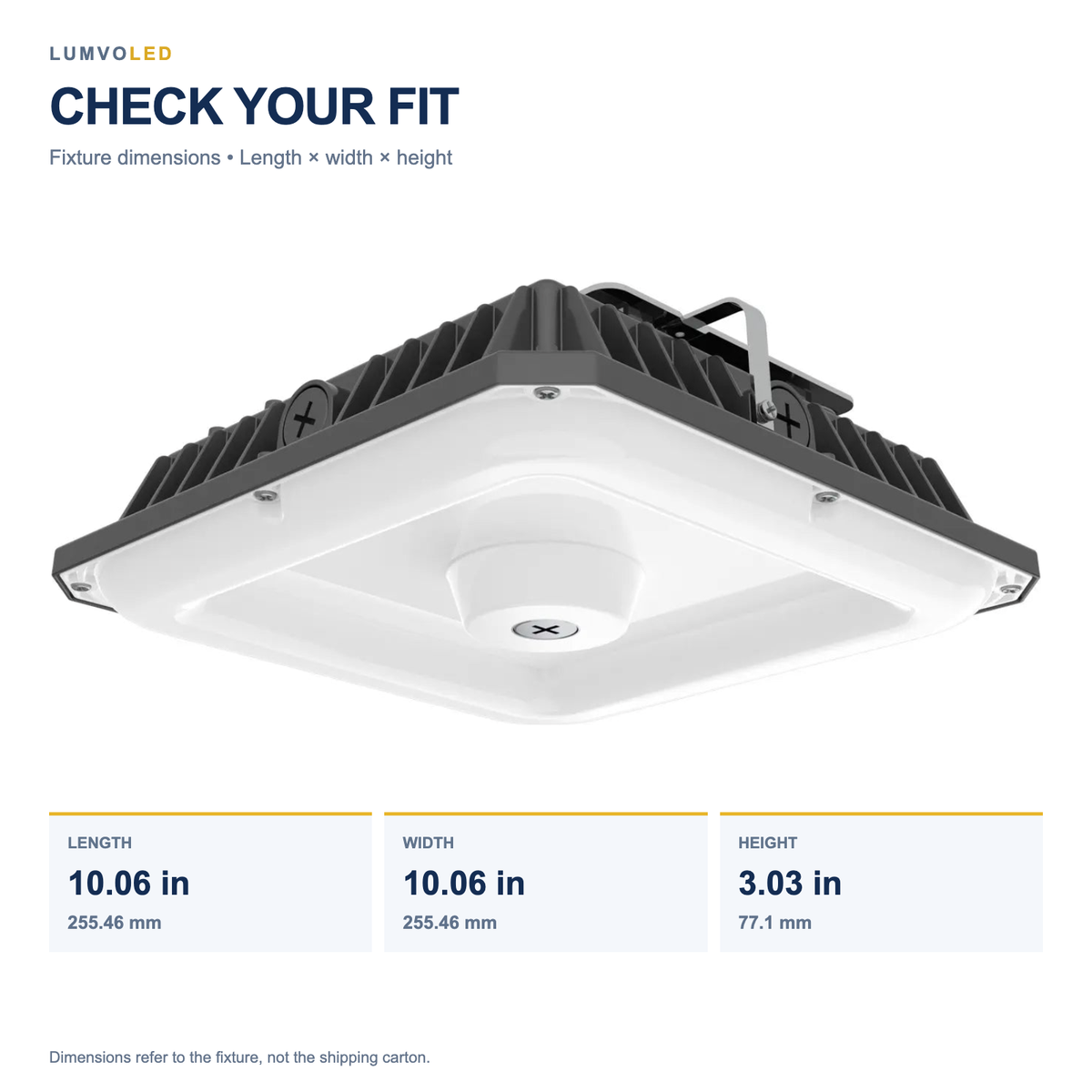

Product Dimensions 10-1/16 x 10-1/16 x 3-1/32 in (255.46 x 255.46 x 77.1 mm)
Certifications UL Listed DLC Premium FCC Compliant
Rated Life >54,000 hours at 25°C
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
finish Bronze / White
housing material Aluminum
power factor >0.9
sensor base Center sensor port; sensor and remote sold separately
THD <20% at full load

Downloads

Download Spec Sheet

LED Canopy Lights for Commercial Projects

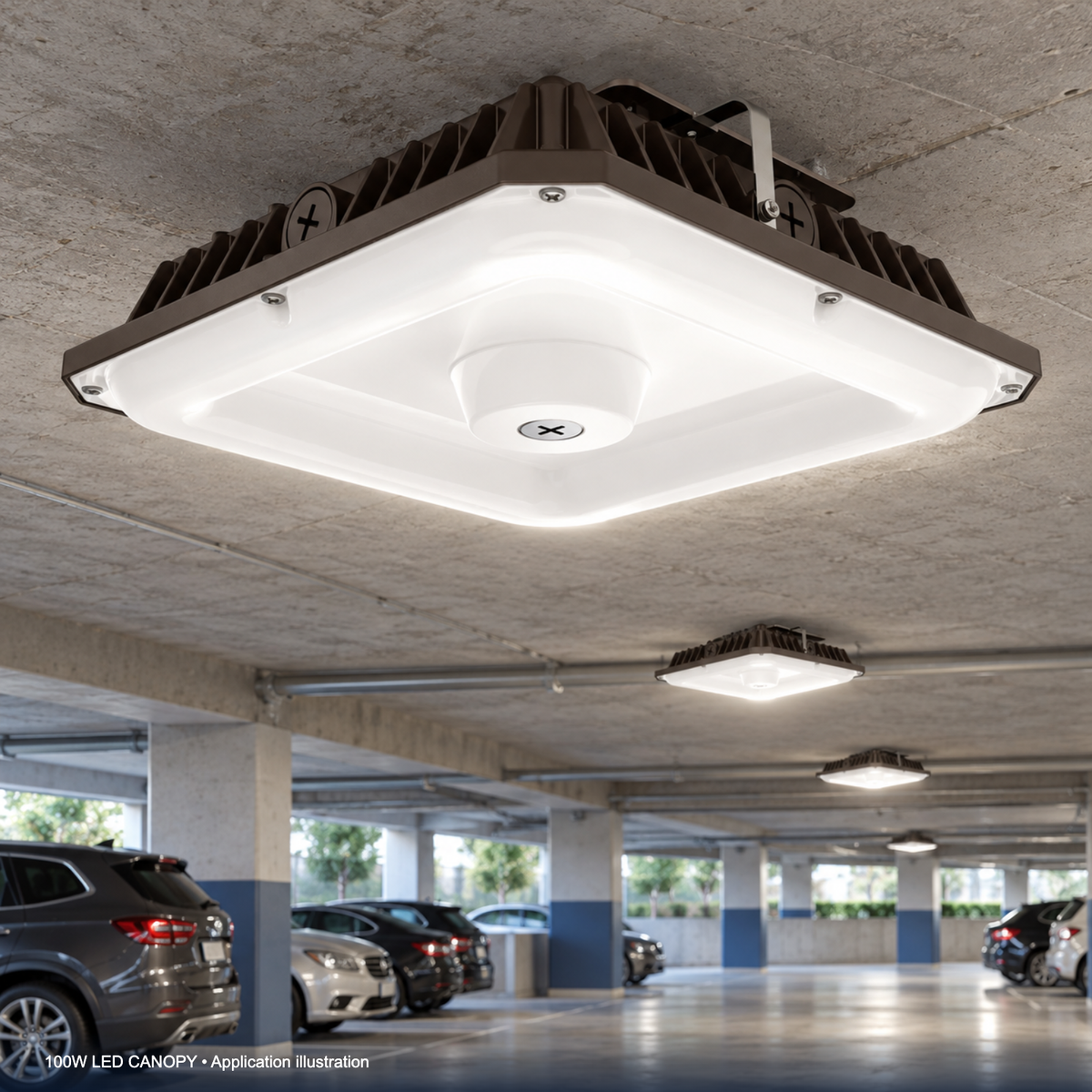

Light covered parking areas, entrances and service-station canopies with a compact square fixture. Four power settings and three color temperatures support a consistent lighting plan across different covered spaces.

Each order unit contains 5 fixtures. The displayed price covers the complete carton. Match quantity, placement and controls to the project lighting plan.

Wattage40W / 60W / 80W / 100W
Color Temperature3000K / 4000K / 5000K
Input Range120-277V AC
Order Quantity5 fixtures

Choose the Light for Your Project

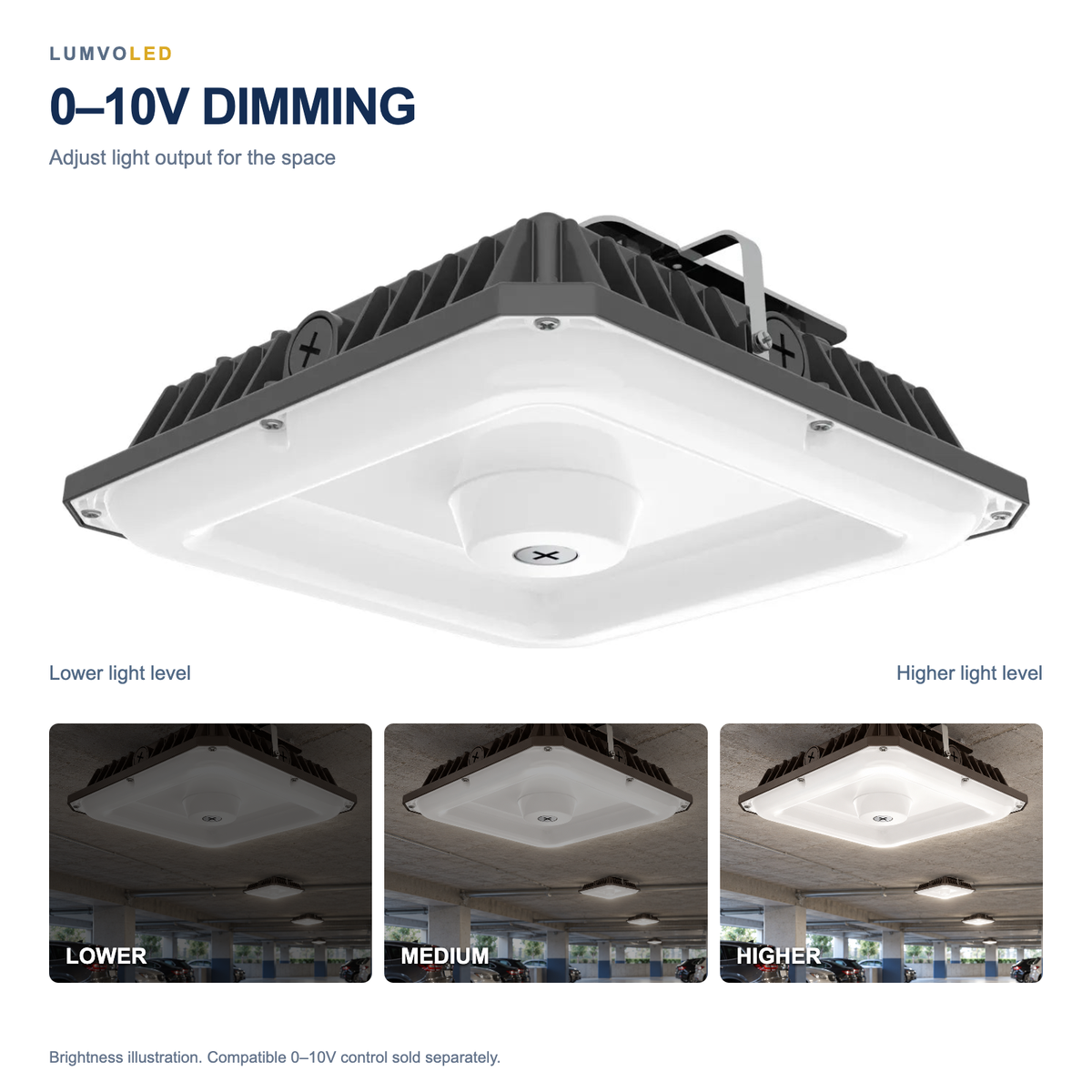

Select the wattage and color temperature separately before installation. Use a compatible 0-10V control to adjust brightness during operation; the control is sold separately.

3000K4000K5000K
Disconnect power before wiring or adjusting fixture settings.

Installation and Controls

Mounting

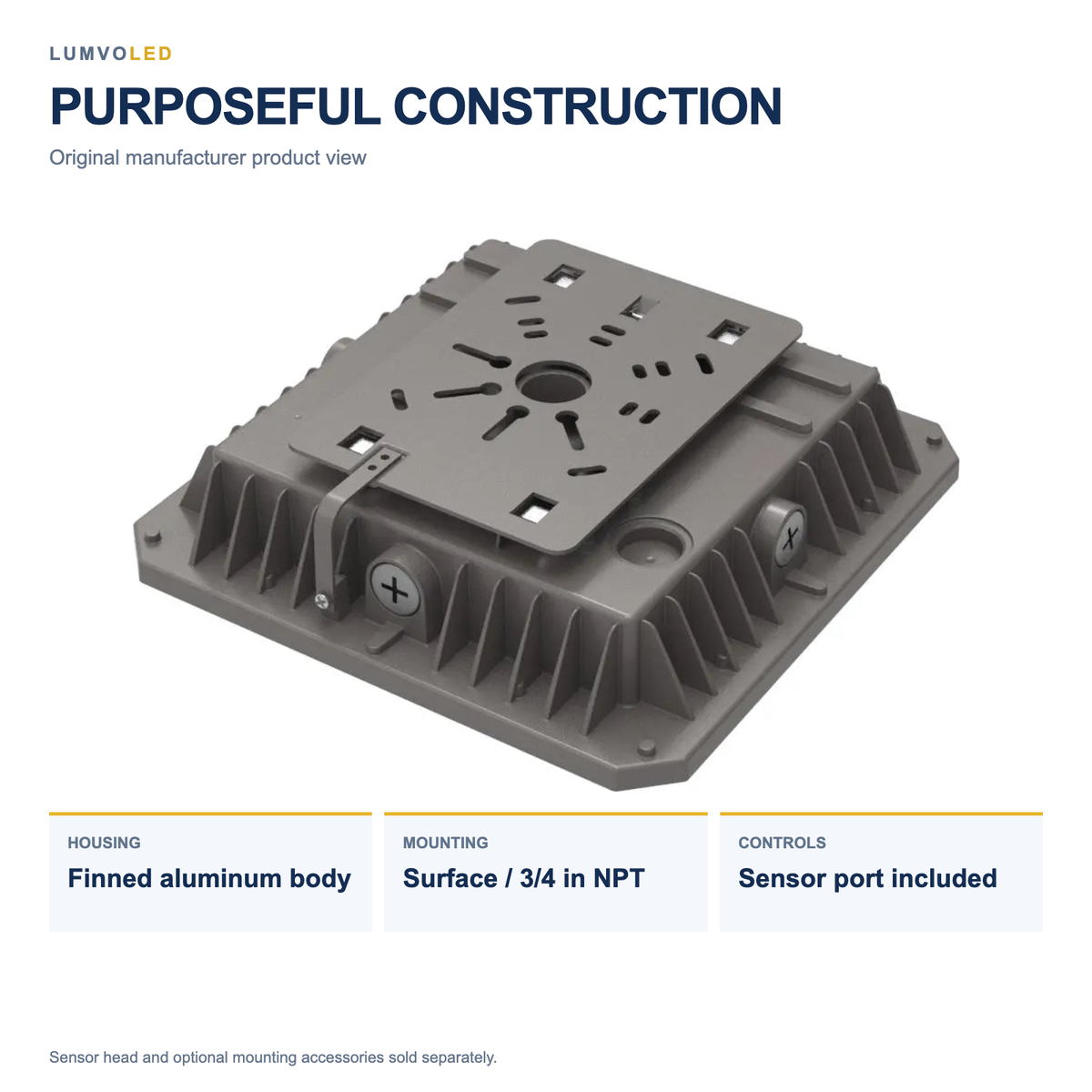

The fixture supports surface mounting with its retaining plate or a compatible 3/4 in NPT conduit connection. Install under covered ceilings and seal the wiring entry as directed.

Controls and Accessories

The center sensor port is included. The compatible microwave motion sensor and remote control are optional accessories sold separately; automatic occupancy sensing is not included with the base fixture.

Project-Ready Features

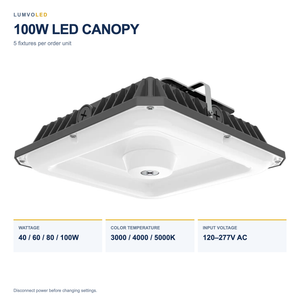

  • Clear configuration: 40W / 60W / 80W / 100W; 3000K / 4000K / 5000K.
  • Brightness control: Compatible with 0-10V dimming.
  • Ordering: 5 fixtures per sales unit.
  • Service: 5-year warranty, subject to warranty terms.

Fit and Compatibility

Application

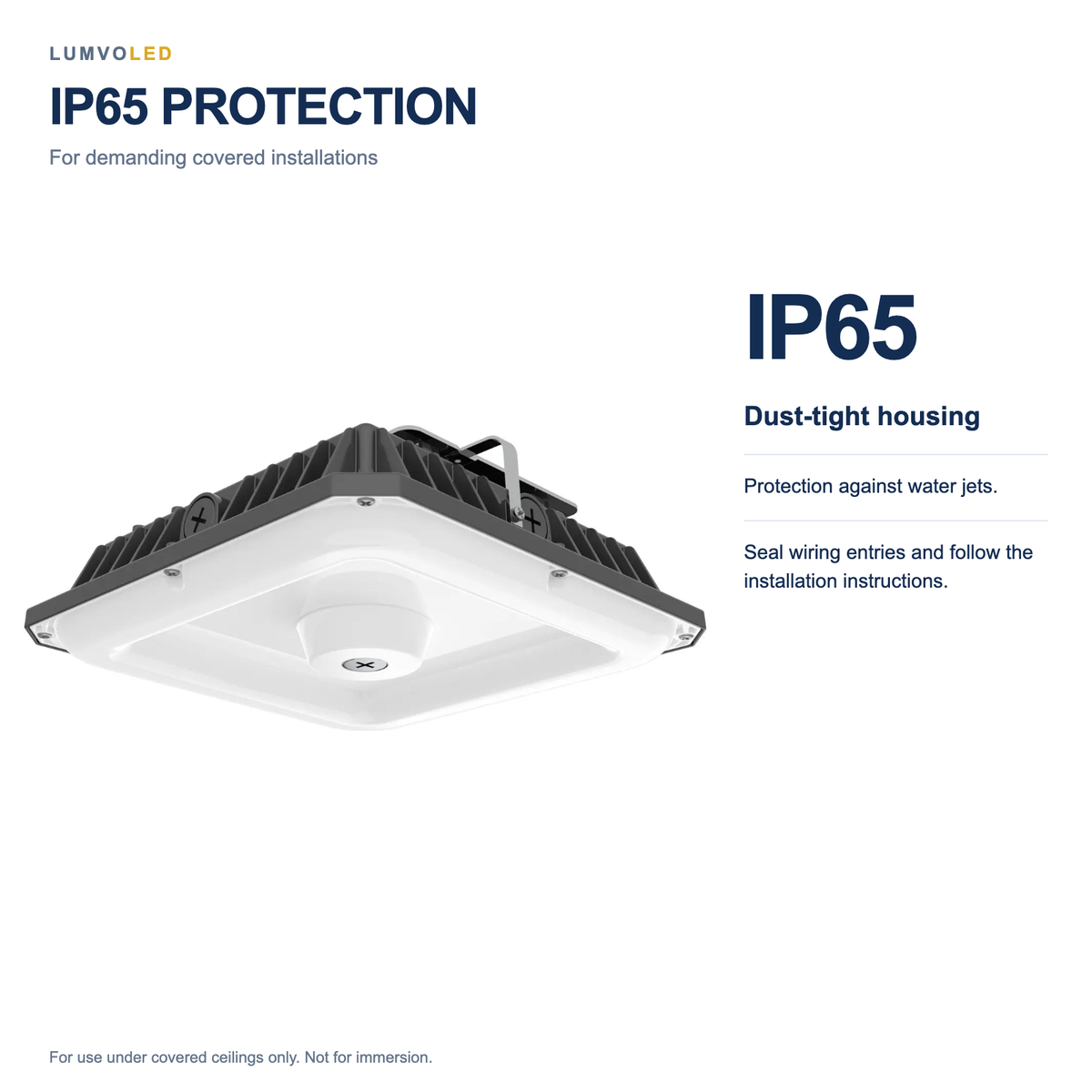

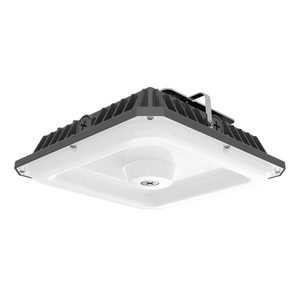

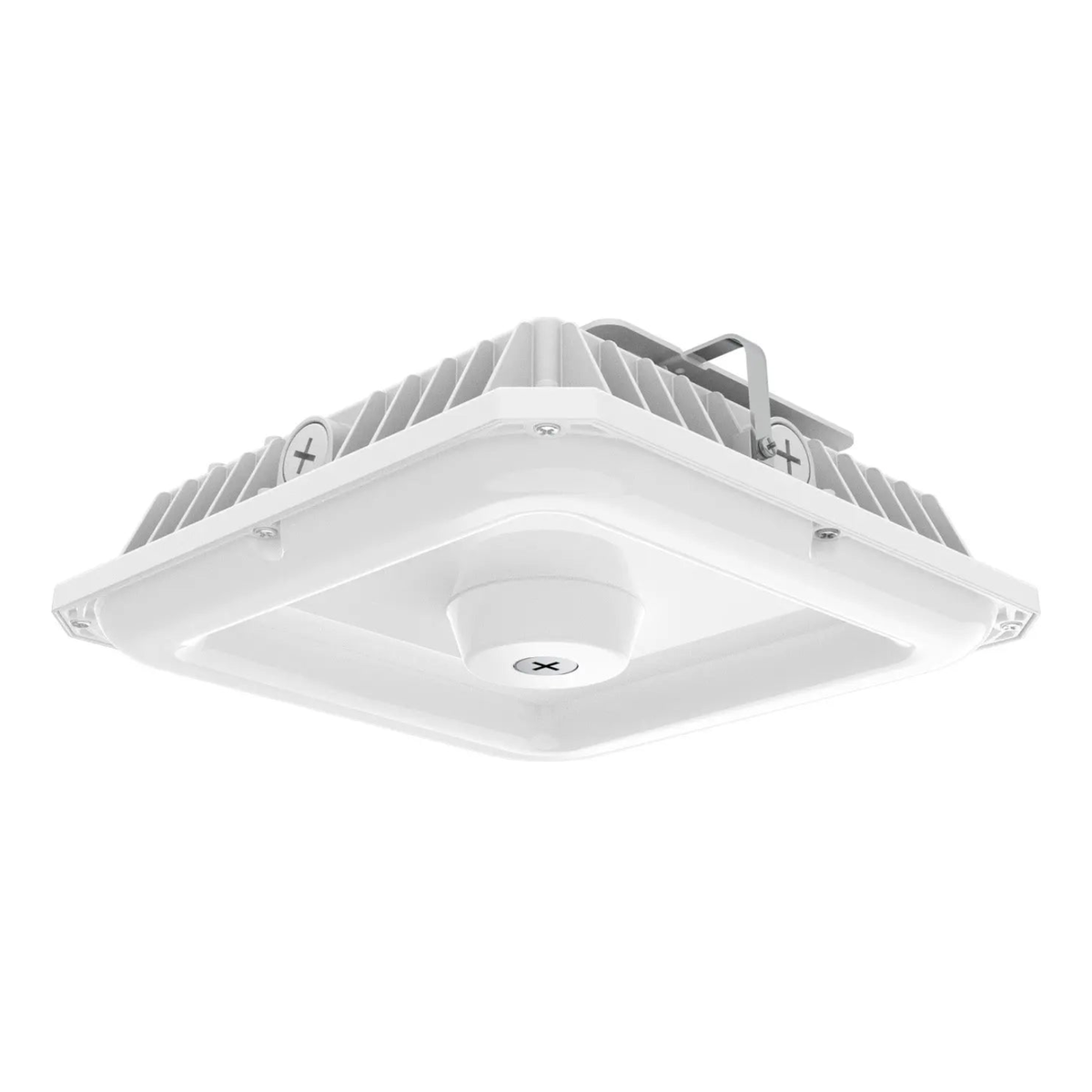

This IP65 fixture is specified for wet locations under covered ceilings only. Choose Bronze or White finish; every carton contains five fixtures of the selected finish.

Electrical Supply

Use a compatible 120-277V AC supply. Confirm the fixture label, circuit and selected controls before installation. A qualified electrician should complete installation and commissioning.

Frequently Asked Questions About This Product

How many fixtures are included?

One order unit contains 5 fixtures. The price is for the complete sales unit.

Wattage settings are 40W / 60W / 80W / 100W. Color temperatures are 3000K / 4000K / 5000K. Disconnect power before changing settings.

The center sensor port is included. The compatible microwave motion sensor and remote control are optional accessories sold separately; automatic occupancy sensing is not included with the base fixture.

Yes. The fixture supports 0-10V dimming with a compatible control, sold separately. Dimming adjusts brightness and is separate from any fixture wattage selection.

The fixture supports surface mounting with its retaining plate or a compatible 3/4 in NPT conduit connection. Install under covered ceilings and seal the wiring entry as directed. Use a compatible 120-277V AC supply and qualified electrical installation.
