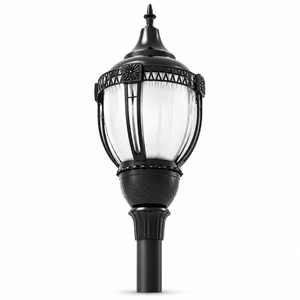

60/50/30W Selectable LED Acorn Post Top Light, 3CCT, Photocell

SKU: G-0036-1PK
Sale price $449.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
Up to 8,142 lm (60W setting)
Wattage:
60W / 50W / 30W
Voltage:
120-277V AC
Dimming:
0-10V
Location:
Wet Location
Warranty:
5-Year
LED Acorn Post Top Light: 60W
Black 60/50/30W selectable LED acorn post top light on white background LED acorn post top lights used on paths streets campuses parks and landscaped areas
60W
60W
Black 100/80/60W selectable LED acorn post top light on white background High-output LED acorn post top lights for paths streets parks campuses and commercial grounds
100W
100W
Pack Size: 1-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
60/50/30W Selectable LED Acorn Post Top Light, 3CCT, Photocell
60/50/30W Selectable LED Acorn Post Top Light, 3CCT, Photocell 1-Pack
Total for selected quantity Sale price $449.99
0

Specifications

Lumens Up to 8,142 lm (60W setting)
Wattage 60W, 50W, 30W
Voltage 120-277V AC
Dimming 0-10V
Operating Temperature -40°F to 113°F
Color Temperature 3000K, 4000K, 5000K
CRI >70
Location Rating Wet Location
Mounting Type 3 in. Pole Tenon Mount
Product Dimensions Ø16.93 in. × 31.10 in. H
Certifications UL Listed FCC Compliant RoHS Compliant 5‑Year Warranty
Rated Life >50,000 Hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
finish Black
lens material UV-Resistant Polycarbonate
photocell included Yes
pole tenon diameter 3 in.

Downloads

Download Spec Sheet

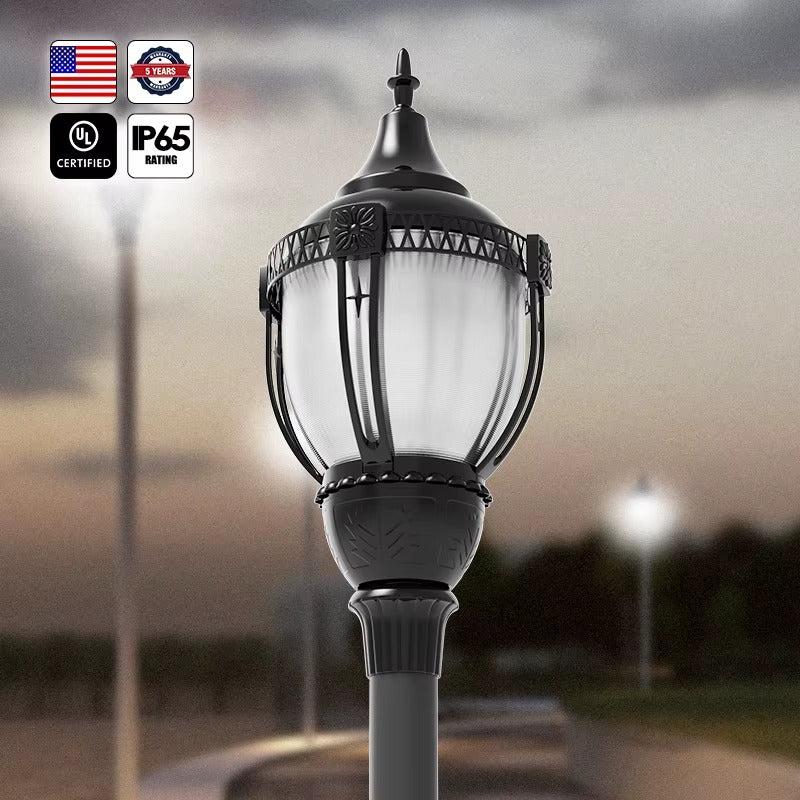

Selectable LED Acorn Post Top Light

This decorative acorn post top light combines a traditional outdoor silhouette with 60W, 50W and 30W field-selectable settings. The PT03 sheet lists up to 8,142 lumens at maximum output and selectable 3000K, 4000K and 5000K color temperatures.

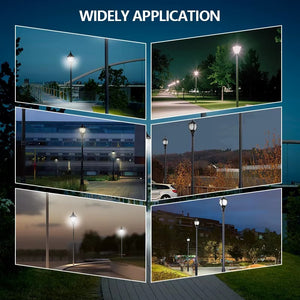

The black luminaire is suited to campuses, public walkways, retail grounds and landscaped areas where appearance and area illumination both matter. An included photocell supports dusk-to-dawn operation.

30W / 50W / 60WThree output choices.
Up to 8,142 LumensMaximum-output figure.
3CCT Selectable3000K, 4000K or 5000K.
Photocell IncludedAutomatic nighttime illumination.

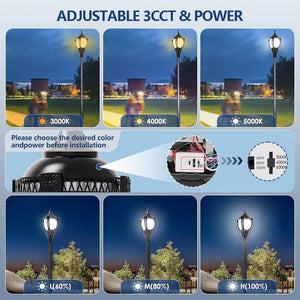

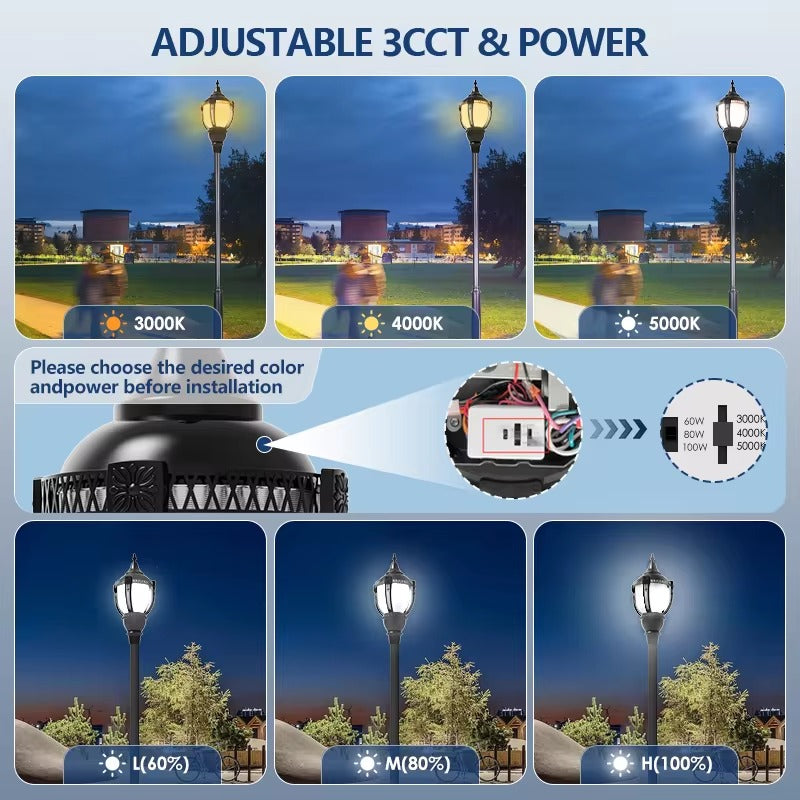

Configure Acorn Lighting on Site

Set power and color temperature during installation. The diffuse, UV-resistant polycarbonate enclosure produces the acorn appearance without requiring a separate lamp purchase.

3000K4000K5000K
Disconnect power before accessing selector switches.

Pole Installation and Night Control

3-Inch Tenon

Route wires through the stem and mount to a compatible 3-inch pole top according to the assembly drawing.

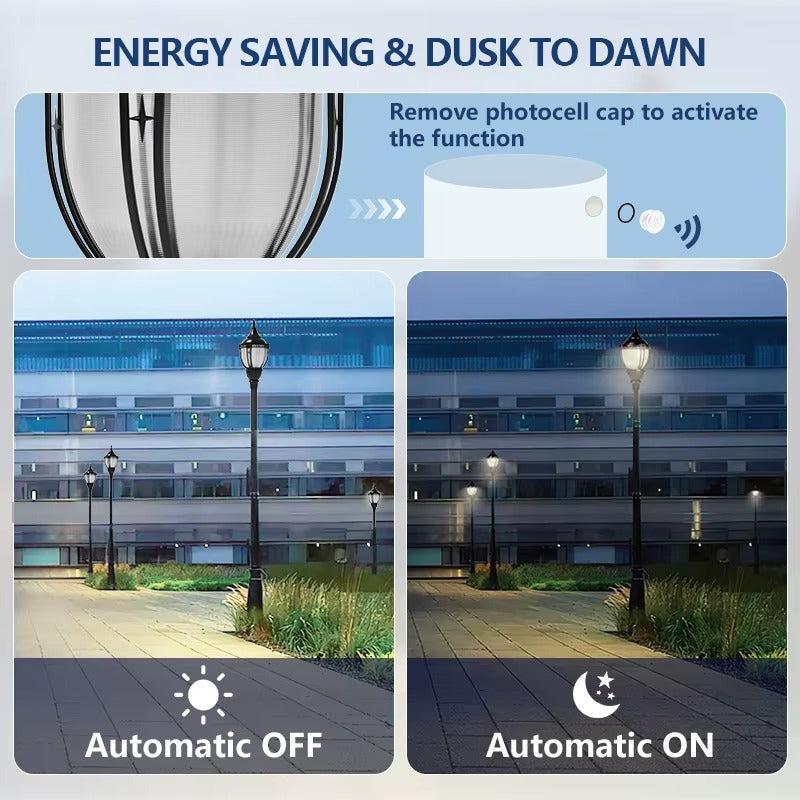

Photocell and 0-10V

Use the included daylight sensor for automatic operation; add a compatible dimmer where project controls require it.

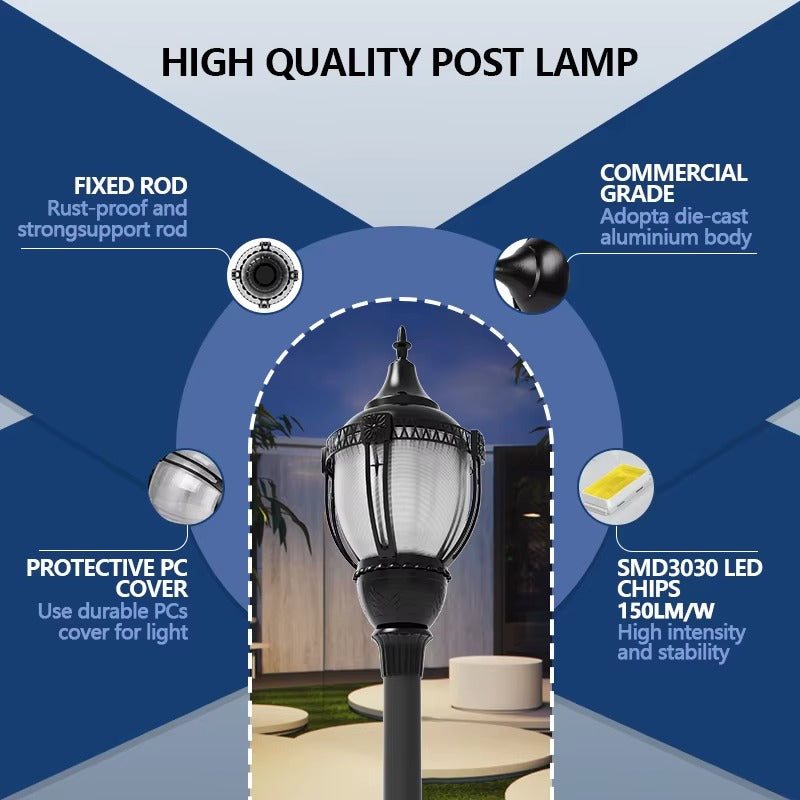

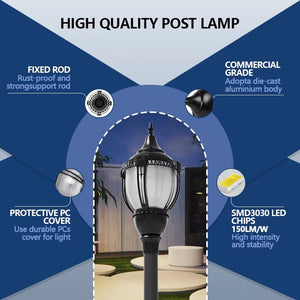

Project-Ready Features

  • Outdoor rating: Suitable for wet locations.
  • Acorn optics: UV-resistant polycarbonate shade.
  • Electrical version: 120-277V AC sale configuration.
  • Maintenance planning: Published lifespan above 50,000 hours.

Dimensions and Compatibility

Housing

Approximately 16.93 inches in diameter by 31.10 inches high.

Installation

Confirm pole capacity, 3-inch tenon fit, supply voltage and daylight sensor exposure.

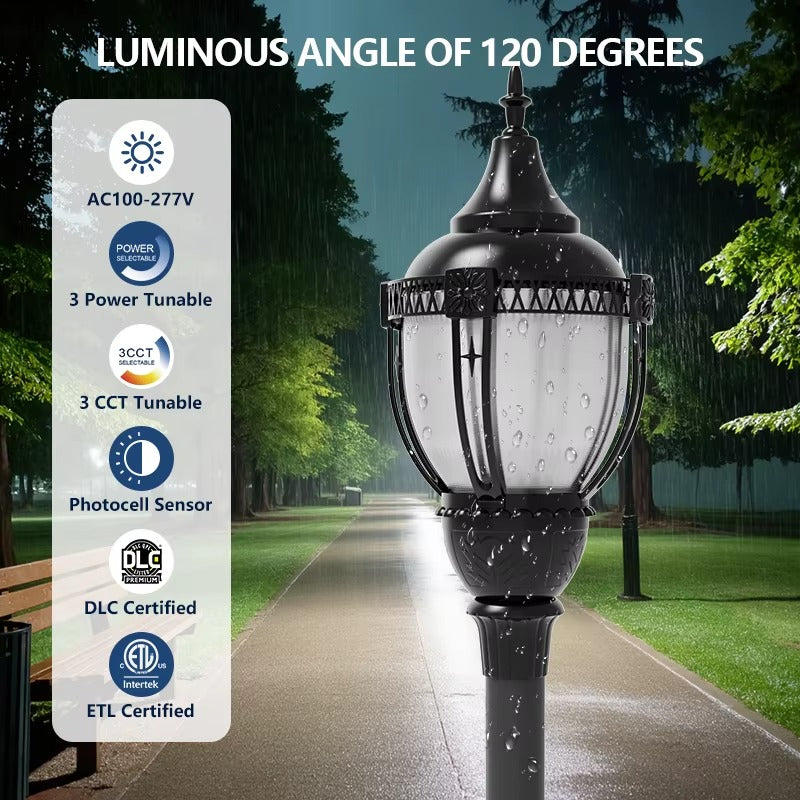

Do not interpret the sheet's 360° general light coverage as a measured beam angle or IES classification.

Frequently Asked Questions About This Product

Does this fixture include a photocell?

Yes. The photocell is included in this orderable configuration; an optional occupancy sensor is not included.

Yes. 60W, 50W and 30W and 3000K, 4000K or 5000K are field-selectable. Disconnect power and follow the installation instructions before changing settings.

This orderable configuration uses 120–277V AC and supports compatible 0–10V dimming. Alternative voltage versions mentioned in generic series literature are not included in this offer.

A mounting pole is not listed as included. Confirm a compatible 3-inch pole tenon, mechanical capacity and local installation requirements before ordering.

1-Pack contains one fixture, 2-Pack contains two fixtures, and 4-Pack contains four fixtures. Wattage and CCT settings are not additional fixtures.
