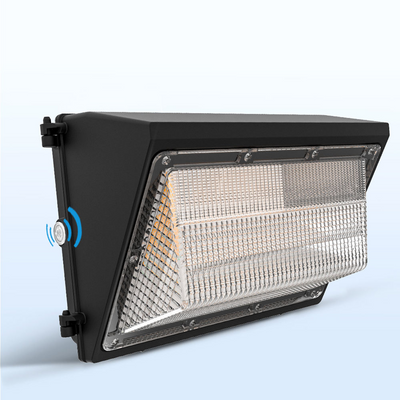

Selectable commercial LED wall pack with prismatic lens and bronze housing

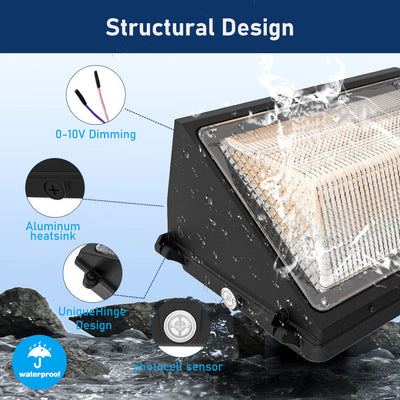

LED wall pack structural design with 0-10V dimming, aluminum housing and photocell

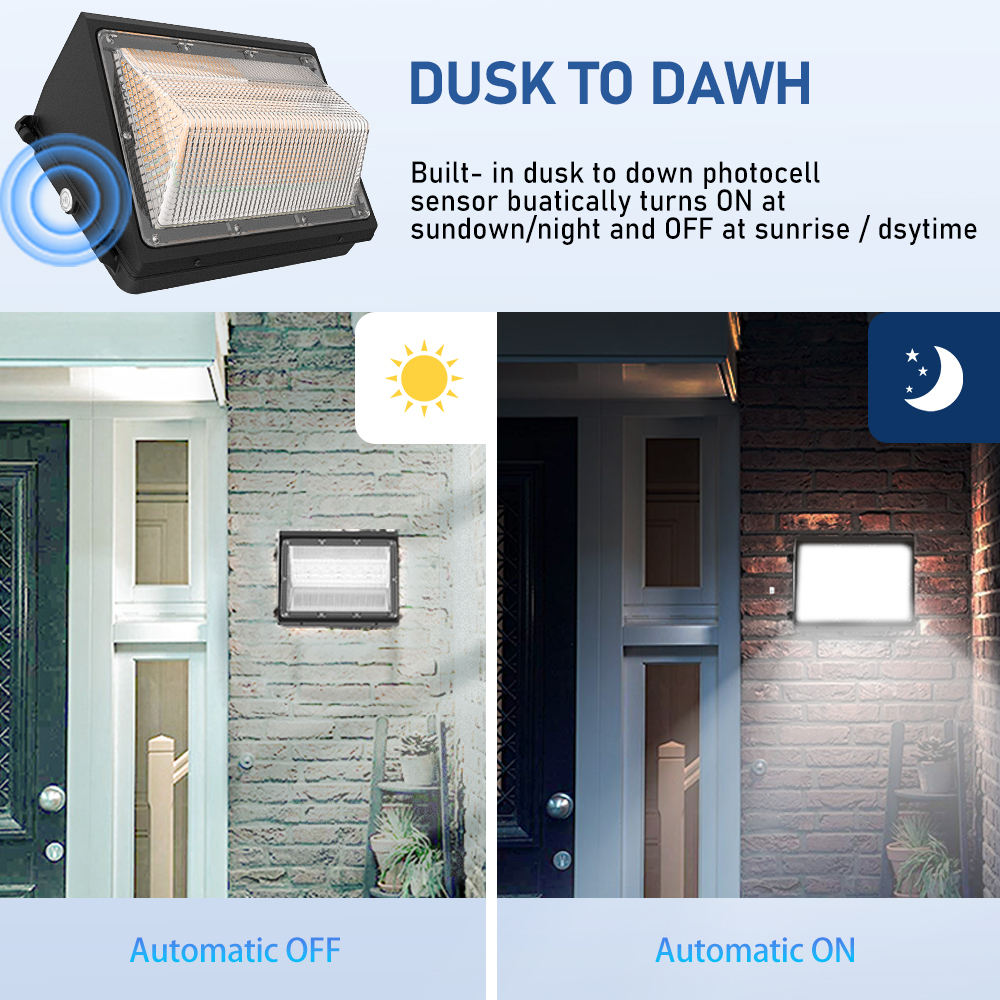

Dusk-to-dawn LED wall pack shown on exterior walls during day and night

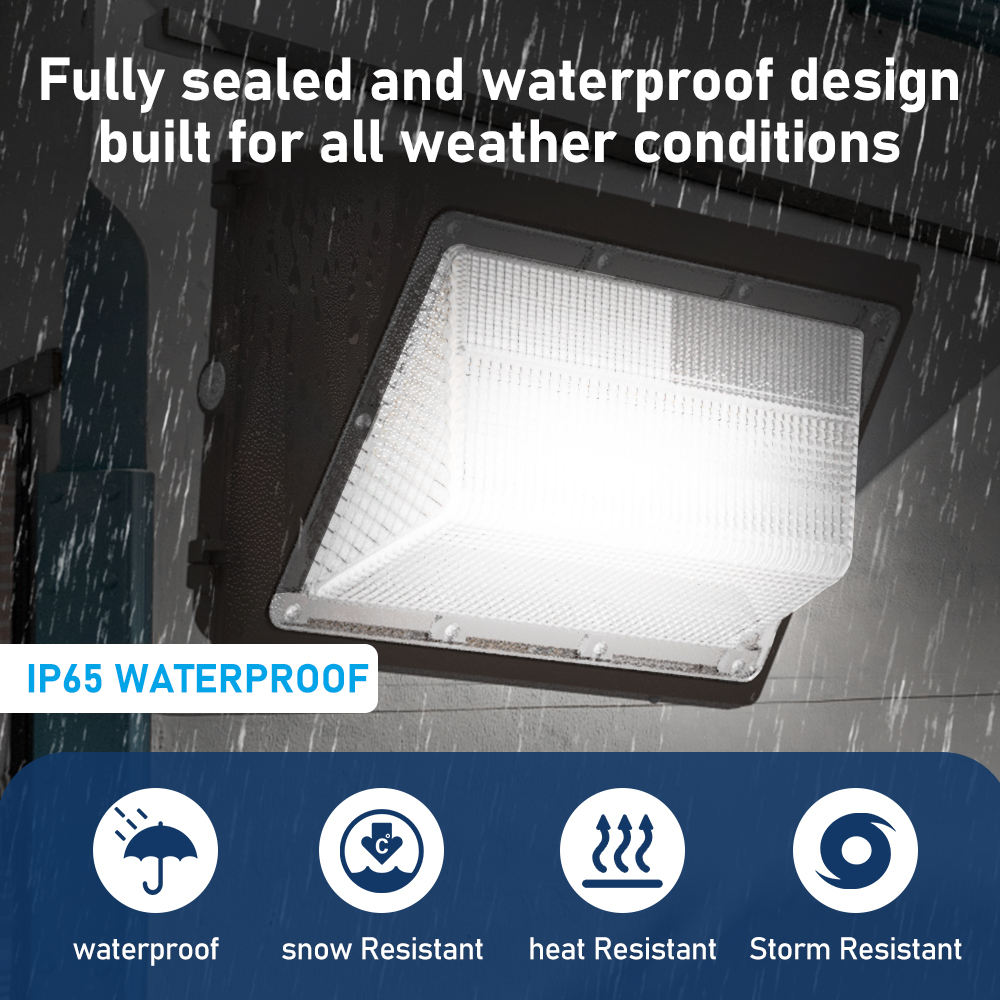

IP65 LED wall pack operating outdoors in rain and snow
Selectable commercial LED wall pack with prismatic lens and bronze housing
LED wall pack structural design with 0-10V dimming, aluminum housing and photocell
Dusk-to-dawn LED wall pack shown on exterior walls during day and night
IP65 LED wall pack operating outdoors in rain and snow
 1 of 4

80/60/45W LED Wall Pack, 3CCT Selectable, Photocell, 0-10V Dimmable

SKU: L-0119-1PK
Sale price $104.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
12,336 lm max
Wattage:
80W / 60W / 45W
Voltage:
AC120-277V
Dimming:
0-10V
Location:
Wet Location
Warranty:
5-Year
LED Wall Pack: 80W 3CCT
Selectable commercial LED wall pack with prismatic lens and bronze housing LED wall pack structural design with 0-10V dimming, aluminum housing and photocell
80W 3CCT
80W 3CCT
Selectable commercial LED wall pack with prismatic lens and bronze housing LED wall pack structural design with 0-10V dimming, aluminum housing and photocell
120W 3CCT
120W 3CCT
Pack Size: 1-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
80/60/45W LED Wall Pack, 3CCT Selectable, Photocell, 0-10V Dimmable
80/60/45W LED Wall Pack, 3CCT Selectable, Photocell, 0-10V Dimmable 1-Pack
Total for selected quantity Sale price $104.99
0

Specifications

Lumens 12,336 lm max
Wattage 80W, 60W, 45W
Voltage AC120-277V
Dimming 0-10V
Operating Temperature -40°F to 113°F
Color Temperature 3000K, 4000K, 5000K
CRI >70
IP Rating IP65
Location Rating Wet Location
Product Dimensions 14.21 × 9.27 × 6.92 in.
Certifications UL Listed FCC Compliant RoHS Compliant 5‑Year Warranty
Rated Life >50,000 hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
power factor >0.9

Downloads

Download Spec Sheet

Selectable LED Wall Pack for Commercial Exterior Lighting

This commercial LED wall pack combines 80W, 60W and 45W field-selectable power with a maximum output of 12,336 lumens. Three selectable color temperatures, a built-in photocell and 0-10V dimming give contractors one fixture for multiple exterior lighting requirements.

The traditional wall-pack form installs on a standard junction box and is suited to building perimeters, service areas, loading zones, walkways and other wet-location applications. Its die-cast housing and UV-resistant polycarbonate lens are designed for dependable outdoor use.

80W / 60W / 45WField-selectable output for different mounting and coverage requirements.
Up to 12,336 LumensHigh-output illumination at the maximum power setting.
3000K / 4000K / 5000KChoose warm, neutral or daylight appearance during installation.
Built-In PhotocellSupports automatic dusk-to-dawn operation.

Field-Selectable Power and CCT

Configure the fixture for 80W, 60W or 45W and select 3000K, 4000K or 5000K before completing installation. The selectable platform helps standardize inventory across renovation and new-construction projects.

3000K4000K5000K
Disconnect power before opening the fixture or changing selector settings.

Outdoor Installation and Lighting Control

Junction-Box Mounting

The retained traditional mounting method supports installation over a compatible recessed junction box. Seal the wall interface as directed in the installation instructions.

Photocell and 0-10V Dimming

The integrated photocell supports dusk-to-dawn control, while 0-10V wiring allows compatible low-voltage dimming control.

Project-Ready Features

  • Wet-location construction: IP65 protection for outdoor commercial installations.
  • Broad input range: Designed for 120-277V AC branch circuits.
  • Durable optics: UV-resistant polycarbonate lens supports even light distribution.
  • Service planning: More than 50,000 hours rated life and a 5-year limited warranty.

Fit and Electrical Compatibility

Fixture Dimensions

Approximate fixture size is 14.21 × 9.27 × 6.92 inches. Verify the mounting surface and junction-box position before installation.

Controls

Use a compatible 0-10V control system when dimming is required. Position the photocell where it can detect natural daylight.

Installation must follow the supplied instructions and applicable electrical codes.

Frequently Asked Questions About This Product

Can the wattage be selected in the field?

Yes. Select 80W, 60W or 45W before completing installation.

The fixture provides 3000K, 4000K and 5000K selectable settings.

Yes. A built-in photocell supports automatic nighttime operation.

Yes. It supports compatible 0-10V dimming controls.

Yes. It is IP65 rated and identified for wet-location use when installed correctly.
