LED Post Top Light, 50-150W Selectable, 3CCT, 120-277V, IP65
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
- Wattage:
- 50W / 80W / 100W / 120W / 150W
- Voltage:
- 120-277V AC
- Location:
- Wet Rated
- Warranty:
- 5-Year
Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
Specifications
Downloads
Selectable LED Post Top Light for Outdoor Paths and Shared Spaces
This LED post top light brings adjustable wattage and color temperature to pole-mounted lighting projects. Choose from five power settings and three CCT settings in one fixture, with a published luminous efficacy of 150 lm/W and a 120-277V AC input range.

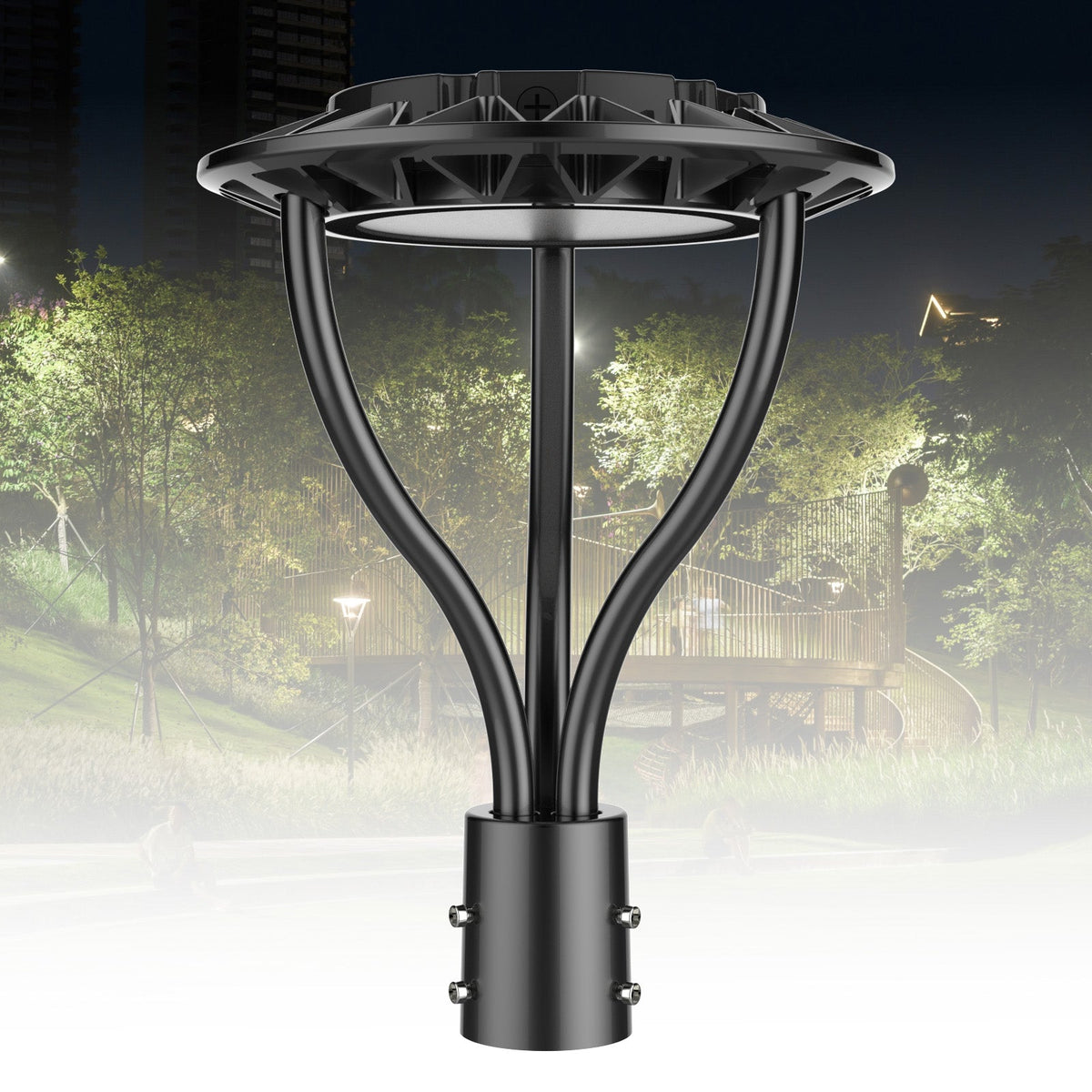

Designed for parks, yards, bicycle paths and parking areas, the open support-frame design provides a defined architectural profile. Its IP65 and wet-location ratings support outdoor applications, while accessible selection switches help installers configure the fixture for the project.
Set the Wattage and Light Color on Site
Independent wattage and CCT switches allow the installer to select the power level and appearance of the light. Use 3000K for a warmer appearance, 4000K for a neutral appearance or 5000K for a cooler appearance. Select the power setting to suit the lighting plan and mounting conditions.
Post Mounting and Local Controls
Assembled Support Frame

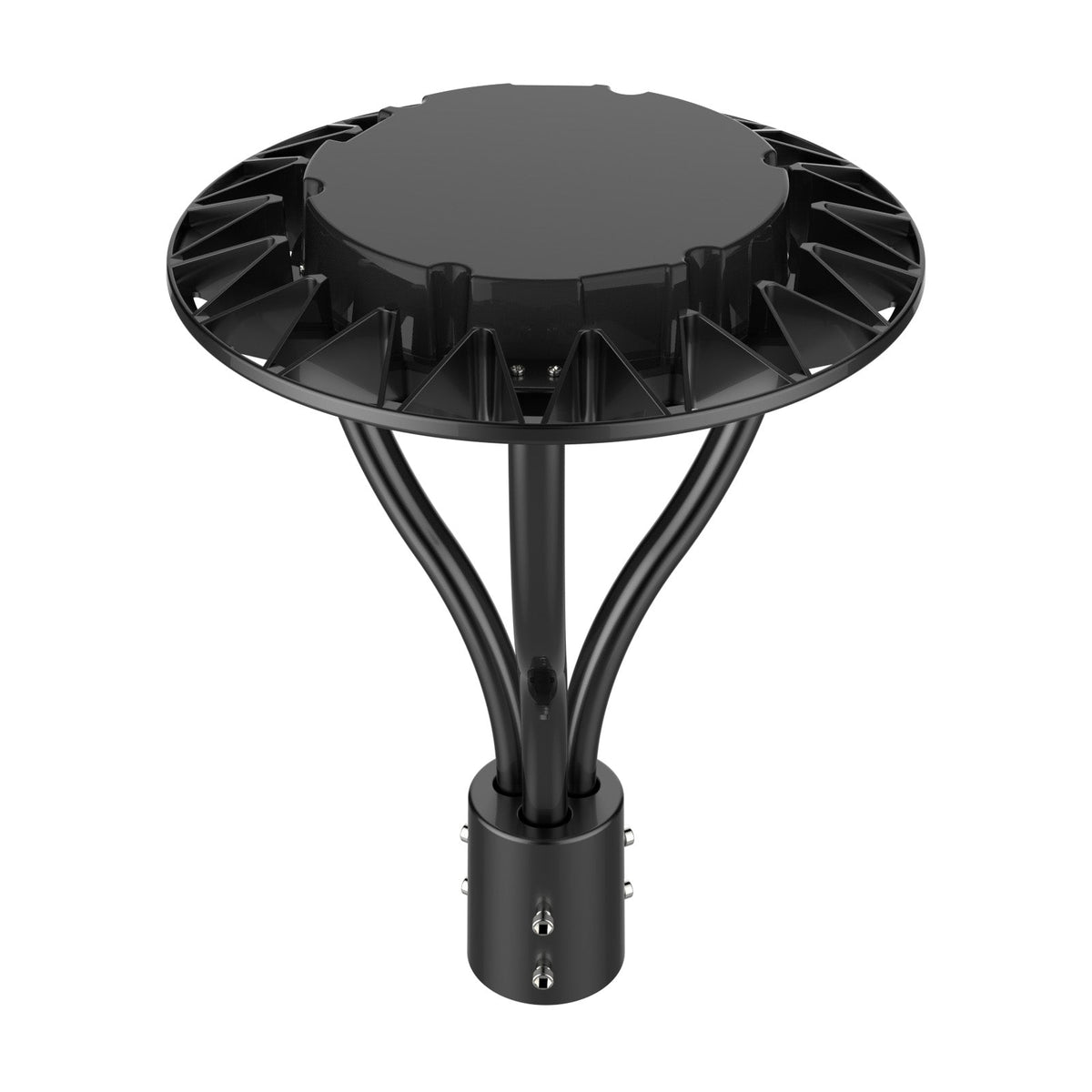

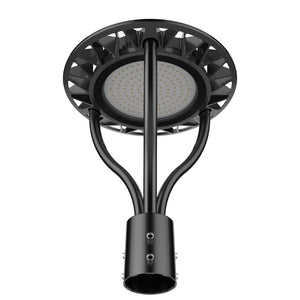

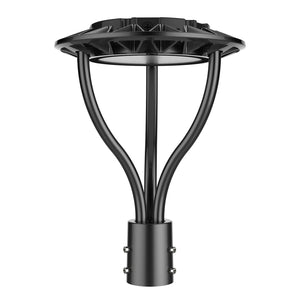

Three S-type support rods connect the luminaire to the round pole bracket. The supplied installation diagram shows cable routing through a support rod, assembly with M4 screws and attachment to the pole with M8 screws. Check the pole and bracket fit before installation.
Switchable Light Sensor
The fixture includes an on/off light-sensor switch beside the wattage and CCT controls. Set the sensor configuration to suit the site. Use the wiring diagram supplied in the downloadable document when connecting line, neutral and protective ground.
Project-Ready Features
- Field configuration: Select power and CCT independently without choosing a different fixture for each setting.
- Outdoor applications: Suitable application examples include paths, parks, yards and parking areas.
- Pole installation: The application guidance identifies 3-6 m poles; determine spacing and illumination through the project lighting design.
- Documented assembly: Parts identification, assembly illustrations and the wiring diagram are included in the downloadable specification.
Fit and Electrical Compatibility
Check Pole and Fixture Clearance
The dimension drawing shows a 361.5 mm fixture diameter and a 488.5 mm overall height. Confirm the actual pole interface, cable routing and surrounding clearance against the installation drawing before ordering or mounting.
Confirm Supply and Site Conditions
Use a compatible 120-277V AC supply. The specified operating temperature is -4°F to 104°F. Installation and maintenance must be completed by an electrician or qualified professional. Do not cover the fixture with thermal insulation.
