60/50/40/30/20W Selectable LED Post Top Light, 3CCT, Photocell

SKU: G-0035-1PK
Sale price $219.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
Up to 9,030 lm
Wattage:
60W / 50W / 40W / 30W / 20W
Voltage:
120-277V AC
Dimming:
0-10V
Location:
Wet Location
Warranty:
5-Year
LED post top light: 60W
Black 60/50/40/30/20W selectable LED post top light with circular downlight head LED post top lights illuminating outdoor walkways with 0-10V dimming
60W
60W
Black 150/120/100/80/70W selectable LED post top light with circular downlight head High-output LED post top lights illuminating outdoor walkways with 0-10V dimming
150W
150W
Pack Size: 1-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
60/50/40/30/20W Selectable LED Post Top Light, 3CCT, Photocell
60/50/40/30/20W Selectable LED Post Top Light, 3CCT, Photocell 1-Pack
Total for selected quantity Sale price $219.99
0

Specifications

Lumens Up to 9,030 lm
Wattage 60W, 50W, 40W, 30W, 20W
Voltage 120-277V AC
Dimming 0-10V
Operating Temperature -40°F to 113°F
Color Temperature 3000K, 4000K, 5000K
Location Rating Wet Location
Mounting Type 3 in. Pole Tenon Mount
Product Dimensions Ø14.23 in. × 19.23 in. H
Certifications UL Listed FCC Compliant RoHS Compliant 5‑Year Warranty
Rated Life >50,000 Hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
finish Black
housing material Die-Cast Aluminum
photocell included Yes
pole tenon diameter 3 in.

Downloads

Download Spec Sheet

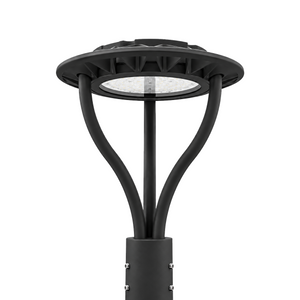

Selectable LED Post Top Light for Outdoor Walkways

This LED post top light has five field-selectable wattages from 20W to 60W, with up to 9,030 lumens at the maximum setting. Choose 3000K, 4000K or 5000K to coordinate lighting across a project.

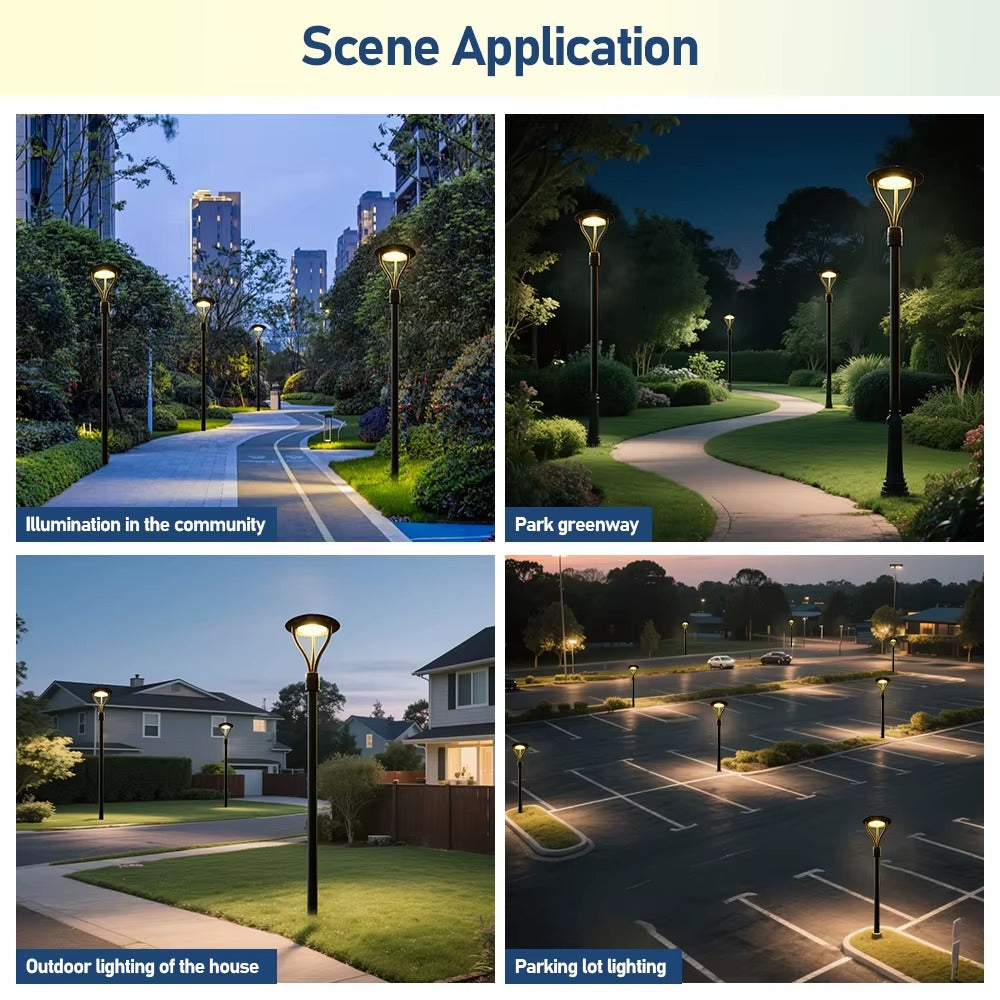

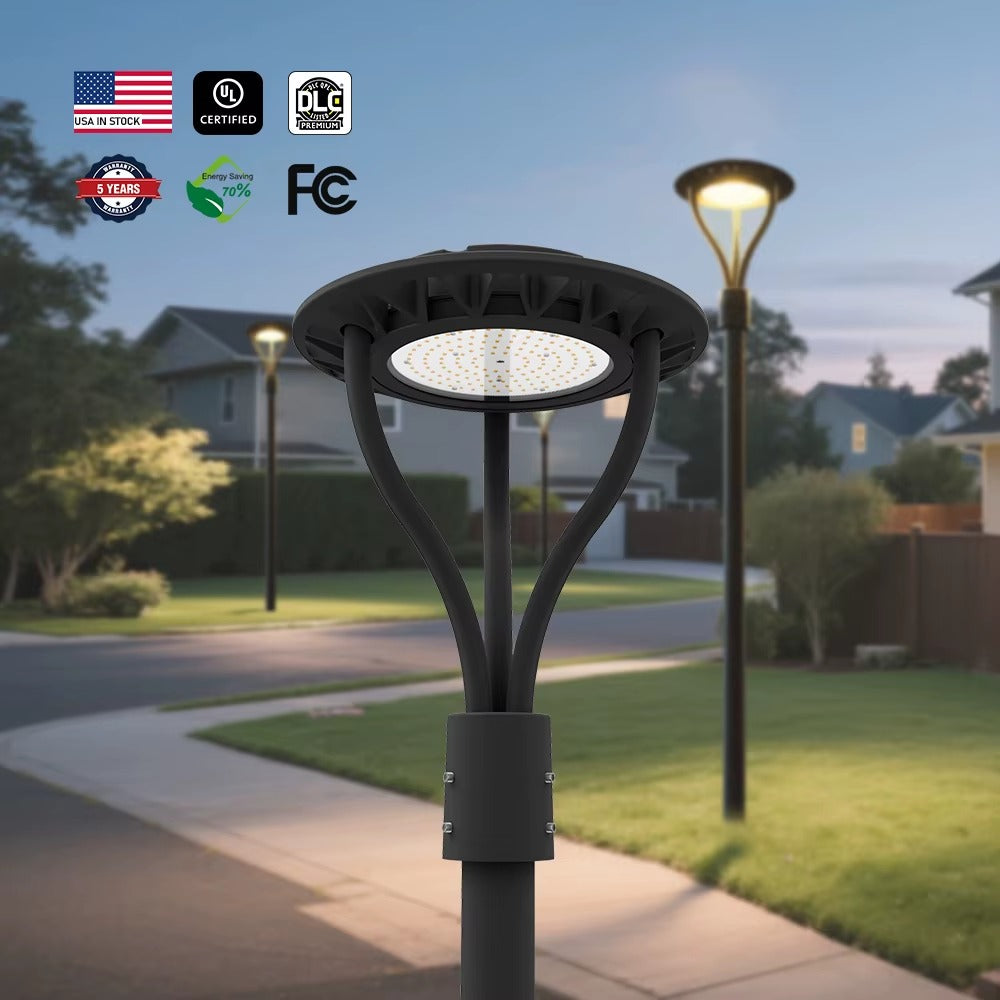

Its low-profile black housing fits a compatible 3-inch pole tenon for pathways, campuses, parking areas and other outdoor public spaces. An included photocell supports automatic dusk-to-dawn operation.

20W–60W SelectableSet output on site for the mounting location.
Up to 9,030 LumensPublished maximum-output figure.
3CCT Selectable3000K, 4000K or 5000K.
Photocell IncludedSupports dusk-to-dawn control.

Configure the LED Post Top Light on Site

Choose 60W, 50W, 40W, 30W or 20W and set the desired color temperature using the fixture's selectors before completing installation.

3000K4000K5000K
Turn off power before opening the luminaire or changing selector positions.

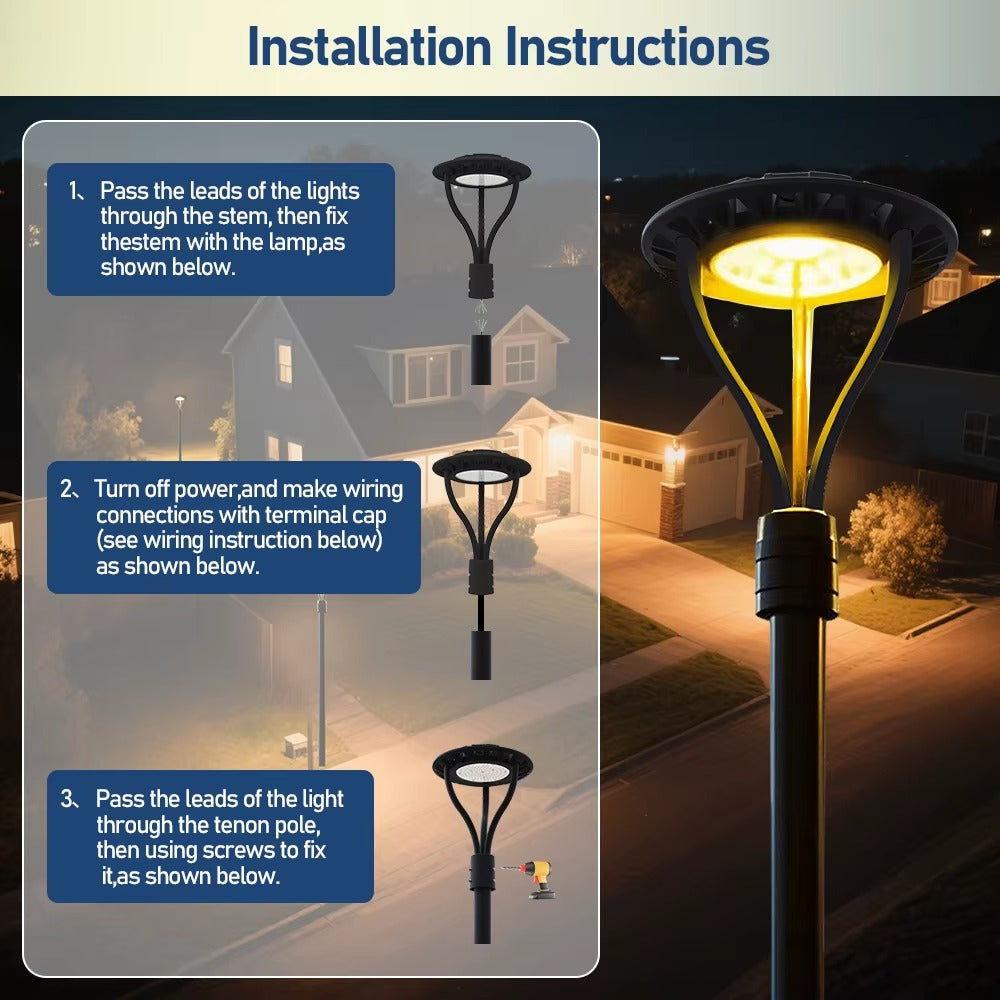

Pole Installation and Controls

Tenon Mount

Route the leads through a compatible 3-inch maximum-diameter post and secure the fixture following the installation diagram.

Photocell and Dimming

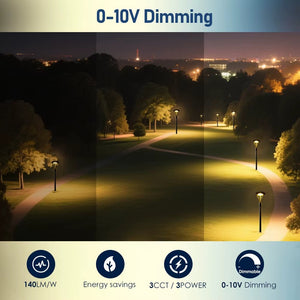

Use the included photocell for automatic night lighting or connect the dimming leads to a compatible 0-10V control system.

Project-Ready Features

  • Wet-location use: Suitable for exposed outdoor installations.

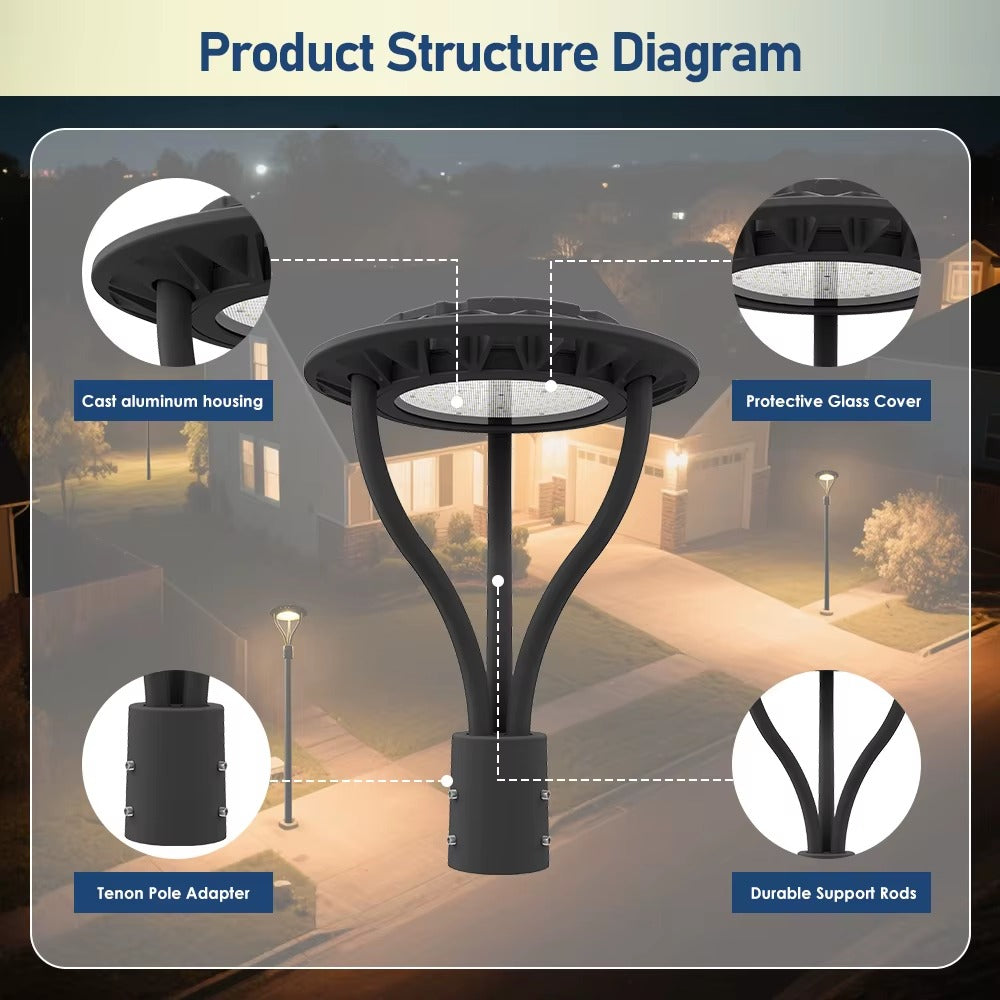

  • Housing: One-piece die-cast aluminum with black powder-coated finish.
  • Service planning: Published lifespan exceeds 50,000 hours.
  • Electrical input: This offer uses 120-277V AC.

Fit and Electrical Compatibility

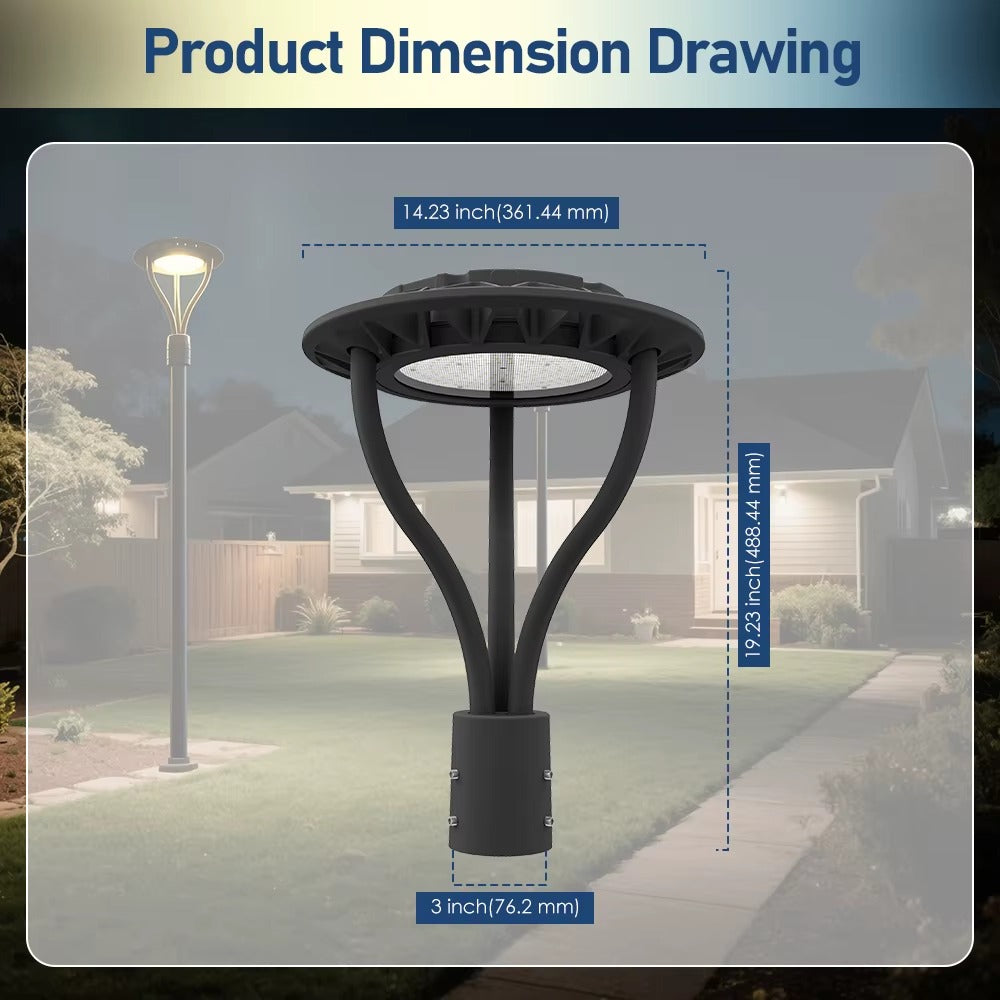

Fixture Dimensions

Approximately 14.23 inches in diameter and 19.23 inches high. Confirm clearances and tenon dimensions.

Control Wiring

Check 120-277V branch supply, photocell exposure and 0-10V wiring against the actual installed control.

Pole and control system are not listed as included. Installation must follow the supplied wiring diagram and local code.

Frequently Asked Questions About This Product

Does this fixture include a photocell?

Yes. The photocell is included in this orderable configuration; an optional occupancy sensor is not included.

Yes. 60W, 50W, 40W, 30W and 20W and 3000K, 4000K or 5000K are field-selectable. Disconnect power and follow the installation instructions before changing settings.

This orderable configuration uses 120–277V AC and supports compatible 0–10V dimming. Alternative voltage versions mentioned in generic series literature are not included in this offer.

A mounting pole is not listed as included. Confirm a compatible 3-inch pole tenon, mechanical capacity and local installation requirements before ordering.

1-Pack contains one fixture, 2-Pack contains two fixtures, and 4-Pack contains four fixtures. Wattage and CCT settings are not additional fixtures.
