120/100/80W Full Cutoff LED Wall Pack, 3CCT, Photocell, 0-10V Dimmable
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
- Lumens:
- 16,800 lm max
- Wattage:
- 120W / 100W / 80W
- Voltage:
- AC120-277V
- Dimming:
- 0-10V
- Location:
- Wet Location
- Warranty:
- 5-Year
Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
Specifications
Downloads

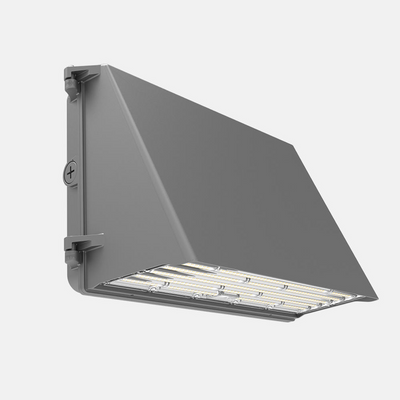

High-Output Full Cutoff LED Wall Pack
This commercial full cutoff LED wall pack offers selectable 120W, 100W and 80W operation with up to 16,800 lumens. The shielded housing directs illumination downward for building perimeters, loading zones, walkways and exterior service areas.
Field-selectable 3000K, 4000K and 5000K settings support consistent site appearance. A built-in photocell provides dusk-to-dawn operation, while 0-10V dimming supports integration with compatible lighting controls.
Selectable Output and Light Color
Set the wattage and color temperature during installation to match mounting height, target illuminance and surrounding properties.
Wet-Location Installation and Control
Wall Mounting
Installs over a compatible recessed junction box using the supplied gasket and mounting hardware.
Control Options
The included photocell supports dusk-to-dawn operation. Compatible 0-10V controls can be connected using the dedicated dimming leads.
Project-Ready Features
- IP65 protection: Wet-location construction for commercial exteriors.
- Selectable platform: Three wattages and three CCT settings.
- Broad input: 120-277V AC.
- Long service plan: More than 50,000 hours rated life and 5-year limited warranty.
Fit and Compatibility
Fixture Dimensions
Approximate dimensions are 14.24 × 9.27 × 7.27 inches.
Electrical Compatibility
Designed for 120-277V AC and compatible 0-10V control systems.
