120/100/80/60/40W Full Cutoff LED Wall Pack, Emergency-Ready, 3CCT
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
- Lumens:
- 16,800 lm max
- Wattage:
- 120W / 100W / 80W / 60W / 40W
- Voltage:
- AC120-277V
- Dimming:
- 0-10V
- Location:
- Wet Location
- Warranty:
- 5-Year
Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
Specifications
Downloads
Emergency-Ready Full Cutoff LED Wall Pack
This full cutoff LED wall pack combines five selectable settings—120W, 100W, 80W, 60W and 40W—with up to 16,800 lumens. The extended power range helps contractors apply one housing across high-output perimeter zones and lower-output entrances or walkways.
A DC12V connection supports use with the compatible 8W emergency driver sold separately. The fixture also includes selectable 3000K, 4000K and 5000K color temperatures, a built-in photocell and 0-10V dimming.
Five-Level Field Configuration
Select the required output and color temperature before completing installation. The wide adjustment range supports standardized purchasing across multiple exterior zones.
Emergency and Normal-Power Planning
DC12V Accessory Connection
The designated DC-side connection supports the compatible 8W, 90-minute emergency driver. Follow both wiring diagrams.
Photocell and Dimming
Normal operation includes a built-in photocell and compatible 0-10V dimming on a 120-277V AC supply.
Project-Ready Features
- Flexible output: Five selectable wattages.
- Emergency compatibility: DC12V connection for the specified driver.

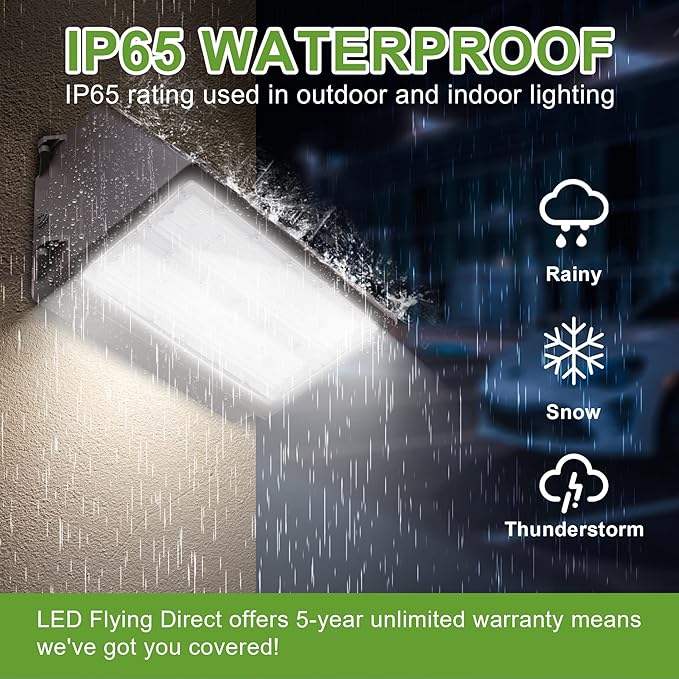

- Exterior protection: IP65 wet-location construction.
- Long-term coverage: More than 50,000 hours rated life and 5-year limited warranty.
Fit and Compatibility
Fixture Dimensions
Approximate dimensions are 14.24 × 9.27 × 7.27 inches.
System Compatibility
Verify the AC branch circuit, 0-10V control, DC12V emergency connection and accessory-driver wiring before installation.
