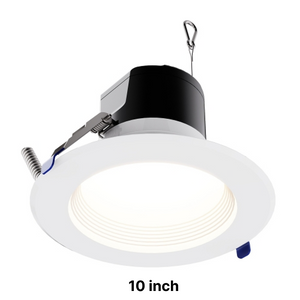

10 inch commercial LED downlight with white trim and spring clips
10 inch LED downlight adjustable color temperature graphic in a living room
Commercial recessed LED downlight with selectable settings in an interior
Commercial downlight brightness and 0-10V dimming illustration
Recessed LED downlight installation steps and application scenes
Commercial LED downlight shown above a bright interior space
White baffle trim downlight and glare comparison graphic
10 inch commercial LED downlight with white trim and spring clips
10 inch LED downlight adjustable color temperature graphic in a living room
Commercial recessed LED downlight with selectable settings in an interior
Commercial downlight brightness and 0-10V dimming illustration
Recessed LED downlight installation steps and application scenes
Commercial LED downlight shown above a bright interior space
White baffle trim downlight and glare comparison graphic
 1 of 7

10 Inch Commercial LED Downlight, 40W Max, 5CCT Selectable

SKU: NG-DNL-40W-4PK
Sale price $219.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
5,000 lm max
Wattage:
40W / 30W / 20W
Voltage:
120-347V AC
Dimming:
0-10V
Warranty:
5-Year
LED Downlight NGT: 10 Inch
6 inch commercial LED downlight with white trim and spring clips 6 inch LED downlight adjustable color temperature graphic in a living room
6 Inch
6 Inch
8 inch commercial LED downlight with white trim and spring clips 8 inch LED downlight adjustable color temperature graphic in a living room
8 Inch
8 Inch
10 inch commercial LED downlight with white trim and spring clips 10 inch LED downlight adjustable color temperature graphic in a living room
10 Inch
10 Inch
Pack Size: 4-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
10 Inch Commercial LED Downlight, 40W Max, 5CCT Selectable
10 Inch Commercial LED Downlight, 40W Max, 5CCT Selectable 4-Pack
Total for selected quantity Sale price $219.99
0

Specifications

Lumens 5,000 lm max
Wattage 40W, 30W, 20W
Voltage 120-347V AC
Dimming 0-10V
Color Temperature 2700K, 3000K, 3500K, 4000K, 5000K
Mounting Type Recessed ceiling with spring clips
Certifications ETL Listed 5‑Year Warranty CE Compliant
Rated Life 50,000 hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
ballast compatibility Not applicable
wire connection Hardwired

Downloads

Download Spec Sheet

Designed for larger commercial ceiling openings and higher-output applications, this 10-inch LED downlight provides three selectable wattages in one fixture. Choose 40W, 30W or 20W to match different room functions and target illumination levels.

Five color temperatures from 2700K to 5000K cover warm hospitality settings, neutral office environments and bright task areas. A 120-347V input and 0-10V dimming support broad commercial project compatibility.

Commercial Lighting Flexibility

Three wattage settings

Select 40W, 30W or 20W to commission the fixture for each space.

Five color temperatures

Choose 2700K, 3000K, 3500K, 4000K or 5000K.

Commercial controls

0-10V dimming supports compatible lighting-control strategies.

Up to 5,000 lumens

High-output performance supports larger commercial rooms and ceiling layouts.

Selectable Output and Color

Choose from 40W, 30W, 20W and match the space with the required color temperature.

2700K3000K3500K4000K5000K

Installation and Performance

  • Recessed commercial design secures with spring clips.
  • Coordinate 120-347V line voltage and optional 0-10V control wiring.
  • Confirm the required cutout, housing clearance and ceiling construction before ordering.

Project-Ready Features

  • 4, 8 and 16-pack variants suit carton-based purchasing and phased projects.
  • Selectable output and CCT reduce the need to pre-sort fixtures by room type.
  • 50,000-hour rated life and a five-year warranty support lifecycle planning.

Fit and Compatibility

This is a nominal 10-inch product. Exact cutout and housing dimensions were not confirmed in the supplied table. Review the final installation drawing before purchase or ceiling work.

Professional installation is recommended. Confirm compatibility, dimensions and local electrical requirements before ordering.

Frequently Asked Questions About This Product

What wattages can I select?

The available settings are 40W, 30W and 20W.

The fixture offers 2700K, 3000K, 3500K, 4000K and 5000K.

The supplier page lists a maximum output of 5,000 lumens.

Yes. Use a compatible 0-10V control and follow the supplied wiring diagram.

Verify the ceiling cutout, housing clearance, branch voltage and control system. Nominal 10-inch size does not confirm the exact opening dimension.
