8 Inch Commercial LED Downlight, 36W Max, 5CCT Selectable

SKU: NG-DNL-36W-4PK
Sale price $194.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
3,960 lm max
Wattage:
36W / 27W / 18W
Voltage:
120-347V AC
Dimming:
0-10V
Warranty:
5-Year
LED Downlight NGT: 8 Inch

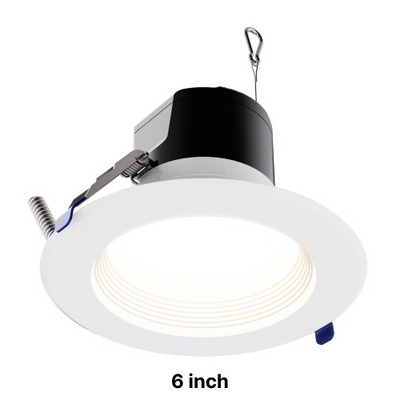

6 inch commercial LED downlight with white trim and spring clips 6 inch LED downlight adjustable color temperature graphic in a living room
6 Inch
6 Inch
8 inch commercial LED downlight with white trim and spring clips 8 inch LED downlight adjustable color temperature graphic in a living room
8 Inch
8 Inch
10 inch commercial LED downlight with white trim and spring clips 10 inch LED downlight adjustable color temperature graphic in a living room
10 Inch
10 Inch
Pack Size: 4-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
8 Inch Commercial LED Downlight, 36W Max, 5CCT Selectable
8 Inch Commercial LED Downlight, 36W Max, 5CCT Selectable 4-Pack
Total for selected quantity Sale price $194.99
0

Specifications

Lumens 3,960 lm max
Efficacy 110 lm/W
Wattage 36W, 27W, 18W
Voltage 120-347V AC
Dimming 0-10V
Color Temperature 2700K, 3000K, 3500K, 4000K, 5000K
Mounting Type Recessed ceiling with spring clips
Certifications ETL Listed 5‑Year Warranty CE Compliant
Rated Life 50,000 hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
ballast compatibility Not applicable
wire connection Hardwired

Downloads

Download Spec Sheet

Use one 8-inch commercial downlight platform across spaces with different output and color requirements. Select 36W, 27W or 18W to address higher ceilings, circulation areas and customer-facing rooms without creating separate fixture schedules.

Five selectable CCT settings from 2700K to 5000K support warm hospitality environments through crisp commercial task lighting. The 120-347V input and 0-10V dimming suit a wide range of project electrical and control plans.

Commercial Lighting Flexibility

Three output levels

Set the fixture to 36W, 27W or 18W for room-specific performance.

Five selectable CCTs

Choose 2700K, 3000K, 3500K, 4000K or 5000K.

0-10V dimming

Pair with a compatible control for adjustable light levels.

Up to 3,960 lumens

Published efficacy is 110 lm/W at the maximum output setting.

Selectable Output and Color

Choose from 36W, 27W, 18W and match the space with the required color temperature.

2700K3000K3500K4000K5000K

Installation and Performance

  • Recessed commercial design uses spring clips for ceiling retention.
  • Plan both line-voltage and low-voltage 0-10V control wiring where dimming is required.
  • Verify the approved cutout and above-ceiling clearance before ordering.

Project-Ready Features

  • 4, 8 and 16-pack variants match the four-piece carton structure.
  • Selectable output and CCT make one fixture adaptable across a multi-room project.
  • 50,000-hour rated life and a five-year warranty support long-term facility programs.

Fit and Compatibility

The product is identified as a nominal 8-inch commercial downlight. Exact cutout and housing dimensions were not confirmed in the supplied table, so the installation drawing must be checked before purchase.

Professional installation is recommended. Confirm compatibility, dimensions and local electrical requirements before ordering.

Frequently Asked Questions About This Product

Which wattage settings are included?

The fixture can be set to 36W, 27W or 18W.

Choose 2700K, 3000K, 3500K, 4000K or 5000K.

Yes. The published input range is 120-347V AC.

Yes. It supports 0-10V dimming with a compatible control system.

No. The nominal fixture size is not the same as the required cutout. Confirm the installation drawing before cutting the ceiling or ordering.
