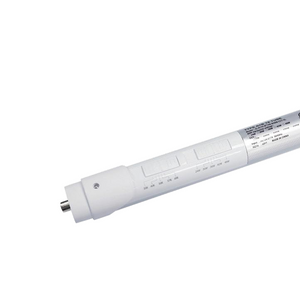

3FT LED T8 Tube Light, 16W Max, Type A+B, 5CCT Selectable

SKU: SS-T8-TAB-16W-3FT-30PACK-FR
Regular price $253.00 Sale price $192.60
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
2429 lm Max
Wattage:
6W / 8W / 10W / 12W / 16W
Voltage:
120–277V
Location:
Dry & Damp Indoor
Warranty:
5-Year
Size: 3FT
2FT Type A+B LED T8 tube light with 5CCT and selectable wattage 2FT Type A+B LED T8 tube light product overview
2FT
2FT
3FT Type A+B LED T8 tube light with 5CCT and selectable wattage 3FT Type A+B LED T8 tube light product overview
3FT
3FT
4FT Type A+B LED T8 tube light with 5CCT and selectable wattage 4FT Type A+B LED T8 tube light product overview
4FT
4FT
8FT Type A+B LED T8 tube light with 5CCT and selectable wattage 8FT Type A+B LED T8 tube light product overview
8FT
8FT
Cover: Frosted
Pack Size: 30-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
3FT LED T8 Tube Light, 16W Max, Type A+B, 5CCT Selectable
3FT LED T8 Tube Light, 16W Max, Type A+B, 5CCT Selectable Frosted / 30-Pack
Total for selected quantity Sale price $192.60
0

Specifications

Lumens 2429 lm Max
Efficacy 130 lm/W
Wattage 6W, 8W, 10W, 12W, 16W
Voltage 120–277V
Operating Temperature 4°F–113°F (-20°C–45°C)
Color Temperature 3500K, 4000K, 5000K, 5700K, 6500K
CRI >80
Beam Angle 120°
IP Rating IP20
Location Rating Dry & Damp Indoor
Product Dimensions Overall Length: 894 mm / 35.2 in
Certifications ETL Listed DLC Premium FCC Compliant
Rated Life >50,000 Hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
ballast compatibility Type A+B; compatible with most instant- and programmed-start electronic T8 ballasts
base type G13
Input Frequency 50/60Hz
power factor >0.95
THD <20%
wire connection Single-End or Double-End

Downloads

Download Spec Sheet

3FT LED T8 Tube Light – Type A+B Selectable

This 3FT LED T8 tube provides selectable 6W/8W/10W/12W/16W output and five selectable color temperatures for commercial fluorescent retrofit projects. Type A+B compatibility gives installers the flexibility to use a compatible ballast or convert the fixture to ballast-bypass operation.

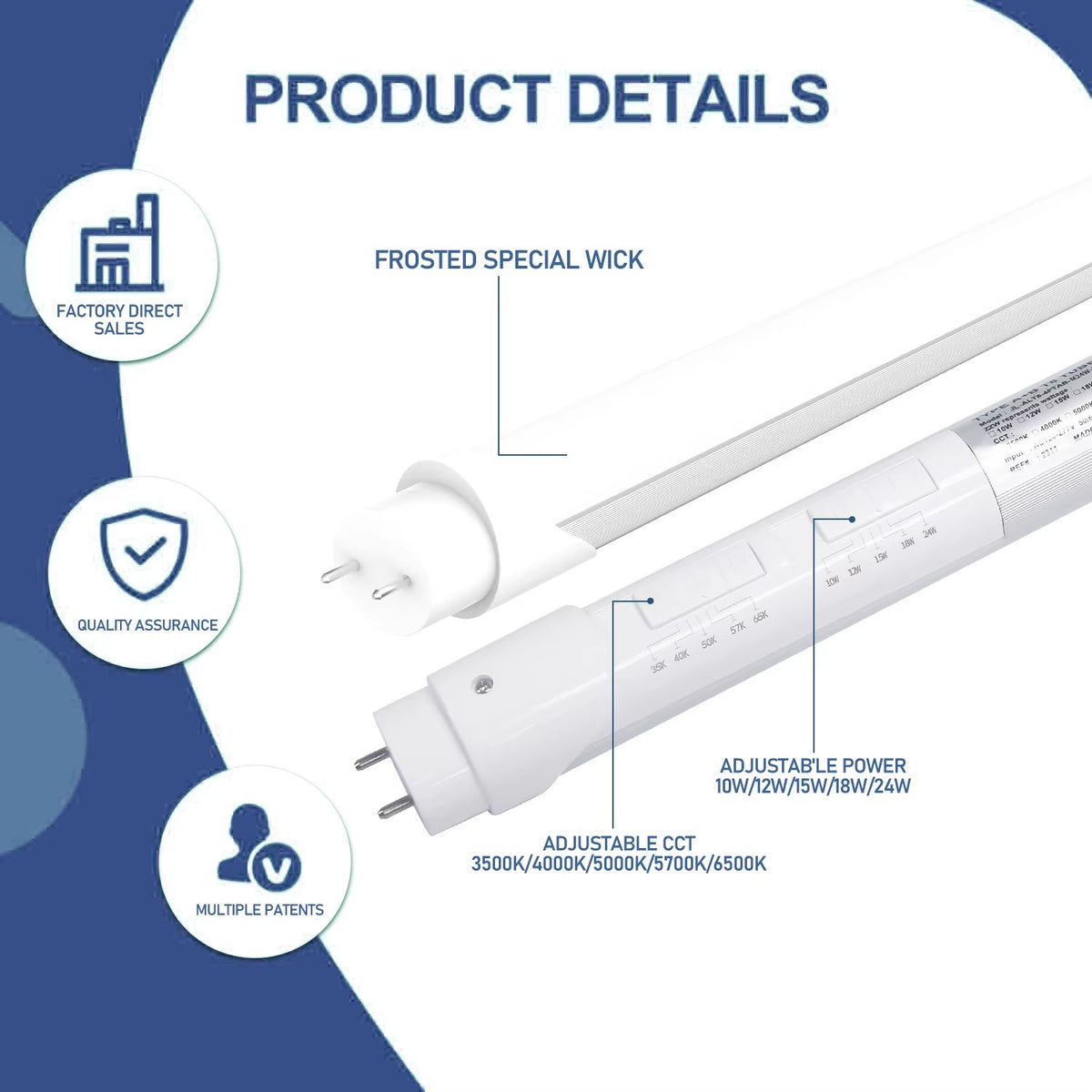

Key Features

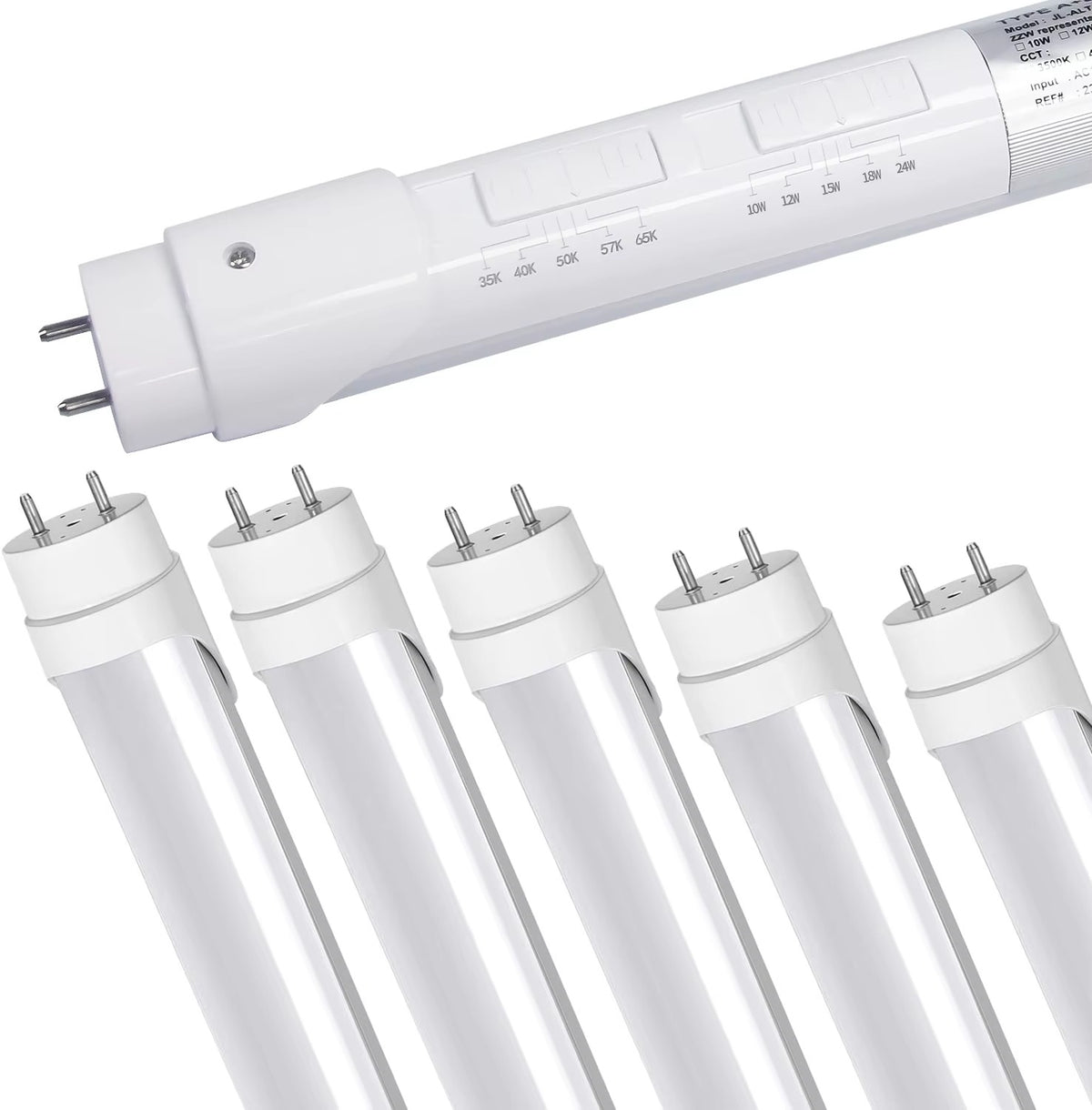

  • 6/8/10/12/16W selectable wattage
  • Up to 2,429 lumens

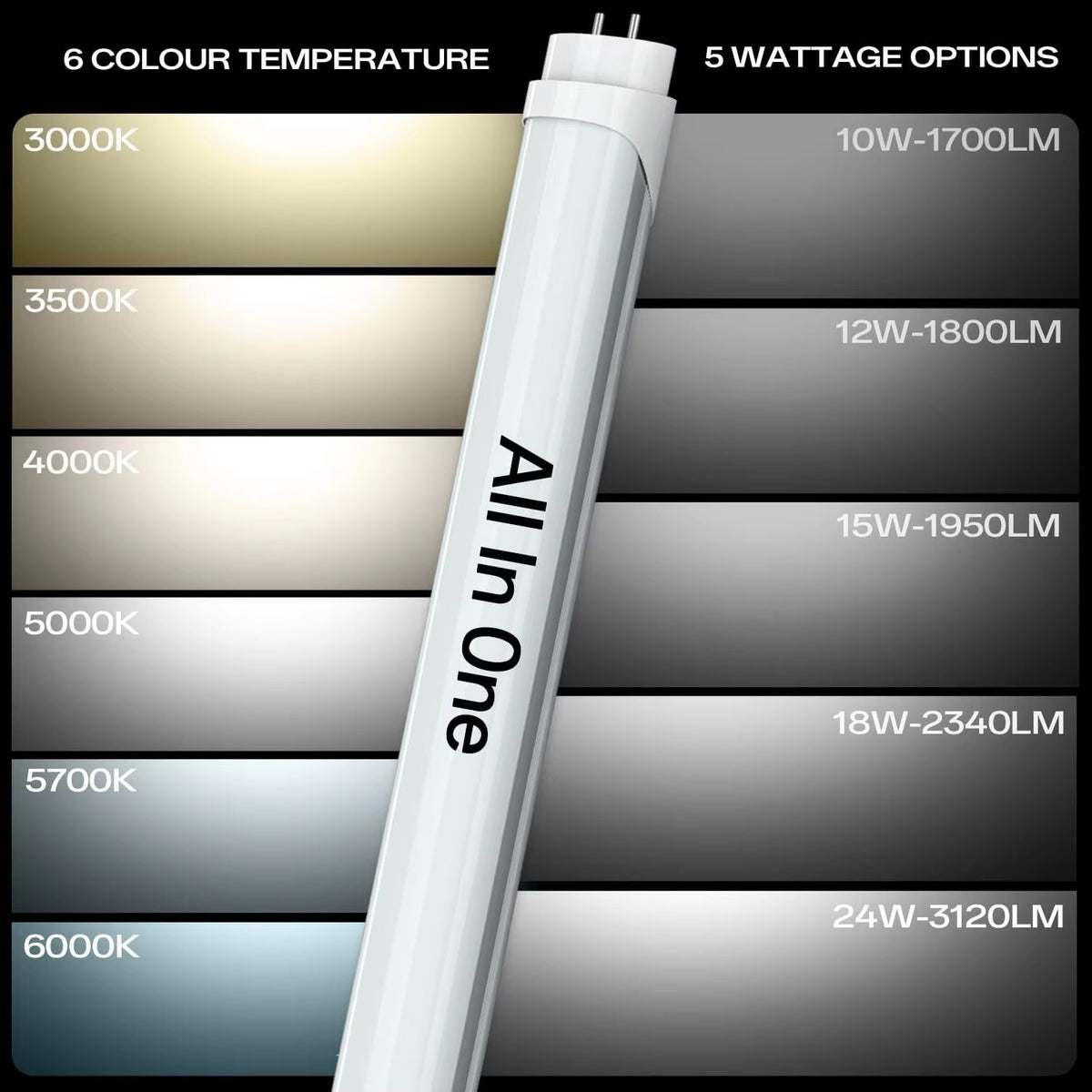

  • 3500K/4000K/5000K/5700K/6500K selectable CCT
  • 120–277V input voltage
  • 130 lm/W efficacy

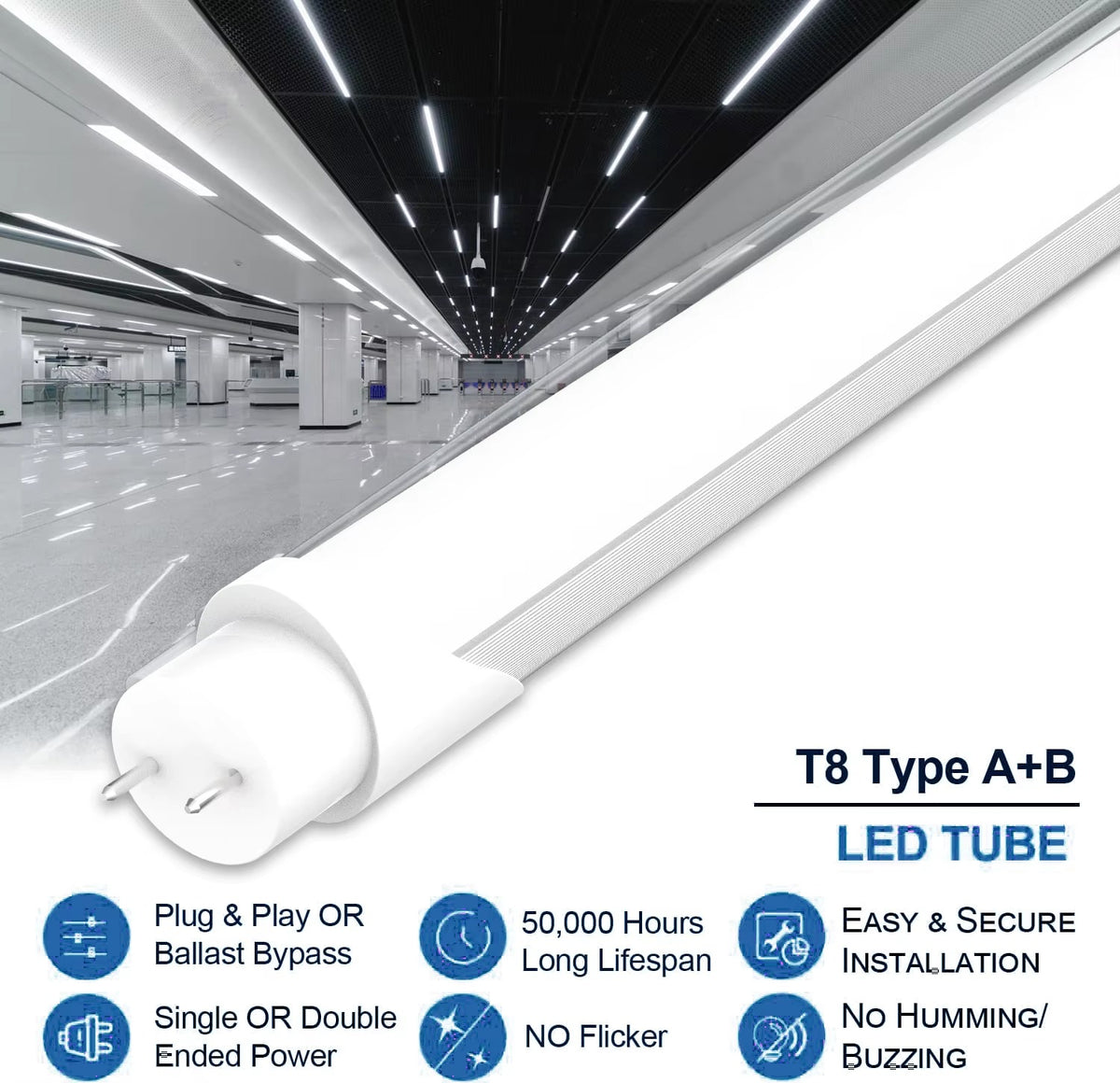

  • Type A+B installation
  • Single-end or double-end wiring for ballast-bypass installation
  • G13 base

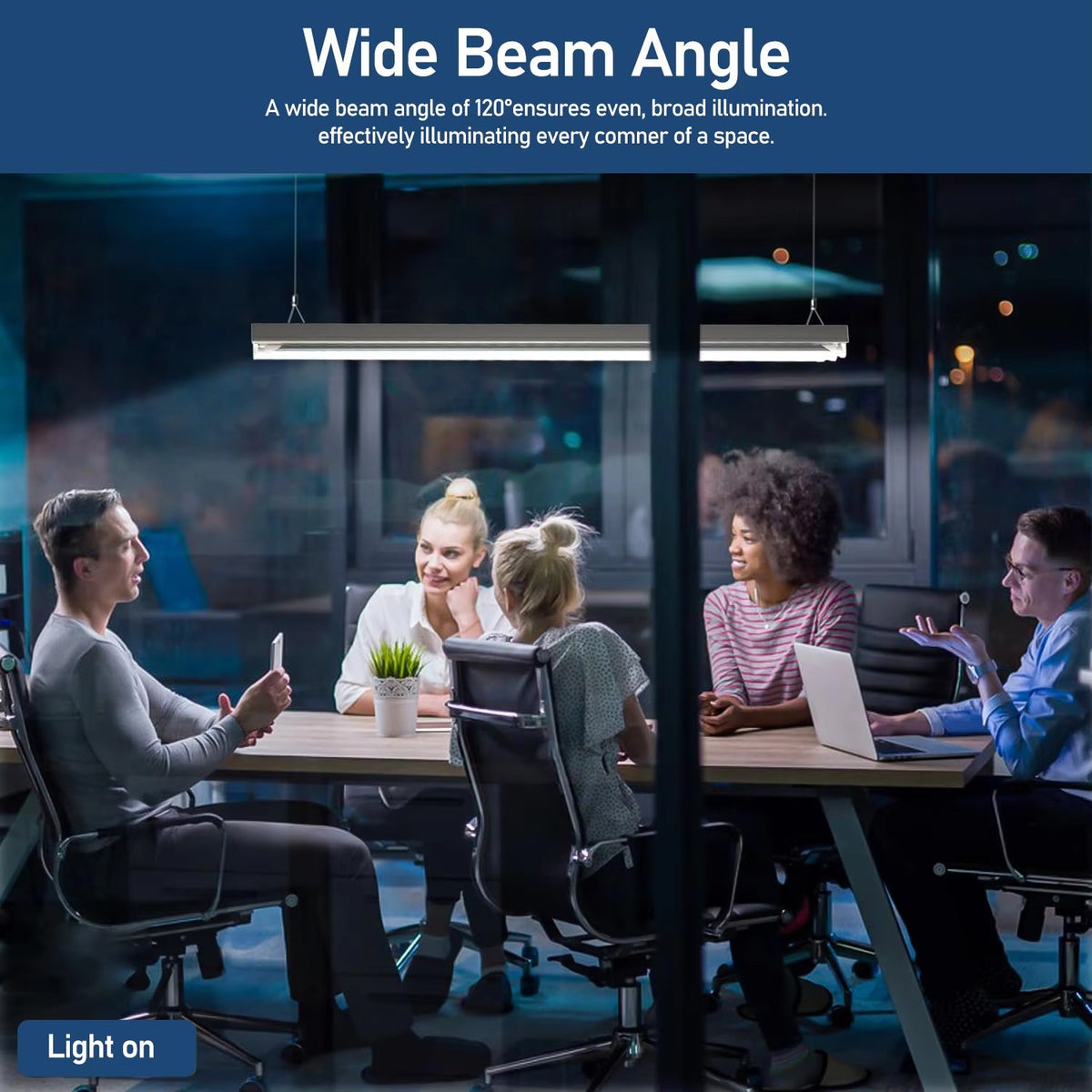

  • 120° beam angle
  • CRI >80 and power factor >0.95

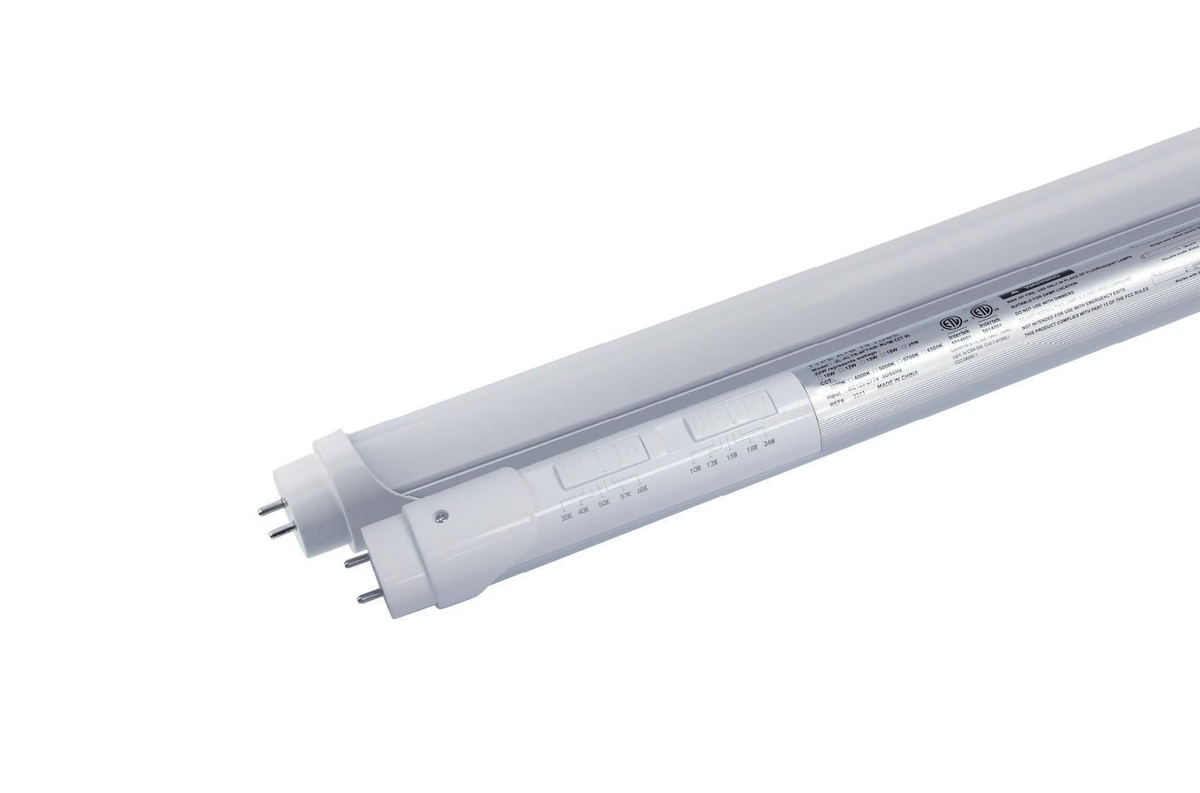

  • Frosted and Clear cover options
  • ETL, DLC Premium and FCC certified
  • 50,000+ hour rated life
  • 5-year limited warranty

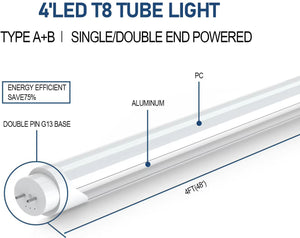

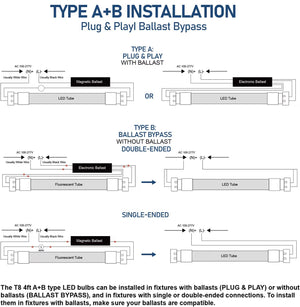

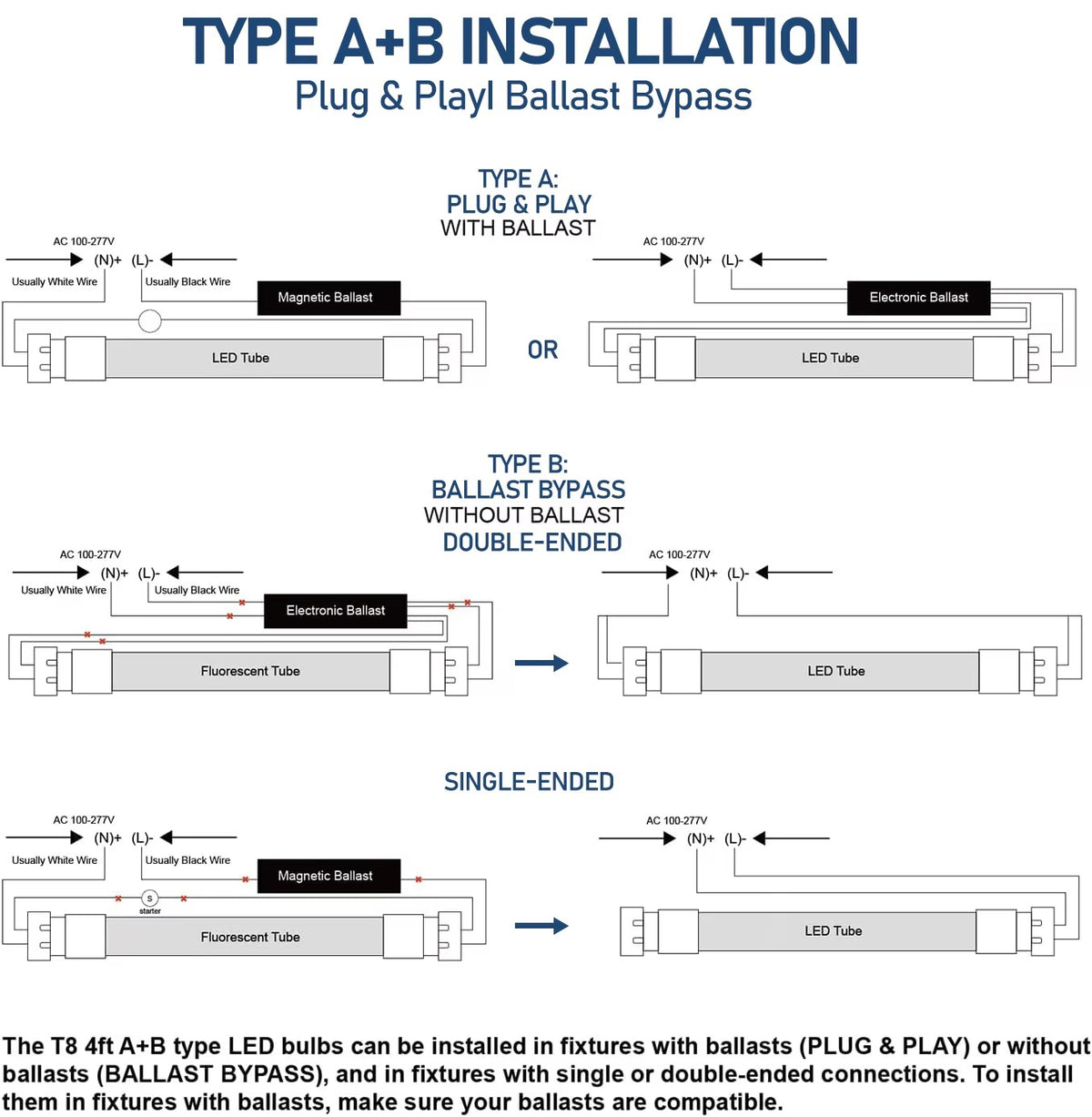

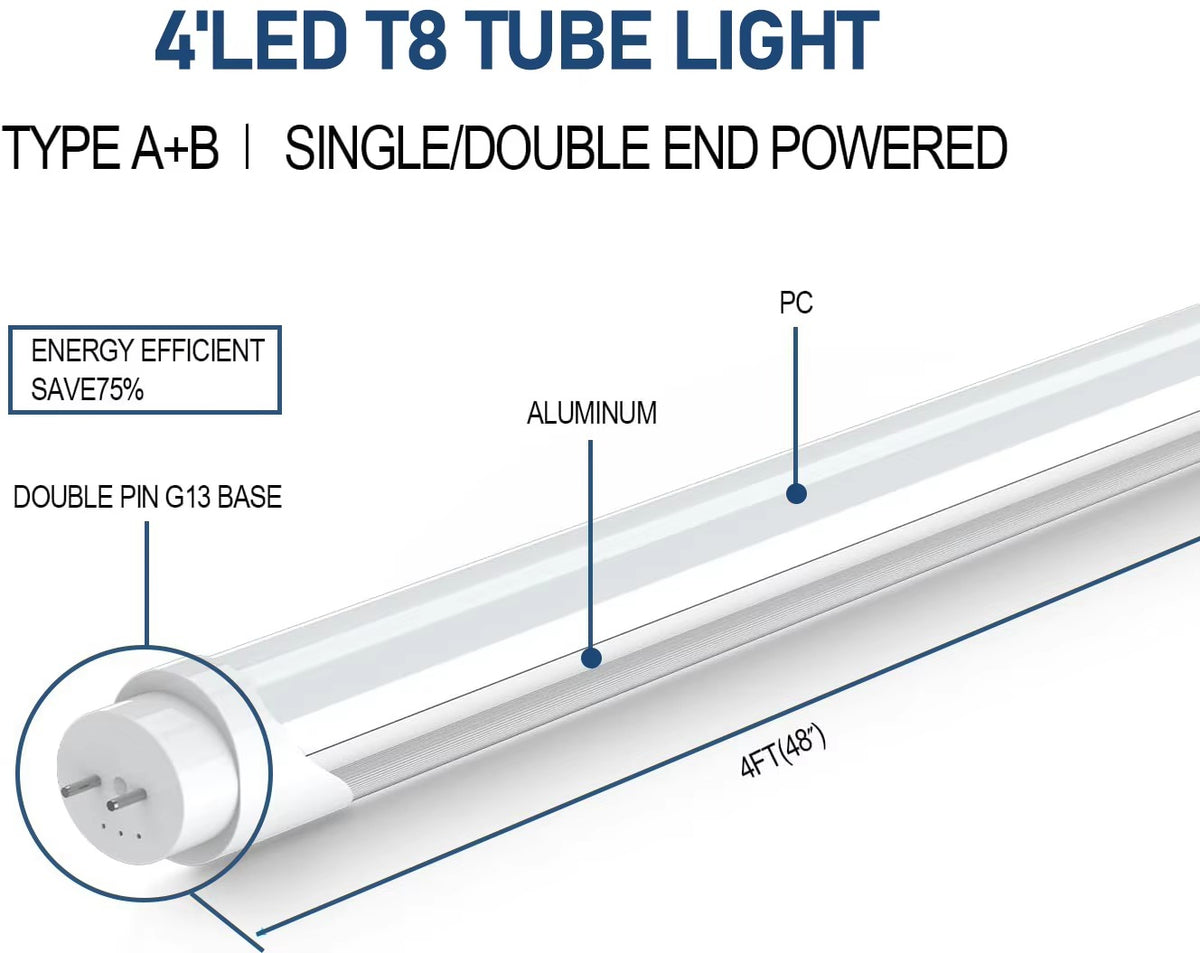

Flexible Type A+B Installation

Type A operation is compatible with applicable electronic T8 ballasts. For Type B installation, the ballast can be bypassed and the tube operated directly on 120–277V line voltage using single-ended or double-ended wiring.

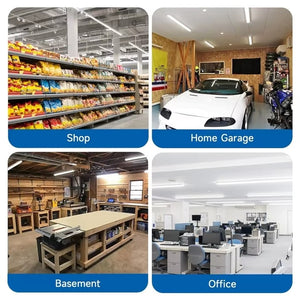

Commercial Applications

Suitable for dry and damp indoor locations including offices, schools, factories, hospitals and other commercial facilities. Operating temperature range is 4°F to 113°F (-20°C to 45°C).

Available Options

Choose Frosted or Clear cover styles and 30-Pack, 60-Pack or 90-Pack configurations.

Frequently Asked Questions About This Product

Is this LED T8 tube Type A or Type B?

It supports both Type A and Type B installation. Type A can operate with a compatible electronic T8 ballast. For Type B installation, the ballast is bypassed and the tube operates directly on 120–277V line voltage.

The 3FT model offers selectable 6W, 8W, 10W, 12W and 16W settings with a maximum rated output of 2,429 lumens.

The tube provides five selectable CCT settings: 3500K, 4000K, 5000K, 5700K and 6500K.

Yes. For ballast-bypass Type B installation, the tube supports either single-ended or double-ended wiring.

The product is ETL listed, DLC Premium certified and FCC compliant, and is backed by a 5-year limited warranty with a rated life of more than 50,000 hours.
