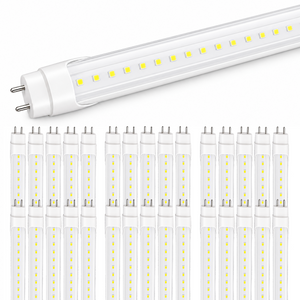

30 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends
4 foot LED T8 tube feature graphic showing construction and certifications
LED T8 tube dimension diagram comparing 2, 4 and 8 foot lengths
LED T8 tubes shown in retail, office, warehouse and workshop settings

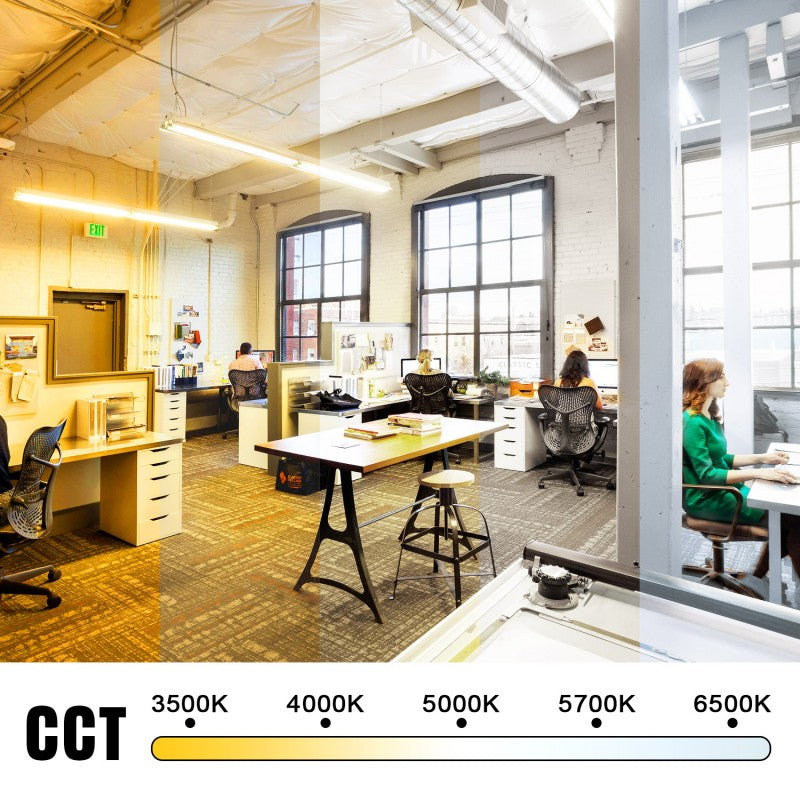

LED T8 tube color temperature comparison in a commercial office

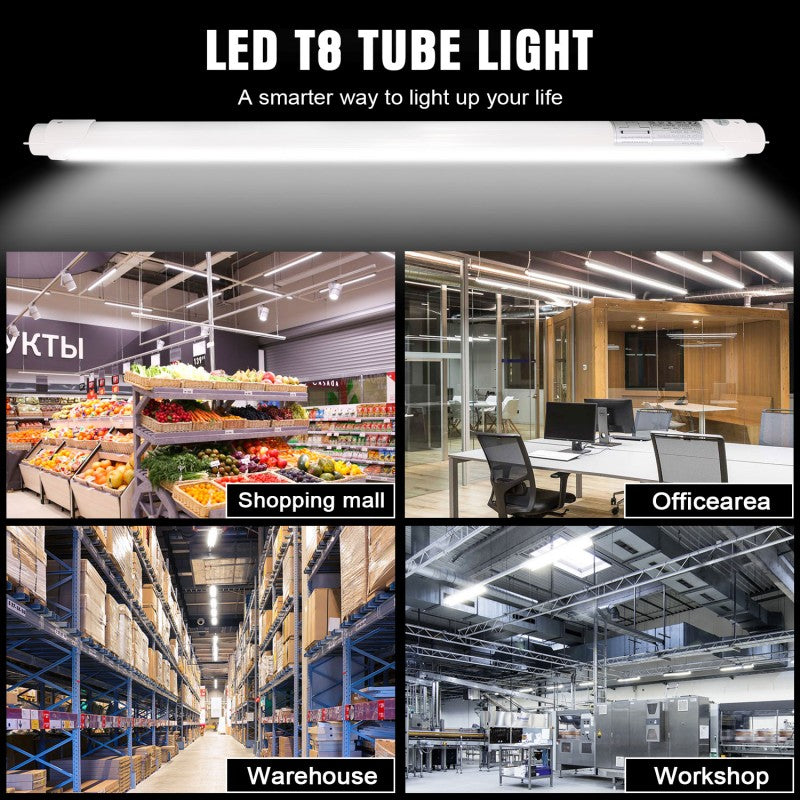

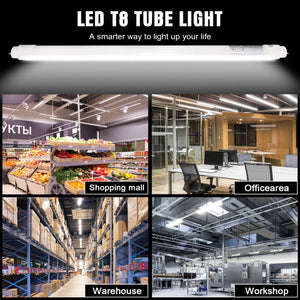

LED T8 tube applications in a shopping area, office, warehouse and workshop
30 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends
4 foot LED T8 tube feature graphic showing construction and certifications
LED T8 tube dimension diagram comparing 2, 4 and 8 foot lengths
LED T8 tubes shown in retail, office, warehouse and workshop settings
LED T8 tube color temperature comparison in a commercial office
LED T8 tube applications in a shopping area, office, warehouse and workshop
 1 of 6

4FT Type A+B LED T8 Tube, 22W Max, 5CCT Selectable

SKU: SS-T8-FAB-22W-TCP-4FT-30PK
Sale price $214.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Wattage:
22W / 18W / 15W / 12W / 10W
Voltage:
120-277V AC
Warranty:
5-Year
LED T8 Tube NGT: 22W 5CCT
30 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends 4 foot LED T8 tube feature graphic showing construction and certifications
22W 5CCT
22W 5CCT
25 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends 4 foot LED T8 tube feature graphic showing construction and certifications
24W 6CCT
24W 6CCT
Pack Size: 30-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
4FT Type A+B LED T8 Tube, 22W Max, 5CCT Selectable
4FT Type A+B LED T8 Tube, 22W Max, 5CCT Selectable 30-Pack
Total for selected quantity Sale price $214.99
0

Specifications

Wattage 22W, 18W, 15W, 12W, 10W
Voltage 120-277V AC
Color Temperature 3500K, 4000K, 5000K, 5700K, 6500K
CRI >80
IP Rating IP20
Mounting Type G13 bi-pin
Certifications ETL Listed DLC Premium 5‑Year Warranty CE Compliant
Rated Life 50,000 hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
ballast compatibility Type A+B: ballast-compatible or ballast-bypass installation
base type G13 bi-pin
Input Frequency 50/60Hz
power factor >0.90
THD <17%
wire connection Single-ended or double-ended power

Downloads

Download Spec Sheet

Consolidate multiple fluorescent replacement requirements into one project-ready tube. This 4-foot Type A+B LED T8 lets contractors select 22W, 18W, 15W, 12W or 10W at installation, helping match existing light levels without stocking separate lamps.

Five selectable color temperatures from 3500K through 6500K support offices, schools, warehouses, retail backrooms and other commercial interiors. The 120-277V input and flexible Type A+B configuration suit both retrofit planning and new maintenance programs.

Commercial Lighting Flexibility

Five wattage settings

Choose 22W, 18W, 15W, 12W or 10W to balance brightness and energy use.

Five color temperatures

Select 3500K, 4000K, 5000K, 5700K or 6500K before installation.

Type A+B flexibility

Supports compatible-ballast installation or ballast-bypass wiring for retrofit flexibility.

Commercial voltage

120-277V AC input fits common North American commercial electrical systems.

Selectable Output and Color

Choose from 22W, 18W, 15W, 12W, 10W and match the space with the required color temperature.

3500K4000K5000K5700K6500K

Installation and Performance

  • Use with G13 bi-pin lamp holders.
  • Single-ended or double-ended power supports different retrofit wiring plans.
  • A qualified electrician should verify the existing ballast, lampholders and branch voltage before installation.

Project-Ready Features

  • 30, 60 and 90-pack choices align with carton-based commercial purchasing.
  • Selectable output reduces the number of wattage-specific SKUs needed for multi-site projects.
  • 50,000-hour rated life and a five-year warranty support planned maintenance programs.

Fit and Compatibility

Confirm fixture length, G13 lampholders, ballast compatibility and wiring method before ordering. This product is intended for 4-foot T8 retrofit applications; it is not presented as a universal replacement for every fluorescent fixture.

Professional installation is recommended. Confirm compatibility, dimensions and local electrical requirements before ordering.

Frequently Asked Questions About This Product

What wattage settings are available?

The tube offers 22W, 18W, 15W, 12W and 10W selectable settings. Choose the required setting before energizing the fixture.

Available CCT settings are 3500K, 4000K, 5000K, 5700K and 6500K.

It is a Type A+B tube designed for compatible-ballast installation or ballast-bypass wiring. Verify the existing ballast and follow the approved wiring instructions before installation.

It supports 120-277V AC, which covers common commercial voltage systems in North America.

Choose a 30-pack, 60-pack or 90-pack. The supplier carton quantity is 30 tubes.
