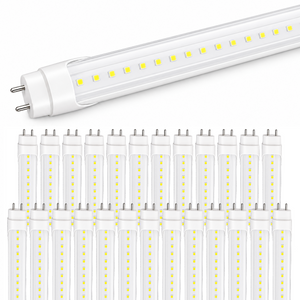

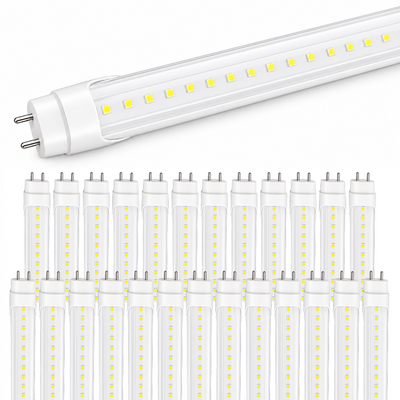

25 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends
4 foot LED T8 tube feature graphic showing construction and certifications
LED T8 tube dimension diagram comparing 2, 4 and 8 foot lengths
LED T8 tubes shown in retail, office, warehouse and workshop settings

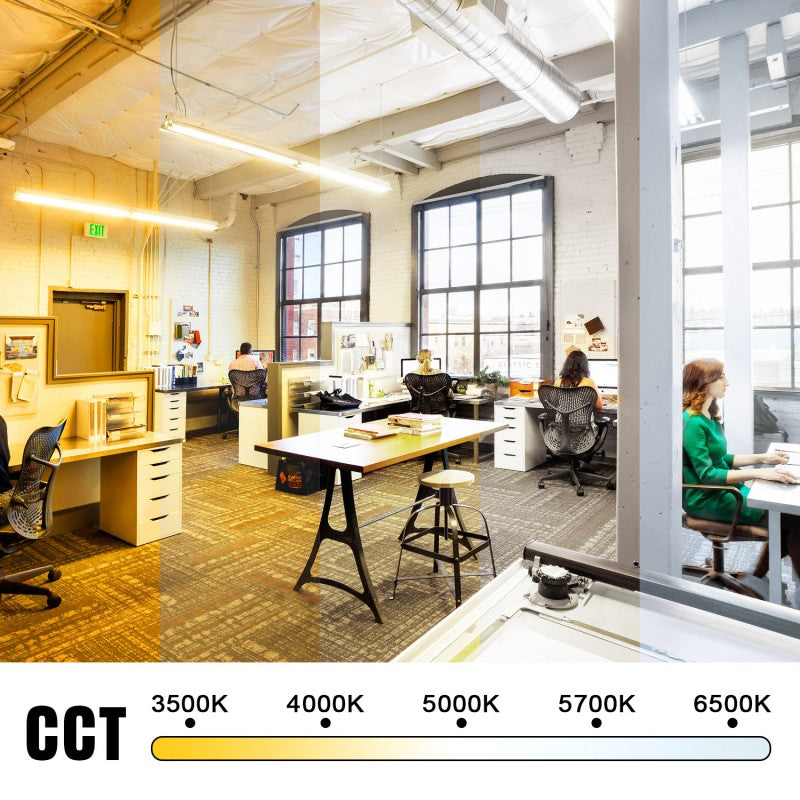

LED T8 tube warm-to-cool lighting comparison in an office

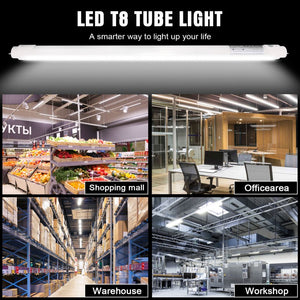

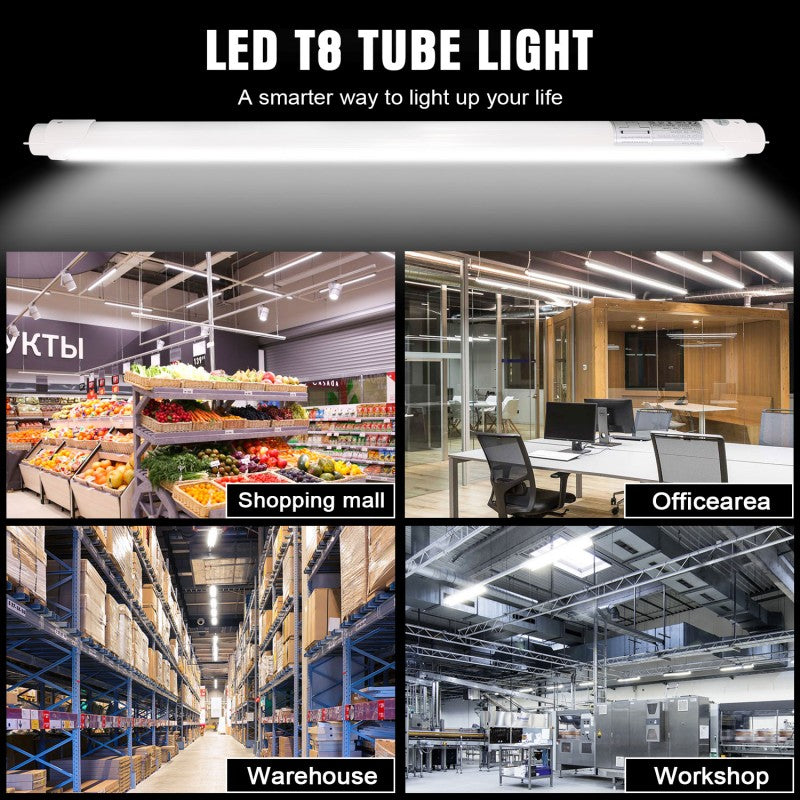

LED T8 tube applications in a shopping area, office, warehouse and workshop
25 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends
4 foot LED T8 tube feature graphic showing construction and certifications
LED T8 tube dimension diagram comparing 2, 4 and 8 foot lengths
LED T8 tubes shown in retail, office, warehouse and workshop settings
LED T8 tube warm-to-cool lighting comparison in an office
LED T8 tube applications in a shopping area, office, warehouse and workshop
 1 of 6

4FT Type A+B LED T8 Tube, 24W Max, 6CCT Selectable

SKU: EDI-T84F24-AB-XXKG1-25PK
Sale price $184.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
3,120 lm max
Wattage:
24W / 18W / 15W / 12W / 10W
Voltage:
120-277V AC
Warranty:
5-Year
LED T8 Tube NGT: 24W 6CCT

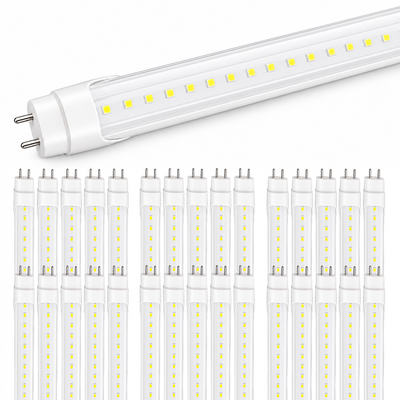

30 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends 4 foot LED T8 tube feature graphic showing construction and certifications
22W 5CCT
22W 5CCT
25 pack of 4 foot Type A+B LED T8 tubes with G13 bi-pin ends 4 foot LED T8 tube feature graphic showing construction and certifications
24W 6CCT
24W 6CCT
Pack Size: 25-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
4FT Type A+B LED T8 Tube, 24W Max, 6CCT Selectable
4FT Type A+B LED T8 Tube, 24W Max, 6CCT Selectable 25-Pack
Total for selected quantity Sale price $184.99
0

Specifications

Lumens 3,120 lm max
Efficacy 130 lm/W
Wattage 24W, 18W, 15W, 12W, 10W
Voltage 120-277V AC
Color Temperature 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI >80
IP Rating IP20
Mounting Type G13 bi-pin
Certifications ETL Listed DLC Premium 5‑Year Warranty CE Compliant
Rated Life 50,000 hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
ballast compatibility Type A+B: ballast-compatible or ballast-bypass installation
base type G13 bi-pin
Input Frequency 50/60Hz
power factor >0.90
THD <17%
wire connection Single-ended or double-ended power

Downloads

Download Spec Sheet

This high-output 4-foot Type A+B LED T8 tube gives commercial buyers six color choices and five wattage settings in one stocking unit. Select 24W, 18W, 15W, 12W or 10W to adapt light output across different rooms and fixture layouts.

Color temperature options span 3000K to 6500K, supporting warmer customer-facing spaces as well as crisp task, warehouse and service-area lighting. The 120-277V input and Type A+B design help simplify mixed retrofit programs.

Commercial Lighting Flexibility

Up to 24W output

Five field-selectable wattages cover a broad range of commercial replacement needs.

Six CCT settings

Choose 3000K, 3500K, 4000K, 5000K, 5700K or 6500K.

Two retrofit paths

Use a verified compatible ballast or complete an approved ballast-bypass installation.

Bulk-order format

25, 50 and 75-pack variants align with the 25-piece supplier carton.

Selectable Output and Color

Choose from 24W, 18W, 15W, 12W, 10W and match the space with the required color temperature.

3000K3500K4000K5000K5700K6500K

Installation and Performance

  • Designed for 4-foot fixtures using G13 bi-pin lamp holders.
  • Supports single-ended or double-ended power configurations.
  • Confirm ballast compatibility, wiring arrangement and local electrical requirements before installation.

Project-Ready Features

  • Six CCT choices help standardize purchasing across offices, schools, service areas and warehouses.
  • Selectable wattage makes it easier to tune output during commissioning.
  • A 50,000-hour rated life and five-year warranty support lower-maintenance project planning.

Fit and Compatibility

Verify fixture length, socket type and the approved Type A or Type B installation method. The published maximum output is 3,120 lumens; confirm final photometric requirements against the project layout before ordering.

Professional installation is recommended. Confirm compatibility, dimensions and local electrical requirements before ordering.

Frequently Asked Questions About This Product

What wattage settings are included?

The selectable settings are 24W, 18W, 15W, 12W and 10W.

Yes. The six settings are 3000K, 3500K, 4000K, 5000K, 5700K and 6500K.

It is a Type A+B tube. It can use a verified compatible ballast or an approved ballast-bypass wiring method.

The input range is 120-277V AC.

The product is planned with 25-pack, 50-pack and 75-pack variants. The supplier carton quantity is 25 tubes.
