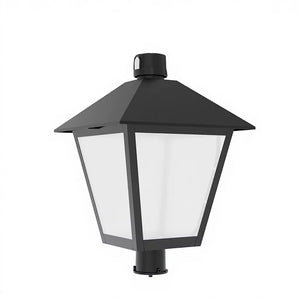

Black 60/50/40/30/20W photocell-ready LED lantern post top light

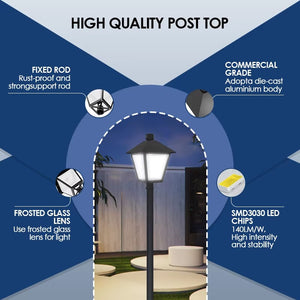

Photocell-ready LED lantern post top light construction with frosted glass and aluminum housing

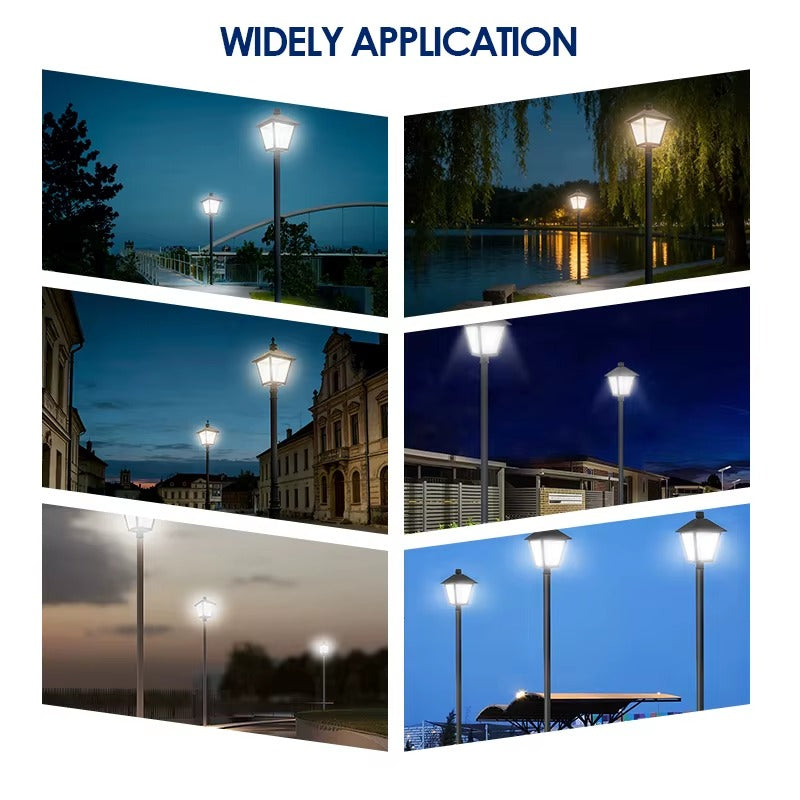

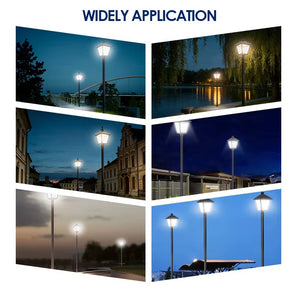

LED lantern post top lights for streets walkways parks and outdoor commercial areas

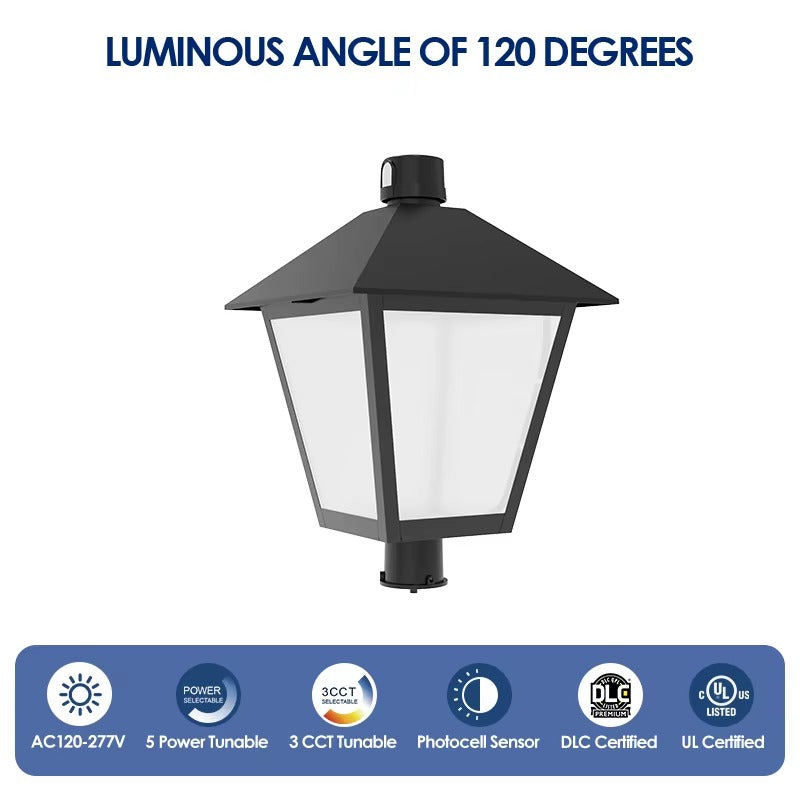

Photocell-ready LED lantern post top light illustrating a 120 degree luminous angle

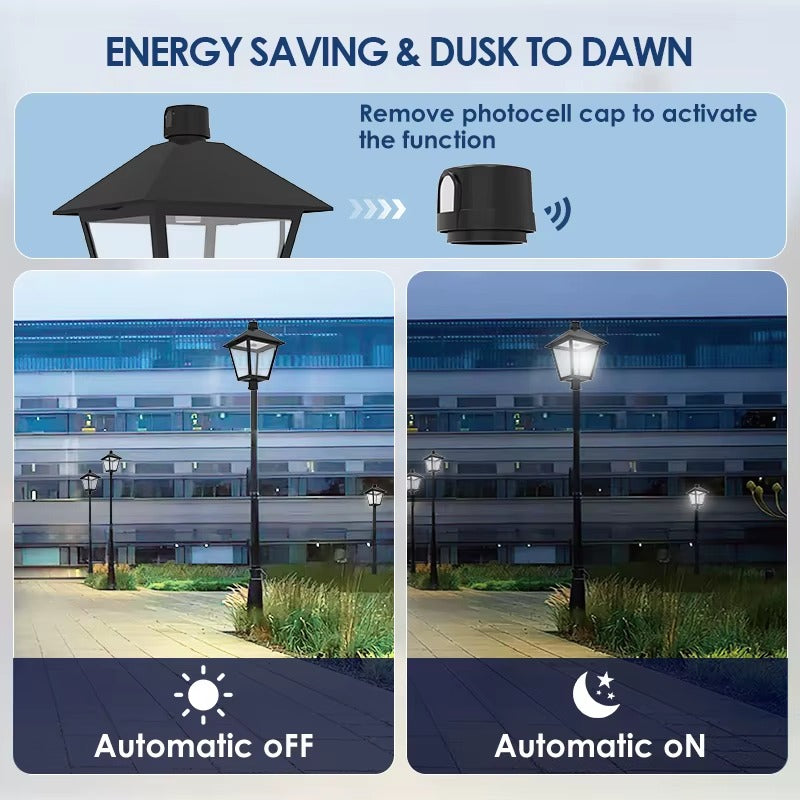

LED lantern post top light dusk-to-dawn control illustration with photocell sold separately

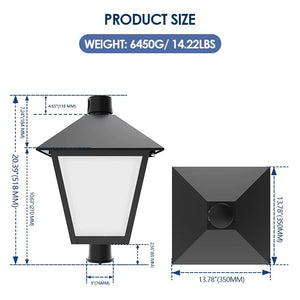

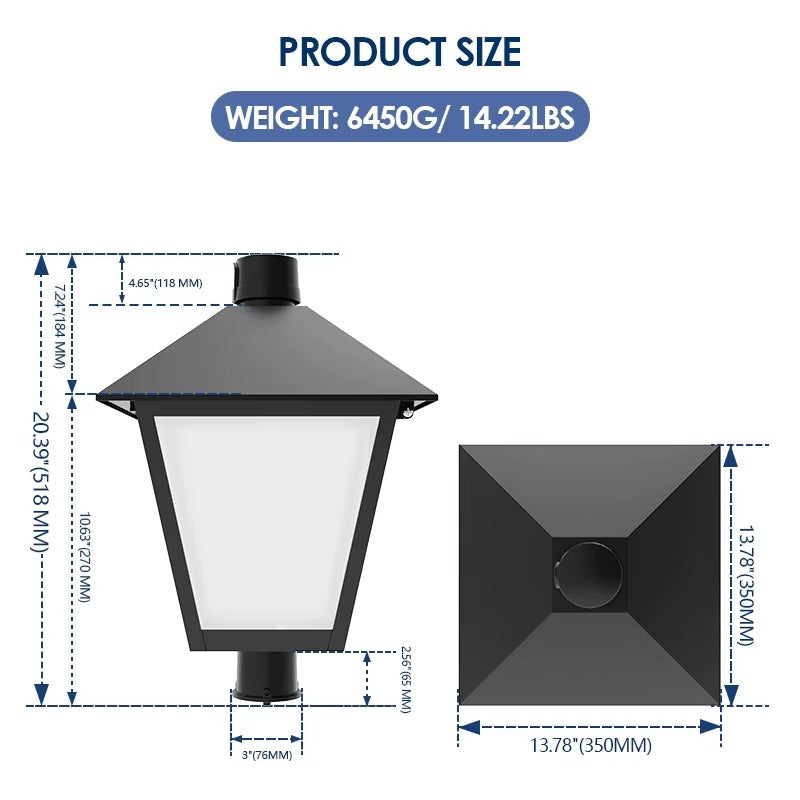

60W photocell-ready LED lantern post top light dimensions and 3 inch tenon mount
Photocell-ready LED lantern post top light with selectable wattage and 3CCT
Black 60/50/40/30/20W photocell-ready LED lantern post top light
Photocell-ready LED lantern post top light construction with frosted glass and aluminum housing
LED lantern post top lights for streets walkways parks and outdoor commercial areas
Photocell-ready LED lantern post top light illustrating a 120 degree luminous angle
LED lantern post top light dusk-to-dawn control illustration with photocell sold separately
60W photocell-ready LED lantern post top light dimensions and 3 inch tenon mount
Photocell-ready LED lantern post top light with selectable wattage and 3CCT
 1 of 7

60/50/40/30/20W LED Lantern Post Top Light, 3CCT, Photocell-Ready

SKU: G-0042-1PK
Sale price $279.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
Up to 8,298 lm (60W setting)
Wattage:
60W / 50W / 40W / 30W / 20W
Voltage:
120-277V AC
Dimming:
0-10V
Location:
Wet Location
Warranty:
5-Year
LED Lantern Post Top Light: 60W Photocell Ready
Black 60/50/40/30/20W selectable LED lantern post top light on white background LED lantern post top lights used along streets walkways parks and outdoor commercial areas
60W With Photocell
60W With Photocell
Black 60/50/40/30/20W photocell-ready LED lantern post top light Photocell-ready LED lantern post top light construction with frosted glass and aluminum housing
60W Photocell Ready
60W Photocell Ready
Black 120/100/80/60/40W selectable LED lantern post top light on white background High-output LED lantern post top light construction with frosted glass and aluminum housing
120W With Photocell
120W With Photocell
Black 120/100/80/60/40W photocell-ready LED lantern post top light High-output photocell-ready LED lantern construction with frosted glass and aluminum housing
120W Photocell Ready
120W Photocell Ready
Pack Size: 1-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
60/50/40/30/20W LED Lantern Post Top Light, 3CCT, Photocell-Ready
60/50/40/30/20W LED Lantern Post Top Light, 3CCT, Photocell-Ready 1-Pack
Total for selected quantity Sale price $279.99
0

Specifications

Lumens Up to 8,298 lm (60W setting)
Wattage 60W, 50W, 40W, 30W, 20W
Voltage 120-277V AC
Dimming 0-10V
Operating Temperature -40°F to 122°F
Color Temperature 3000K, 4000K, 5000K
CRI >70
IP Rating IP65
Location Rating Wet Location
Mounting Type 3 in. Pole Tenon Mount
Product Dimensions 13.78 × 13.78 × 20.39 in.
Certifications UL Listed FCC Compliant RoHS Compliant 5‑Year Warranty
Rated Life 50,000 Hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
finish Black
housing material Die-Cast Aluminum
lens material Frosted Glass
photocell base included Yes
photocell included No
pole tenon diameter 3 in.
shorting cap included Yes

Downloads

Download Spec Sheet

Photocell-Ready LED Lantern Post Top Light

This black LED lantern post top light has five selectable wattages—60W, 50W, 40W, 30W and 20W—and three selectable color temperatures, with up to 8,298 lumens at the 60W setting.

Unlike the photocell-included version, this fixture ships with a photocell base and shorting cap but does not include a photocell. Choose this configuration when a compatible control will be specified separately or when the project does not require dusk-to-dawn sensing.

20W–60W SelectableMatch output to pathways and plazas.
3CCT Selectable3000K, 4000K and 5000K.
Base + Shorting CapPhotocell-ready hardware included.
No PhotocellOrder a compatible sensor separately if needed.

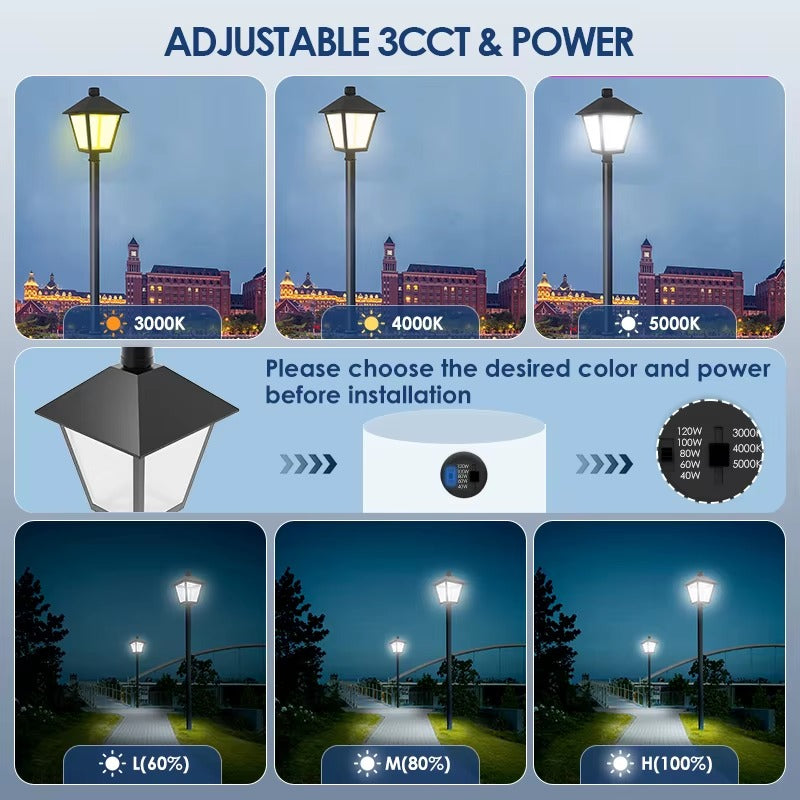

Configure Light Output and CCT

Select the wattage and light color for the installation location; these settings are internal field choices, not separate pack variants.

3000K4000K5000K
Disconnect power before accessing the controls.

Pole Mounting and Sensor Provision

3-Inch Tenon

Install onto a compatible pole top and seal the electrical connection as instructed.

Photocell-Ready Base

The included base and shorting cap are not a light sensor. Verify the separately ordered photocell fits before changing the configuration.

Project-Ready Features

  • Outdoor use: PT02 IP65 wet-location construction.
  • Materials: Black die-cast aluminum with frosted glass lens.
  • Dimming: 0-10V-compatible control leads.
  • Supply: AC 120-277V orderable version.

Fit and Purchase Compatibility

Size

Approximately 13.78 × 13.78 × 20.39 inches.

Included Components

Fixture, photocell base and shorting cap as quoted; photocell is not included.

Do not assume this version has the DC12V sensor-base arrangement of the separately listed photocell model.

Frequently Asked Questions About This Product

Does this fixture include a photocell?

No. This orderable version includes a photocell base and shorting cap, but the photocell itself must be purchased separately.

Yes. 60W, 50W, 40W, 30W and 20W and 3000K, 4000K or 5000K are field-selectable. Disconnect power and follow the installation instructions before changing settings.

This orderable configuration uses 120–277V AC and supports compatible 0–10V dimming. Alternative voltage versions mentioned in generic series literature are not included in this offer.

A mounting pole is not listed as included. Confirm a compatible 3-inch pole tenon, mechanical capacity and local installation requirements before ordering.

1-Pack contains one fixture, 2-Pack contains two fixtures, and 4-Pack contains four fixtures. Wattage and CCT settings are not additional fixtures.
