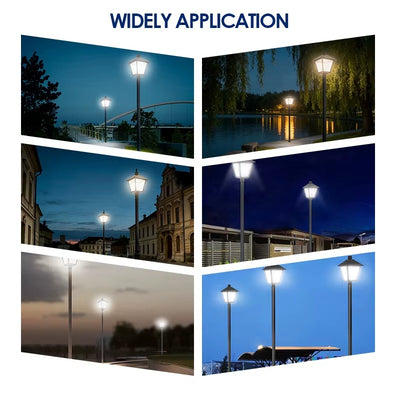

LED lantern post top lights used along streets walkways parks and outdoor commercial areas

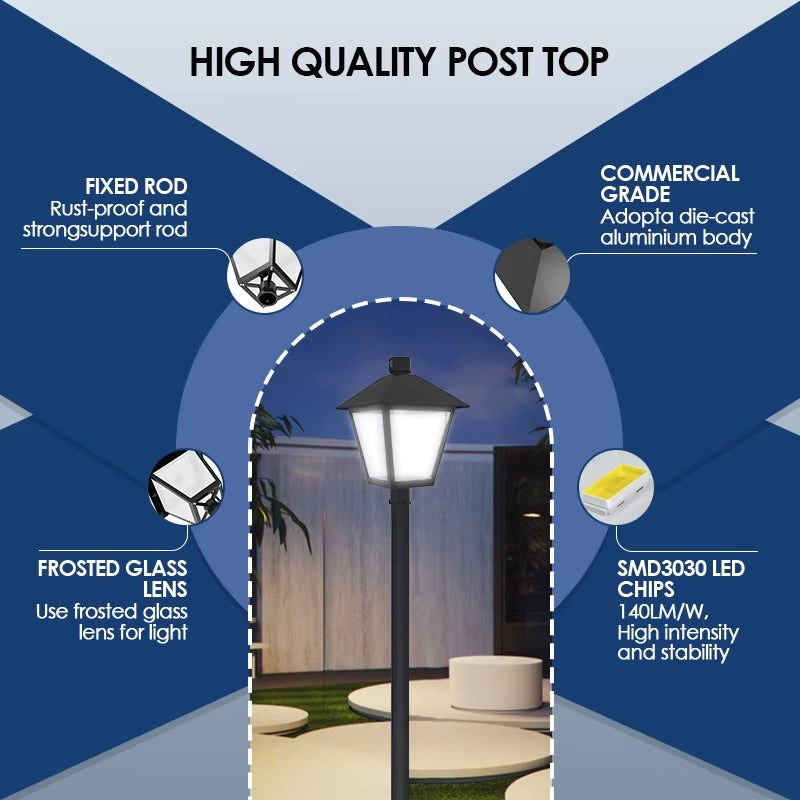

LED lantern post top light construction showing aluminum housing frosted glass and support rods

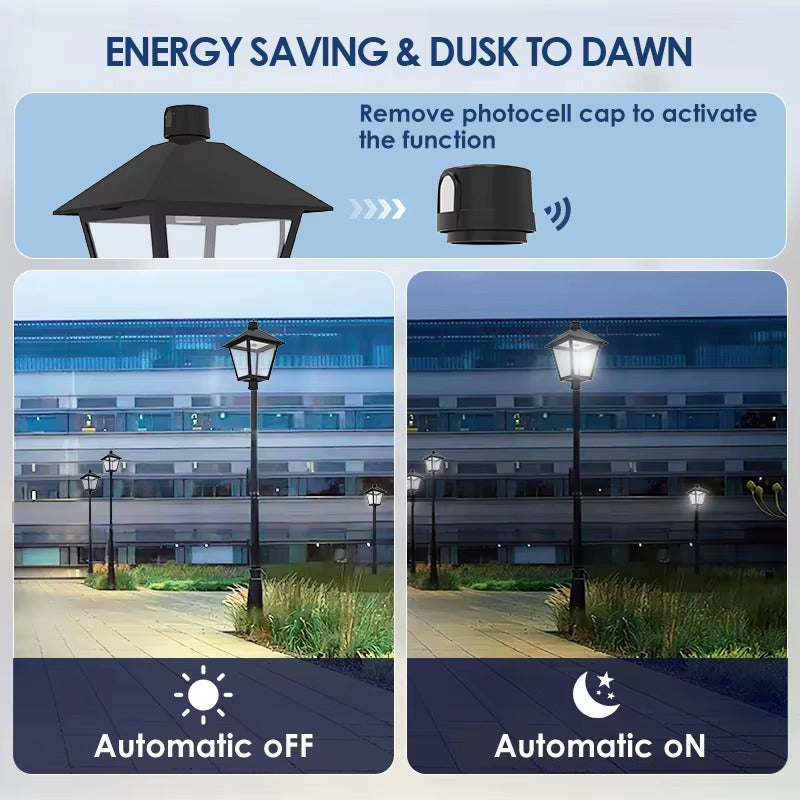

LED lantern post top light with included photocell for dusk-to-dawn operation

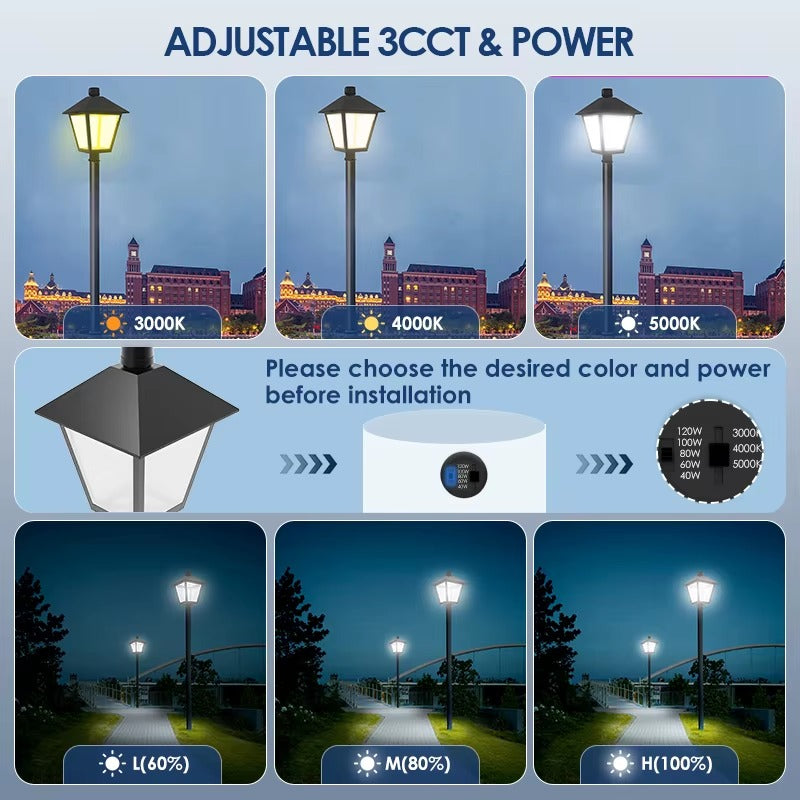

LED lantern post top light with selectable wattage and 3000K 4000K and 5000K

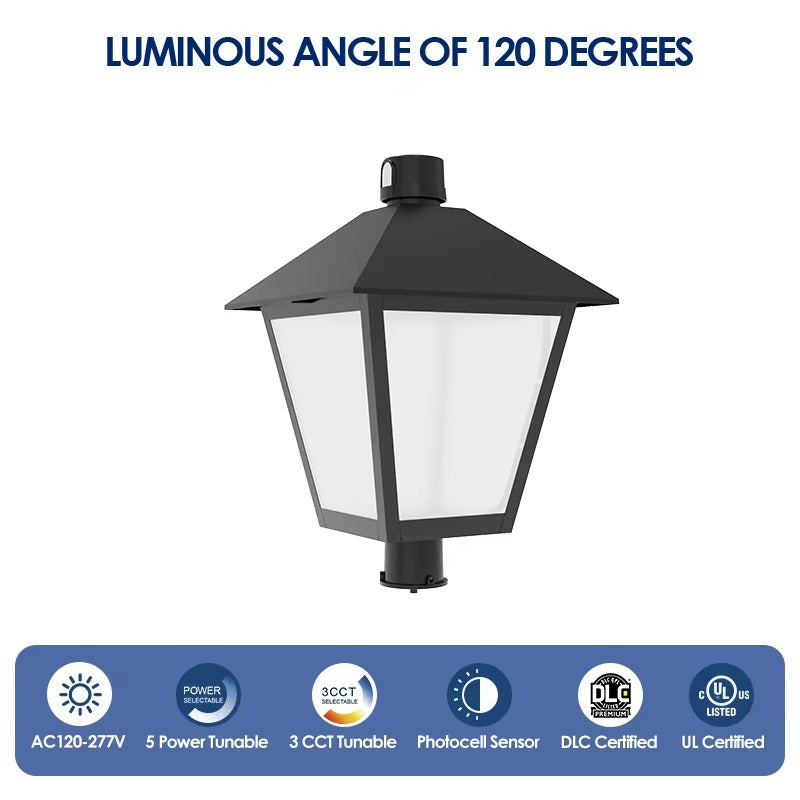

LED lantern post top light illustrating a 120 degree luminous angle

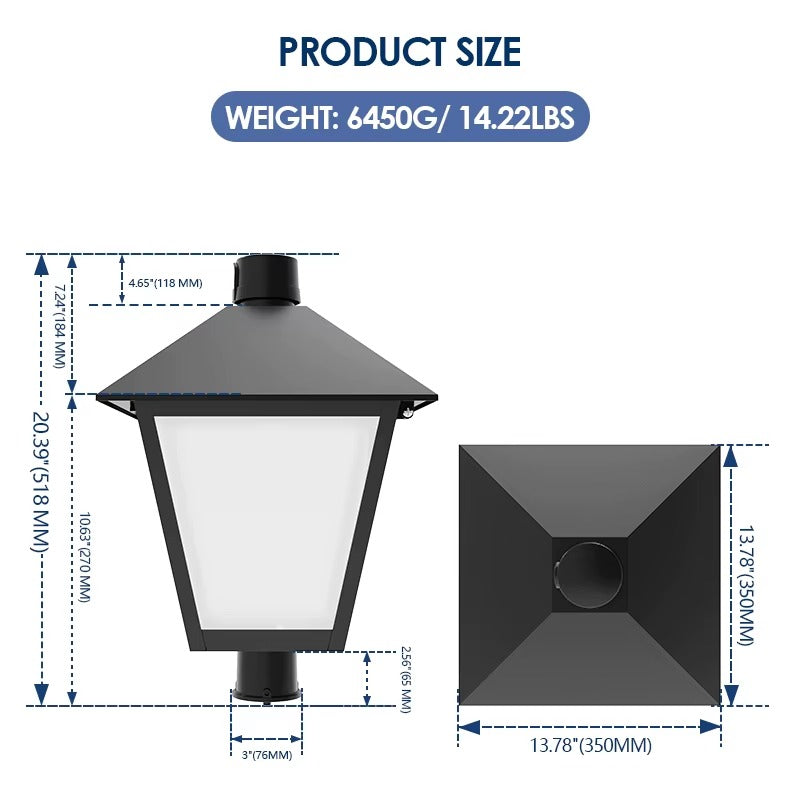

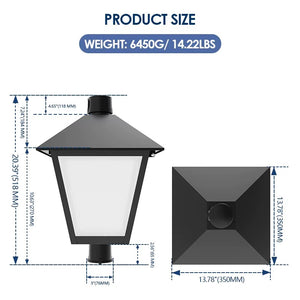

60W selectable LED lantern post top light dimensions and 3 inch tenon mount
Black 60/50/40/30/20W selectable LED lantern post top light on white background
LED lantern post top lights used along streets walkways parks and outdoor commercial areas
LED lantern post top light construction showing aluminum housing frosted glass and support rods
LED lantern post top light with included photocell for dusk-to-dawn operation
LED lantern post top light with selectable wattage and 3000K 4000K and 5000K
LED lantern post top light illustrating a 120 degree luminous angle
60W selectable LED lantern post top light dimensions and 3 inch tenon mount
 1 of 7

60/50/40/30/20W LED Lantern Post Top Light, 3CCT, Photocell

SKU: G-0022-1PK
Sale price $299.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
Up to 8,298 lm (60W setting)
Wattage:
60W / 50W / 40W / 30W / 20W
Voltage:
120-277V AC
Dimming:
0-10V
Location:
Wet Location
Warranty:
5-Year
LED Lantern Post Top Light: 60W With Photocell
Black 60/50/40/30/20W selectable LED lantern post top light on white background LED lantern post top lights used along streets walkways parks and outdoor commercial areas
60W With Photocell
60W With Photocell
Black 60/50/40/30/20W photocell-ready LED lantern post top light Photocell-ready LED lantern post top light construction with frosted glass and aluminum housing
60W Photocell Ready
60W Photocell Ready

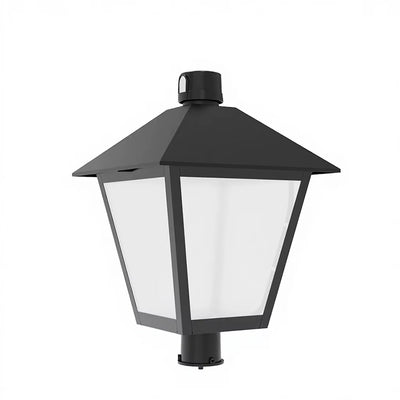

Black 120/100/80/60/40W selectable LED lantern post top light on white background High-output LED lantern post top light construction with frosted glass and aluminum housing
120W With Photocell
120W With Photocell
Black 120/100/80/60/40W photocell-ready LED lantern post top light High-output photocell-ready LED lantern construction with frosted glass and aluminum housing
120W Photocell Ready
120W Photocell Ready
Pack Size: 1-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
60/50/40/30/20W LED Lantern Post Top Light, 3CCT, Photocell
60/50/40/30/20W LED Lantern Post Top Light, 3CCT, Photocell 1-Pack
Total for selected quantity Sale price $299.99
0

Specifications

Lumens Up to 8,298 lm (60W setting)
Wattage 60W, 50W, 40W, 30W, 20W
Voltage 120-277V AC
Dimming 0-10V
Operating Temperature -40°F to 122°F
Color Temperature 3000K, 4000K, 5000K
CRI >70
IP Rating IP65
Location Rating Wet Location
Mounting Type 3 in. Pole Tenon Mount
Product Dimensions 13.78 × 13.78 × 20.39 in.
Certifications UL Listed FCC Compliant RoHS Compliant 5‑Year Warranty
Rated Life 50,000 Hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
finish Black
housing material Die-Cast Aluminum
lens material Frosted Glass
photocell included Yes
pole tenon diameter 3 in.
sensor base DC12V Sensor Base (occupancy sensor sold separately)

Downloads

Download Spec Sheet

LED Lantern Post Top Light for Paths and Plazas

This black lantern-style LED post top light provides selectable 60W, 50W, 40W, 30W and 20W settings, with up to 8,298 lumens. Choose 3000K, 4000K or 5000K to suit the site's preferred light appearance.

Designed for plazas, walkways, courtyards and multifamily properties, this configuration includes a photocell and DC12V sensor base. A compatible add-on occupancy sensor is a separate accessory, not part of the included fixture.

Five Wattage Settings20W through 60W in one lantern.
3CCT SelectableChoose 3000K, 4000K or 5000K.
Photocell IncludedAutomatic nighttime operation.
DC12V Sensor BaseSupports an appropriate separately sold accessory.

Selectable Output for Lantern Lighting

Configure wattage and CCT using the internal selectors. Standardize the lantern appearance across outdoor areas while setting output by mounting location.

3000K4000K5000K
Disconnect AC power before changing selectors or installing accessories.

Tenon Mounting and Controls

3-Inch Pole Tenon

Secure the lantern base on a compatible 3-inch pole top following the supplied drawing and electrical code.

Photocell and 0-10V

The included photocell senses ambient daylight. Separate dimming leads accept a compatible 0-10V lighting control.

Project-Ready Features

  • Outdoor build: IP65 and wet-location construction.
  • Lens: Frosted glass within a black die-cast aluminum body.
  • Electrical: 120-277V AC sale configuration.
  • Service plan: 50,000-hour published life.

Fit and Accessory Compatibility

Lantern Size

Approximately 13.78 × 13.78 × 20.39 inches.

Optional Sensor

Confirm a sensor's voltage, connector and operating compatibility before buying; a sensor is not included.

Confirm tenon fit and use the installation instructions for this exact electrical configuration.

Frequently Asked Questions About This Product

Does this fixture include a photocell?

Yes. The photocell is included in this orderable configuration; an optional occupancy sensor is not included.

Yes. 60W, 50W, 40W, 30W and 20W and 3000K, 4000K or 5000K are field-selectable. Disconnect power and follow the installation instructions before changing settings.

This orderable configuration uses 120–277V AC and supports compatible 0–10V dimming. Alternative voltage versions mentioned in generic series literature are not included in this offer.

A mounting pole is not listed as included. Confirm a compatible 3-inch pole tenon, mechanical capacity and local installation requirements before ordering.

1-Pack contains one fixture, 2-Pack contains two fixtures, and 4-Pack contains four fixtures. Wattage and CCT settings are not additional fixtures.
