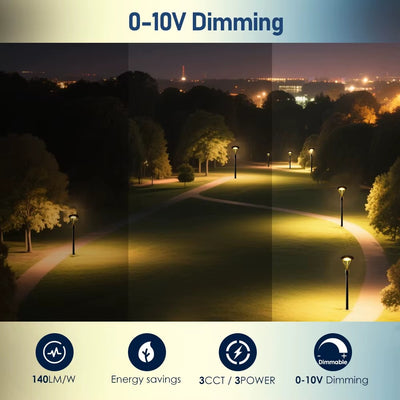

High-output LED post top lights illuminating outdoor walkways with 0-10V dimming

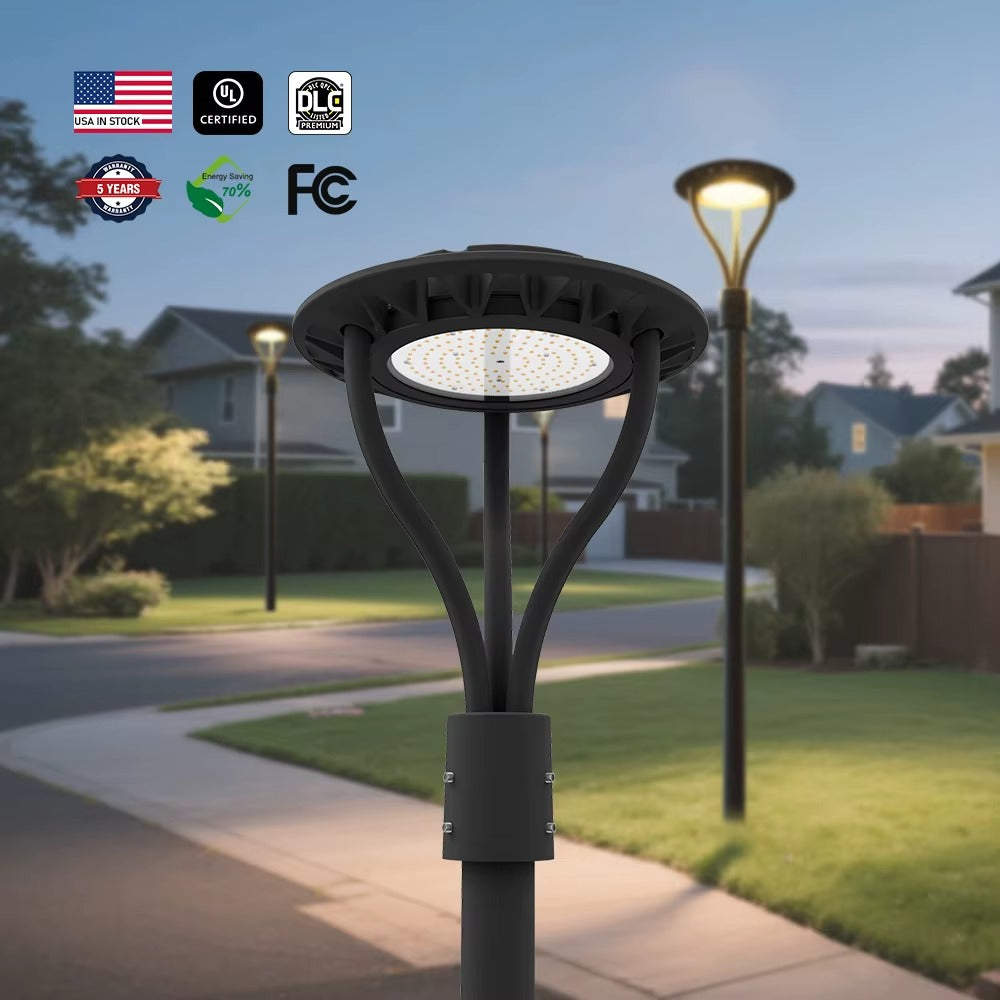

High-output selectable LED post top light installed along a walkway at dusk

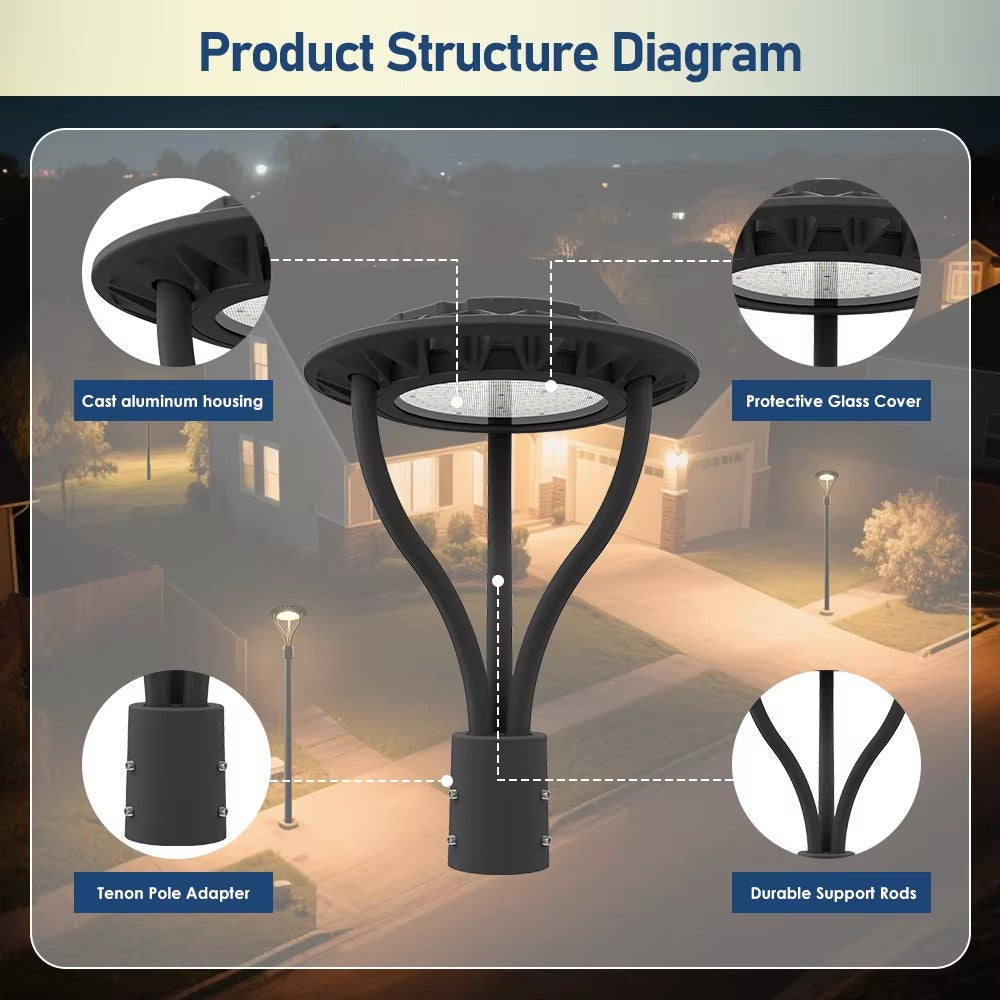

High-output LED post top light structure diagram with aluminum housing and glass cover

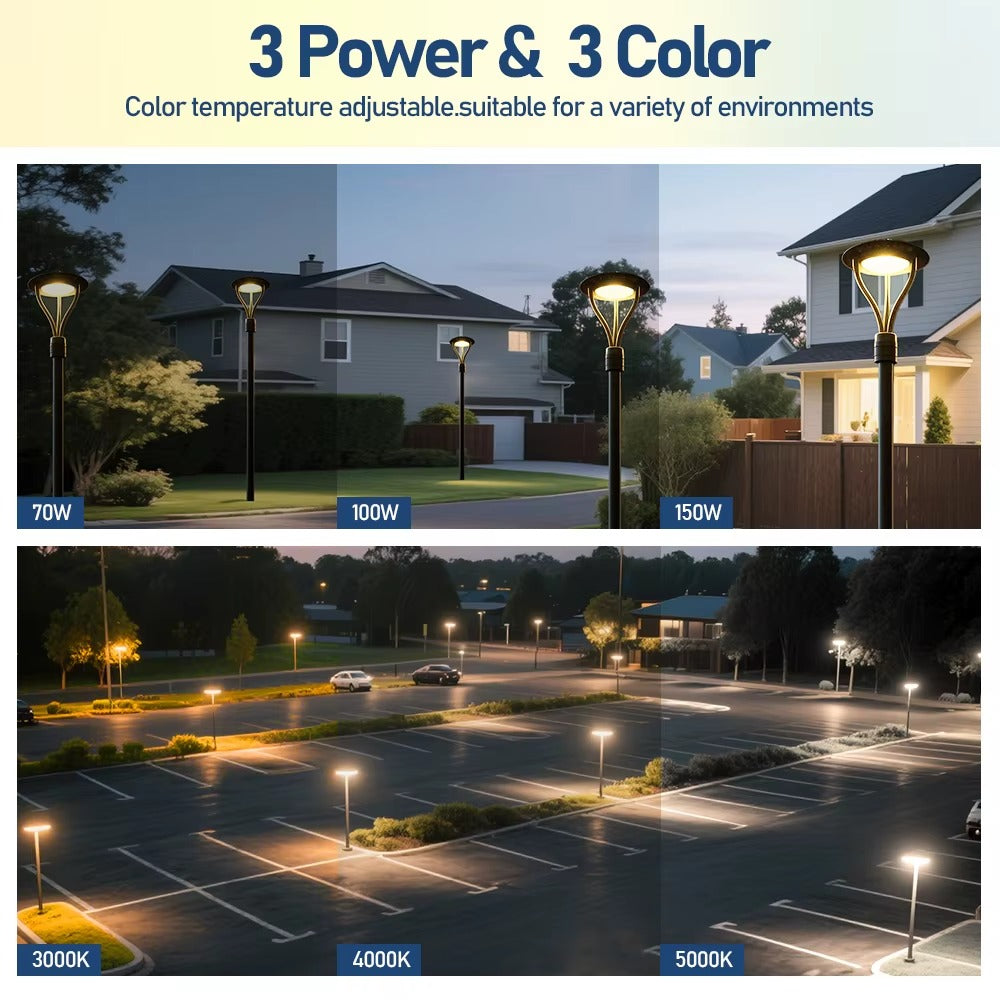

150W selectable LED post top lighting shown in 3000K 4000K and 5000K
Pole installation instructions for a high-output commercial LED post top light
150W selectable LED post top light dimensions for a 3 inch pole tenon

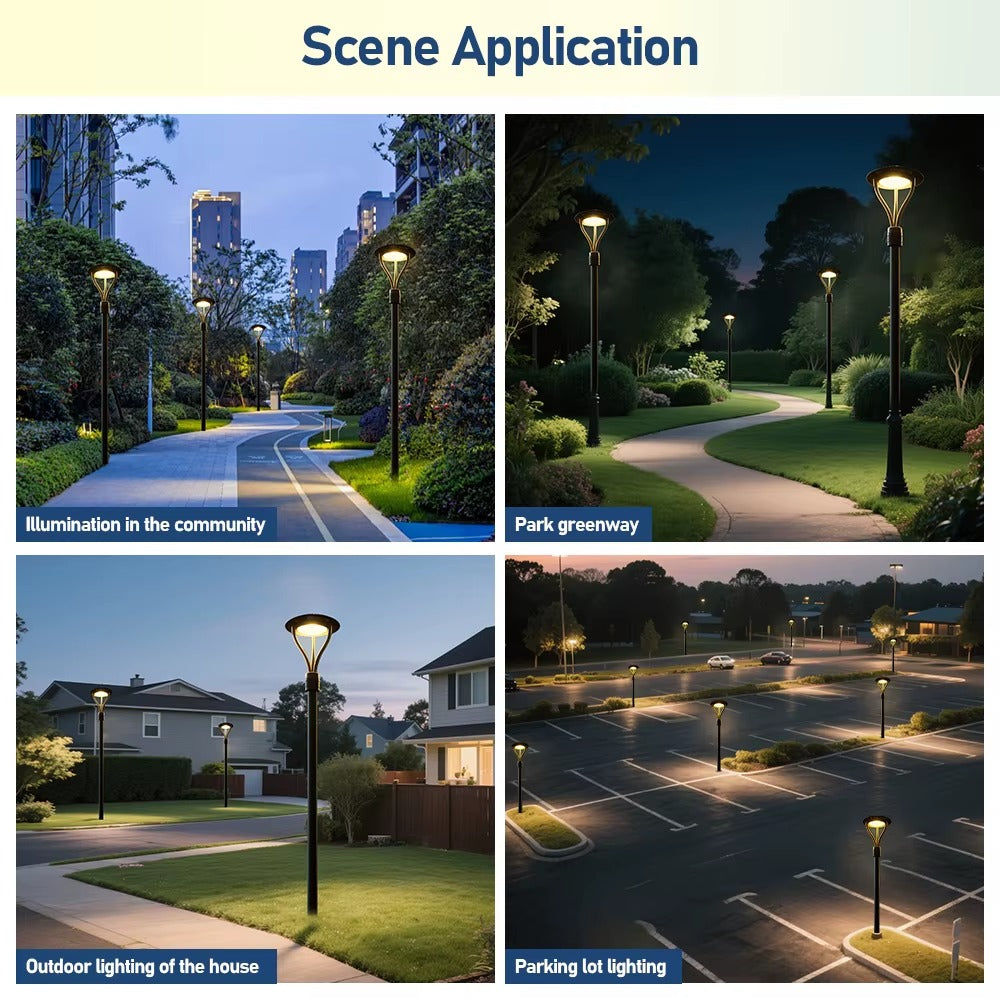

High-output LED post top lights for walkways parks residential areas and parking lots
 1 of 8

150/120/100/80/70W Selectable LED Post Top Light, 3CCT, Photocell

SKU: G-0018-1PK
Sale price $259.99
Bulk Savings Automatic savings on eligible orders of $500+. Learn moreShow less
Volume savings start at an eligible order subtotal of $500 USD, including eligible items already in your cart. This is an order-level threshold, not the price of one product or one pack. Final eligibility and savings are confirmed at checkout.
Lumens:
Up to 21,165 lm
Wattage:
150W / 120W / 100W / 80W / 70W
Voltage:
120-277V AC
Dimming:
0-10V
Location:
Wet Location
Warranty:
5-Year
LED post top light: 150W

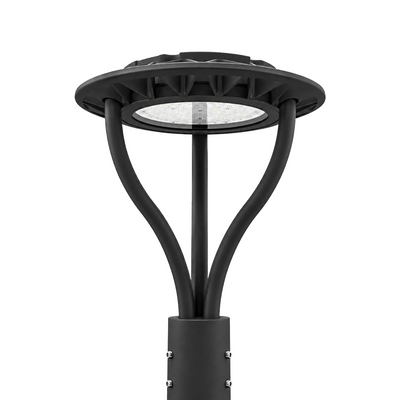

Black 60/50/40/30/20W selectable LED post top light with circular downlight head LED post top lights illuminating outdoor walkways with 0-10V dimming
60W
60W
Black 150/120/100/80/70W selectable LED post top light with circular downlight head High-output LED post top lights illuminating outdoor walkways with 0-10V dimming
150W
150W
Pack Size: 1-Pack

Error product group when enable variant picker

Same-Day Dispatch In-stock orders on business days
Free standard shipping Eligible orders US$150+. Exclusions apply. Shipping policy
30-Day Returns Returns accepted within 30 days
5-Year Warranty Reliable product coverage
150/120/100/80/70W Selectable LED Post Top Light, 3CCT, Photocell
150/120/100/80/70W Selectable LED Post Top Light, 3CCT, Photocell 1-Pack
Total for selected quantity Sale price $259.99
0

Specifications

Lumens Up to 21,165 lm
Wattage 150W, 120W, 100W, 80W, 70W
Voltage 120-277V AC
Dimming 0-10V
Operating Temperature -40°F to 113°F
Color Temperature 3000K, 4000K, 5000K
Location Rating Wet Location
Mounting Type 3 in. Pole Tenon Mount
Product Dimensions Ø14.23 in. × 19.23 in. H
Certifications UL Listed FCC Compliant RoHS Compliant 5‑Year Warranty
Rated Life >50,000 Hours
Warranty 5-Year
Wattage Selectable Yes
CCT Selectable Yes
finish Black
housing material Die-Cast Aluminum
photocell included Yes
pole tenon diameter 3 in.

Downloads

Download Spec Sheet

High-Output Selectable LED Post Top Light

For larger outdoor pedestrian and open areas, this LED post top light offers five field-selectable wattage settings from 70W to 150W and up to 21,165 lumens at the highest setting. Its selectable 3000K, 4000K and 5000K options let installers align the light appearance with site requirements.

The black die-cast aluminum luminaire mounts on a compatible 3-inch pole tenon. An included photocell supports dusk-to-dawn control, while 0-10V leads allow connection to compatible commercial dimming systems.

70W–150W SelectableFive output levels in one housing.
Up to 21,165 LumensRated maximum light output.
3000K–5000KThree selectable color temperatures.
Dusk-to-DawnPhotocell included with this offer.

Field-Selectable Power and CCT

Set 150W, 120W, 100W, 80W or 70W and select the project color temperature. Lower wattage settings are configuration options, not separate lamp purchases.

3000K4000K5000K
Power down before opening the selector compartment; per-setting lumen values require matching test data.

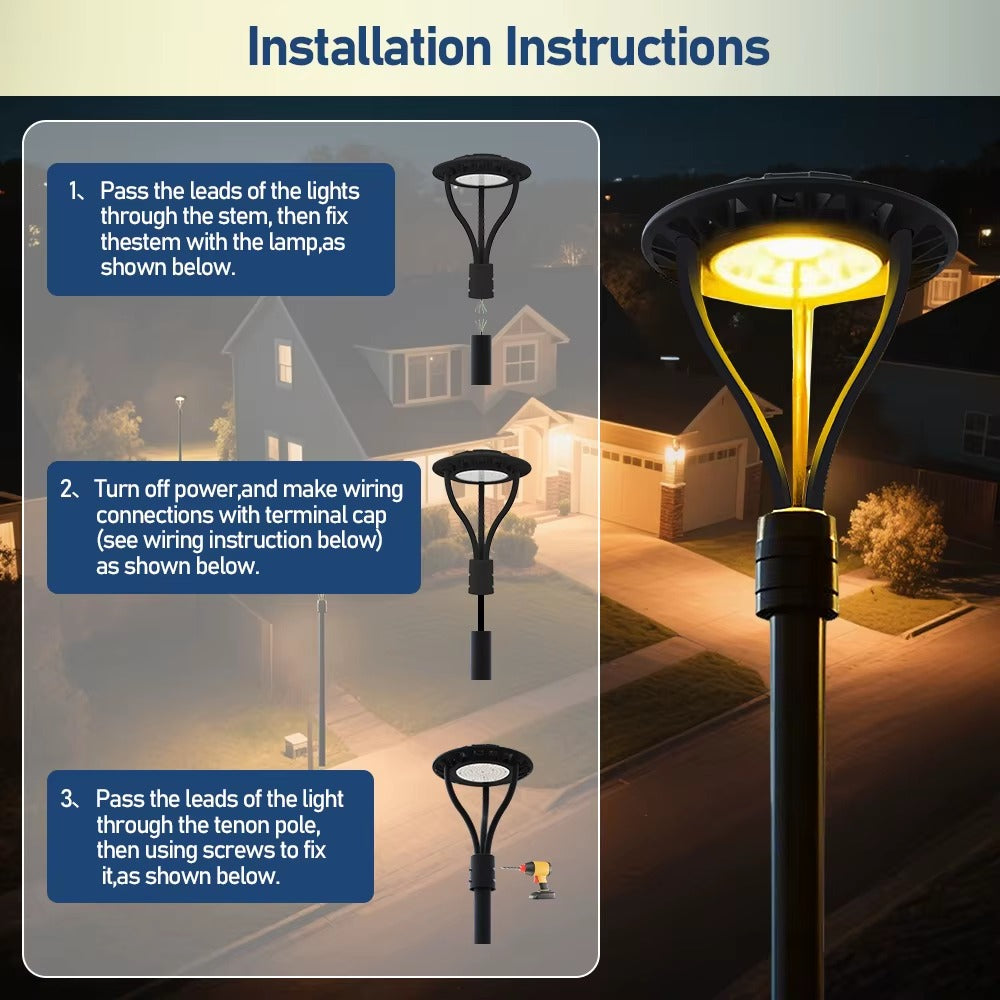

Pole Mounting and Lighting Control

3-Inch Tenon Fit

Route supply and control leads through the stem and attach to a compatible pole tenon using the shown fasteners.

Automatic or Controlled Operation

Position the included photocell where daylight is detectable. Connect 0-10V control only to a compatible dimmer.

Project-Ready Features

  • Commercial outdoor use: Suitable for wet locations.
  • Black housing: Powder-coated, die-cast aluminum.
  • Supply: Sale configuration is 120-277V AC.
  • Service life: Published rating exceeds 50,000 hours.

Fit and Compatibility

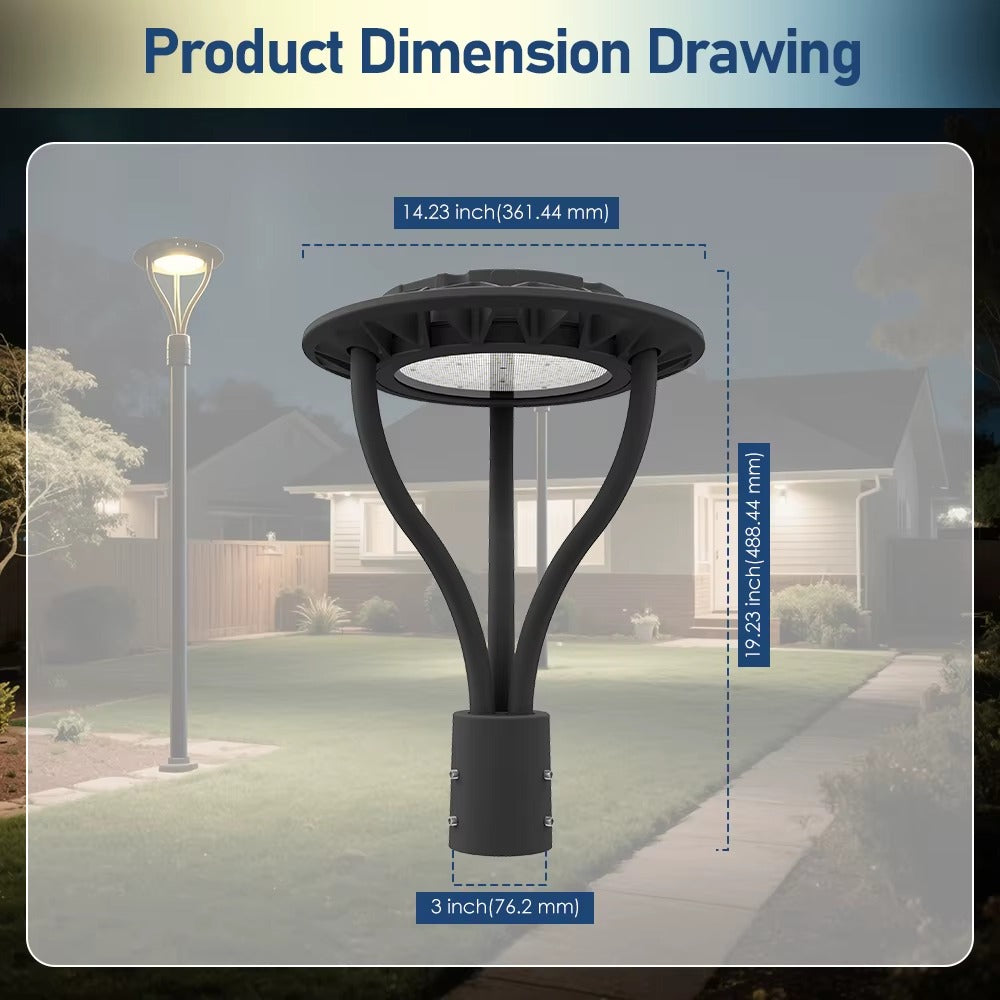

Size

Approximately 14.23 inches in diameter and 19.23 inches high.

Installation Planning

Confirm pole loading, electrical supply and dimmer/control wiring for the actual installation.

The pole is not listed as included; use the current model wiring diagram and local requirements.

Frequently Asked Questions About This Product

Does this fixture include a photocell?

Yes. The photocell is included in this orderable configuration; an optional occupancy sensor is not included.

Yes. 150W, 120W, 100W, 80W and 70W and 3000K, 4000K or 5000K are field-selectable. Disconnect power and follow the installation instructions before changing settings.

This orderable configuration uses 120–277V AC and supports compatible 0–10V dimming. Alternative voltage versions mentioned in generic series literature are not included in this offer.

A mounting pole is not listed as included. Confirm a compatible 3-inch pole tenon, mechanical capacity and local installation requirements before ordering.

1-Pack contains one fixture, 2-Pack contains two fixtures, and 4-Pack contains four fixtures. Wattage and CCT settings are not additional fixtures.
